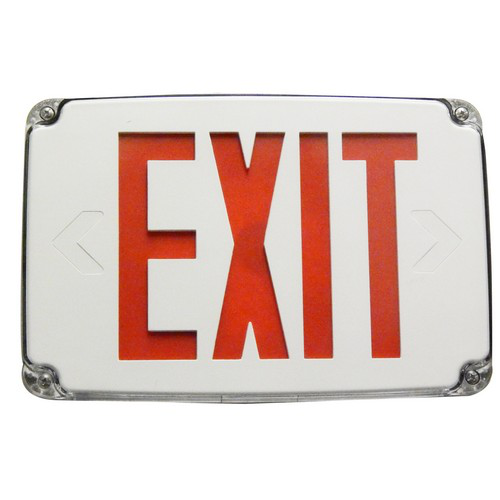

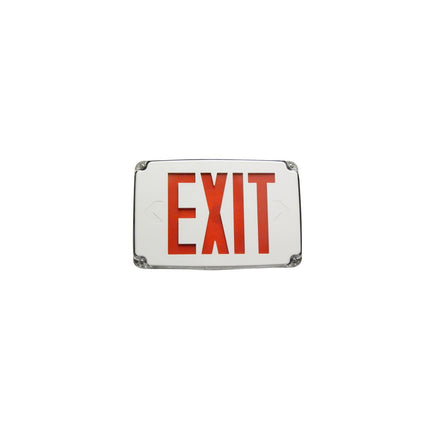

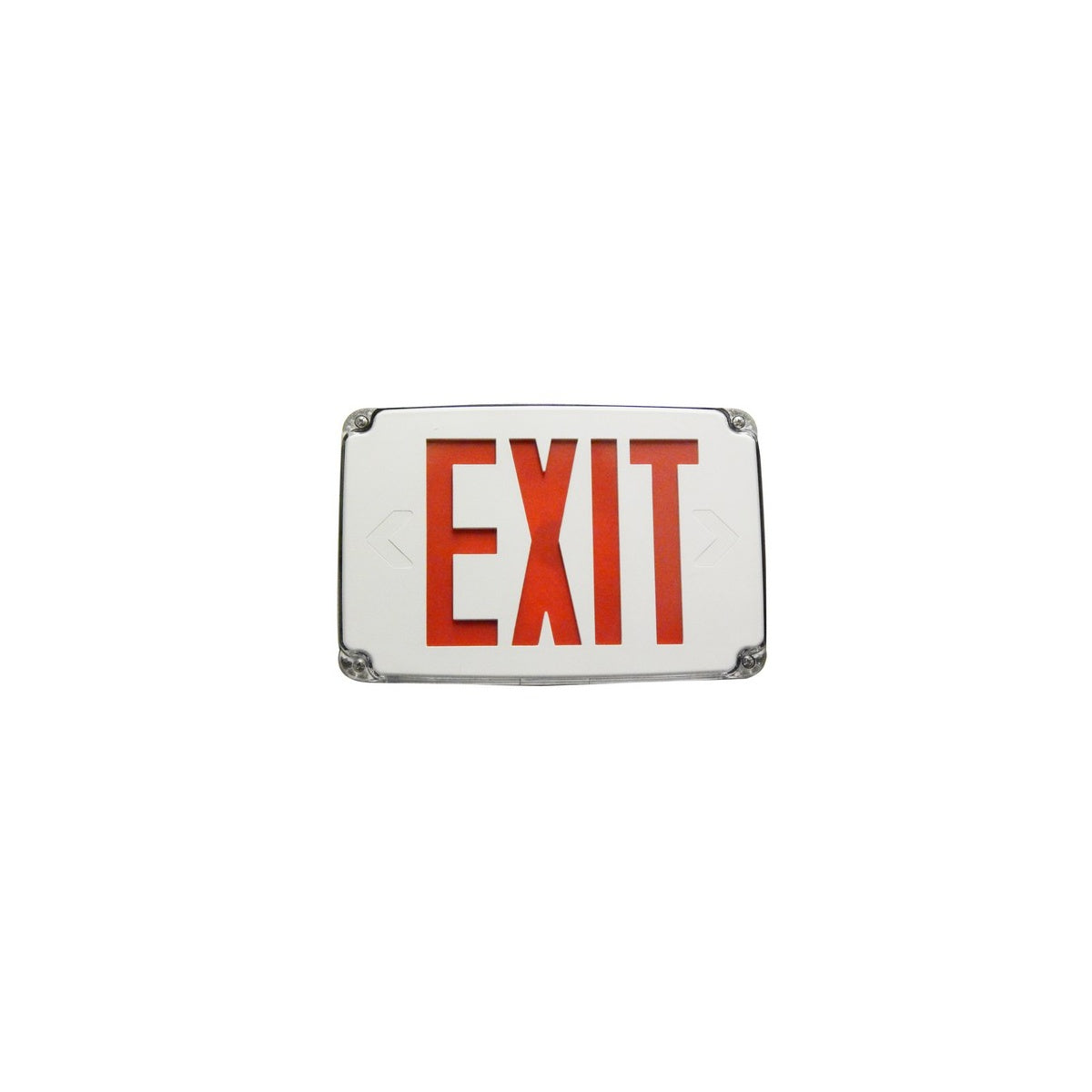

Compact Cold Weather & Wet Location LED Exit Sign Battery Backup Red LED White Housing

This LED exit sign is designed for outdoor cold weather and wet location applications, providing reliable emergency illumination with battery backup. It is suitable for electrical distributors and lighting solutions providers requiring durable, code-compliant exit signage for commercial and industrial environments.

Specifications

• Voltage: 120/277
• Input Current: 0.025A @ 120V; 0.011A @ 277V
• Input Watts: 2.7W @ 120V; 2.7W @ 277V
• Battery: Rechargeable NiCad, 4.8V 700mAh
• Housing Color: White
• Height: 2.5 in
• Dimensions: Length 12.5 in, Height 8.5 in, Depth 2.5 in
• Lens Material: Clear Polycarbonate
• Mounting: Universal Mount Canopy - Top, End, or Wall Mount
• Product Weight: 6 lbs

Features

• Outdoor wet location and cold weather rated (-4¬∞F to +122¬∞F)
• Red LED legend with EZ snap-out chevron directional indicators
• Dual voltage operation: 120/277 Volt
• Charge rate/power ‚ÄúON‚Äù LED indicator light and push-to-test switch for code compliance
• Internal solid-state transfer switch for automatic battery connection during power outage
• Fully automatic dual-rate charger recharges battery within 24 hours
• Flame retardant, UV-stabilized white polycarbonate housing with engineering grade silicone gasketing
• Top and side knockouts provided for conduit feed applications
• Meets UL 924, NFPA 101 Life Safety Code, NEC, and OSHA codes
• UL 924 listed for wet locations

Downloads & Links

• Spec Sheet
