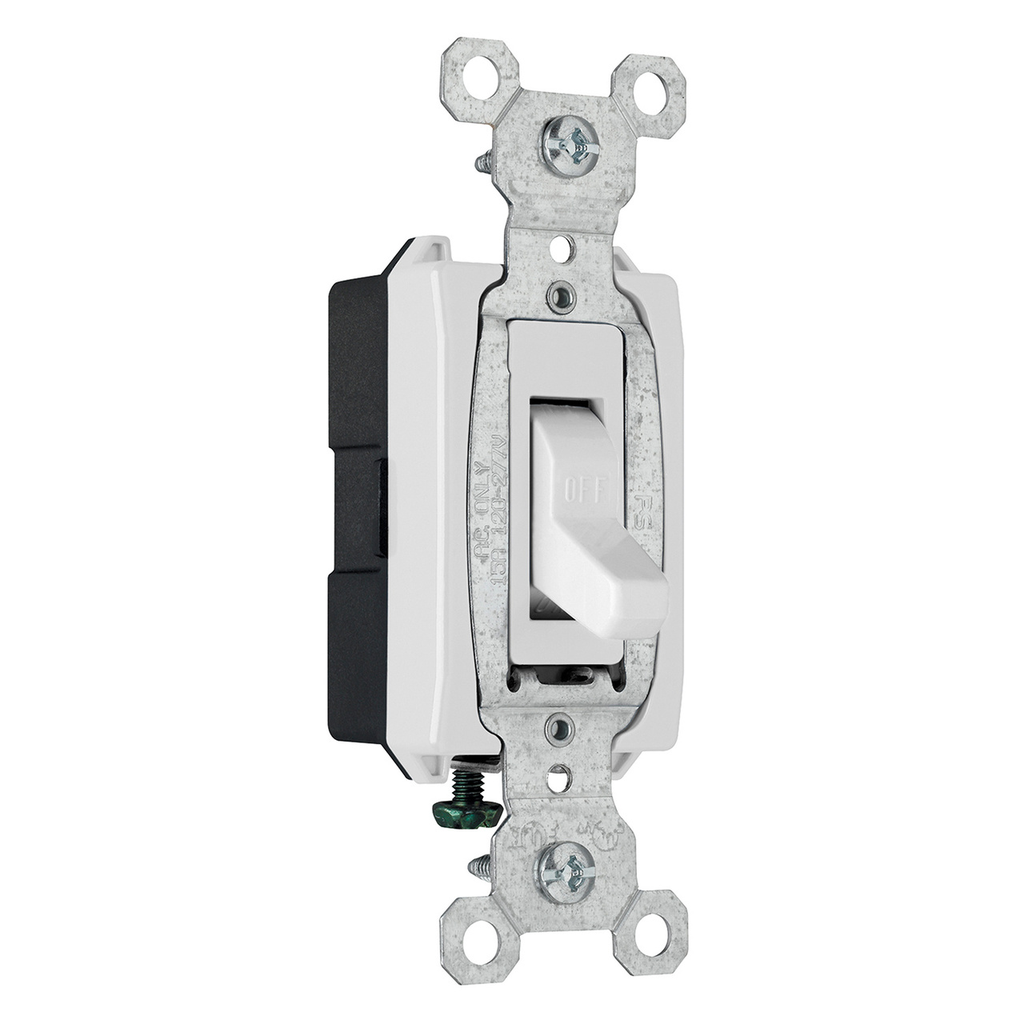

Commerical Specification Grade Switches, White - Commercial Grade Electrical Switch

This commercial 1-pole switch is designed for reliable use in commercial electrical applications. It features side-wire connections and is rated for 15 amps at 120/277 volts AC, making it suitable for lighting and general electrical control in commercial environments. Ideal for electrical distributors and lighting solutions providers, this switch is built to meet rigorous performance standards and ensure long service life.

Specifications

• Application: Commercial
• Amperage Rating: 15 Amp
• Contact Rating: 15 Amp, 120/277 Vac
• Number of Poles: Single Pole
• Action: Single Pole
• Mounting: Wall
• Enclosure Material: Nylon
• Insulation: Bare
• Color: White
• Height: 3.281 in
• Width: 1.32 in
• Product Weight: 0.1700 lbs
• Country of Origin: Mexico
• Manufacturer: Pass & Seymour
• Manufacturer Part Number: CS15AC1W

Features

• Commercial ruggedness with traditional side wire design
• High-strength polycarbonate toggle for durability
• Single-piece brass alloy contact arm to minimize contact bounce
• Heavy-gauge steel strap for structural integrity
• Fast make and positive break action to reduce arcing
• Glass-reinforced nylon back body for strength
• Shallow design for easier installation
• Side wire compatible with #14 – #10 AWG copper or copper-clad wire
• Locking support to resist face and back body separation
• Oversized silver-alloy contacts for long life and improved heat dissipation
