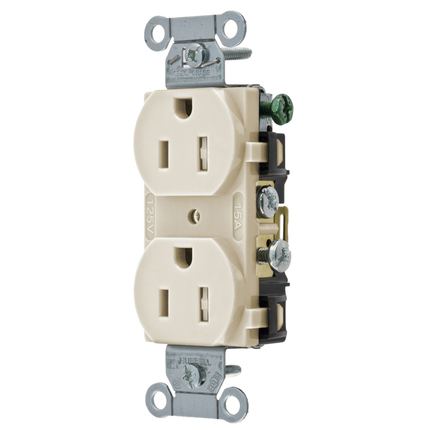

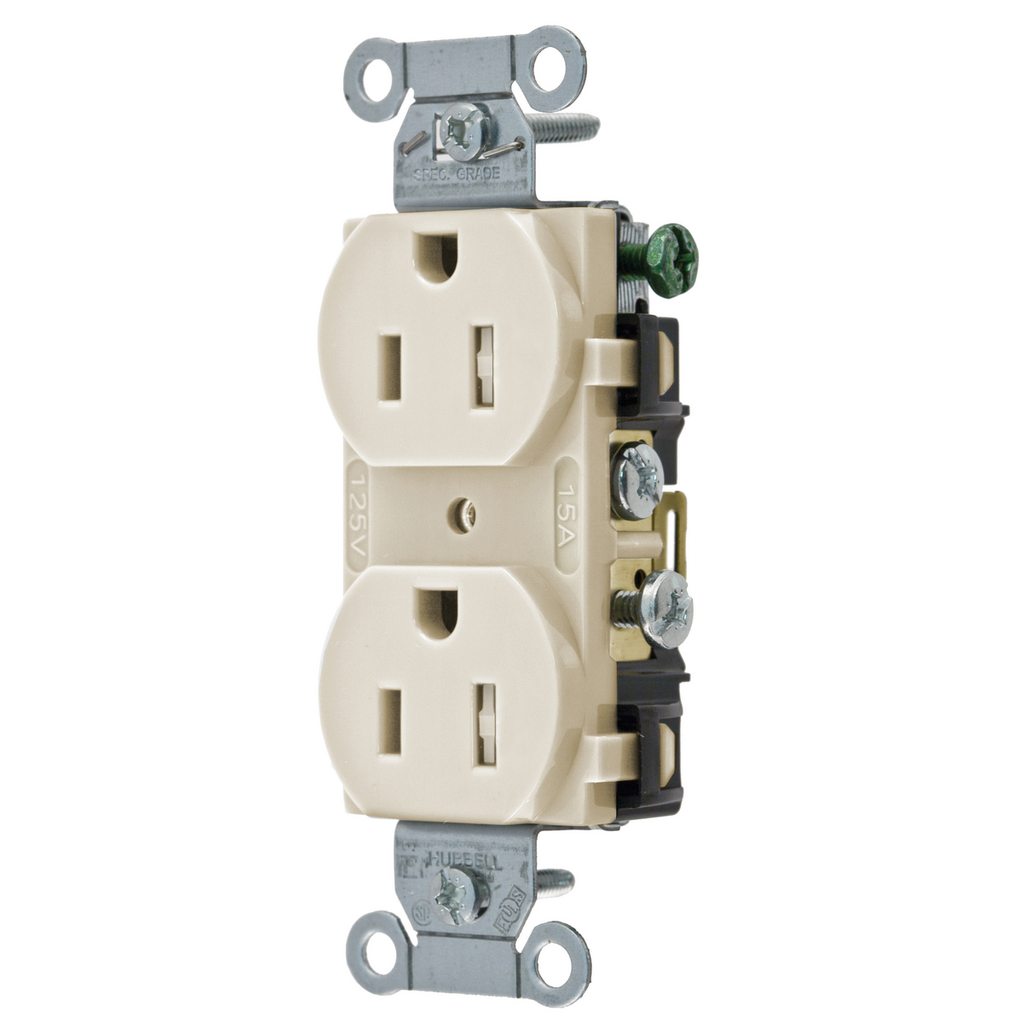

Commercial Specification Grade Duplex Receptacles - Tamper-Resistant Electrical Distributor Solution

This Commercial Specification Grade Duplex Receptacle by Hubbell Wiring Device-Kellems is designed for reliable electrical distribution in commercial environments. It features a tamper-resistant mechanism with patented Cam Action Technology, ensuring smooth and secure plug insertion while meeting safety codes for indoor dry applications. Suitable for use by electrical distributors and lighting solutions providers, this 15A, 125V, 2-pole, 3-wire grounding receptacle supports standard NEMA 5-15R plugs and is crafted from durable nylon in an almond color.

Specifications

• Application: Commercial Specification Grade
• Amperage Rating: 15 A
• Current: 15 amperes
• Voltage: 125V
• NEMA Rating: 5-15R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Number of Phases: 1
• Material: Nylon
• Color: Almond
• Dimensions (L x W x H): 4.2 in x 1.6 in x 1.2 in
• Dielectric Strength: Withstands 2,000V minimum
• Operating Temperature: -40 degrees Celsius
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Manufacturer Part #: CR15ALTR

Features

• Patented Cam Action Mechanism for smooth, low-friction plug insertion
• Tamper-Resistant design compliant with NEC® 2014 code for child safety
• Commercial grade construction suitable for demanding electrical distributor and switchgear supplier applications
• Durable nylon face resists wear and maintains appearance
• Back and side wired for flexible installation

Downloads & Links

• Brochure - Tamper-Resistant Brochure
• Brochure - Tamper-Resistant Receptacles for Education
• Sell Sheet - Industry‚Äôs Best Tamper Resistant Receptacle
• Wiring_Catalog_A24_CatPage
• Brochure - Tamper-Resistant Receptacles for Daycare
• Brochure - Marine Full Line Catalog
• Wiring CR15ALTR Specification Sheet
• Brochure - Tamper-Resistant Receptacles for Assisted Living
• Brochure - Commercial Tamper-Resistant Specification Grade Duplex Receptacles
• Brochure - Tamper-Resistant Receptacles for Hospitality
• WIRING_M10512_SALESDRAWING
