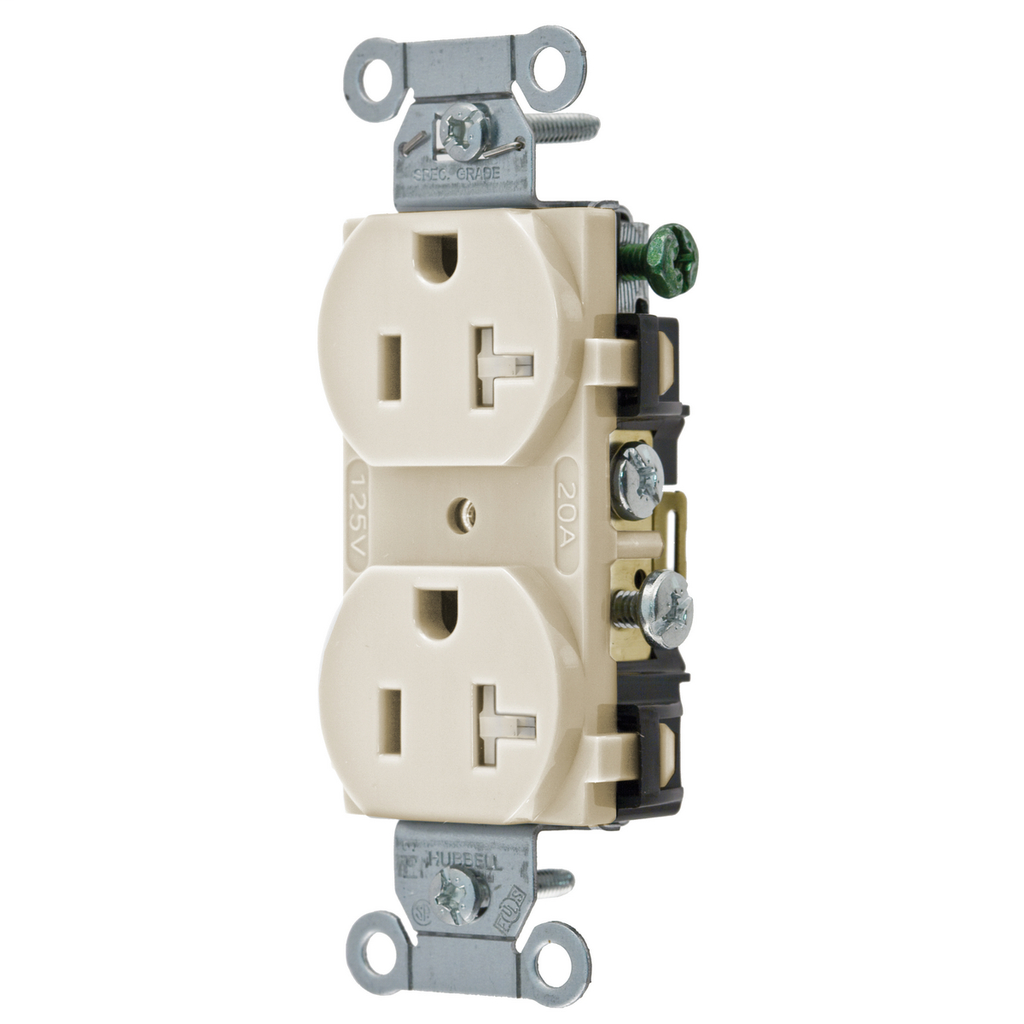

Commercial Specification Grade Duplex Receptacles - Tamper-Resistant Electrical Outlet

The Commercial Specification Grade Duplex Receptacles by Hubbell Wiring Device-Kellems provide reliable, tamper-resistant electrical outlets designed for commercial applications. These 2-pole, 3-wire grounding receptacles support 20 amperes at 125 volts and comply with NEMA 5-20R standards. Ideal for electrical distributors and lighting solutions providers, these receptacles are constructed with durable nylon material and feature Hubbell’s patented cam action mechanism for smooth plug insertion, minimizing difficulties caused by problematic plugs. Suitable for indoor dry environments, they meet commercial specification grade requirements and enhance safety in various commercial settings.

Specifications

• Application: Commercial Specification Grade
• Amperage: 20 amperes
• Current: 20 amperes
• NEMA Rating: 5-20R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Number of Phases: 1
• Material: Nylon
• Color: Almond
• Dimensions (W x H x L): 1.14 in x 3.28 in x 1.32 in
• Dielectric Strength: Withstands 2,000V minimum
• Operating Temperature: -40 degrees Celsius
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: CR20ALTR
• Product Weight: 0.2000 lbs

Features

• Tamper-Resistant design with patented cam action mechanism for smoother, more reliable plug insertion
• Meets commercial specification grade standards for durability and performance
• Compatible with 20A 125V, 2-pole, 3-wire grounding applications
• Constructed from durable nylon for long-lasting use
• Designed for indoor dry environments, enhancing safety and reliability
• Complies with NEC® 2014 code for tamper-resistant receptacles in commercial installations
