Features

• Durable high-carbon steel cutting blades automatically adjust to different cable diameters

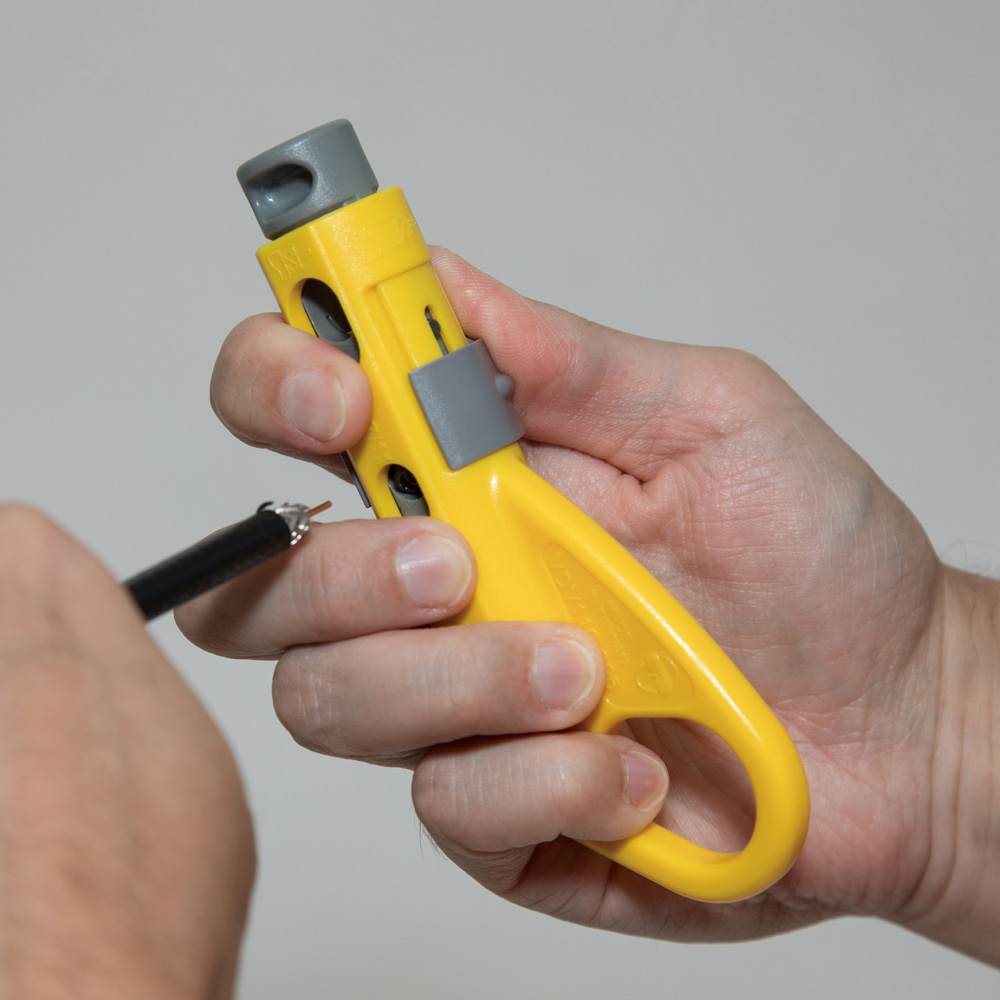

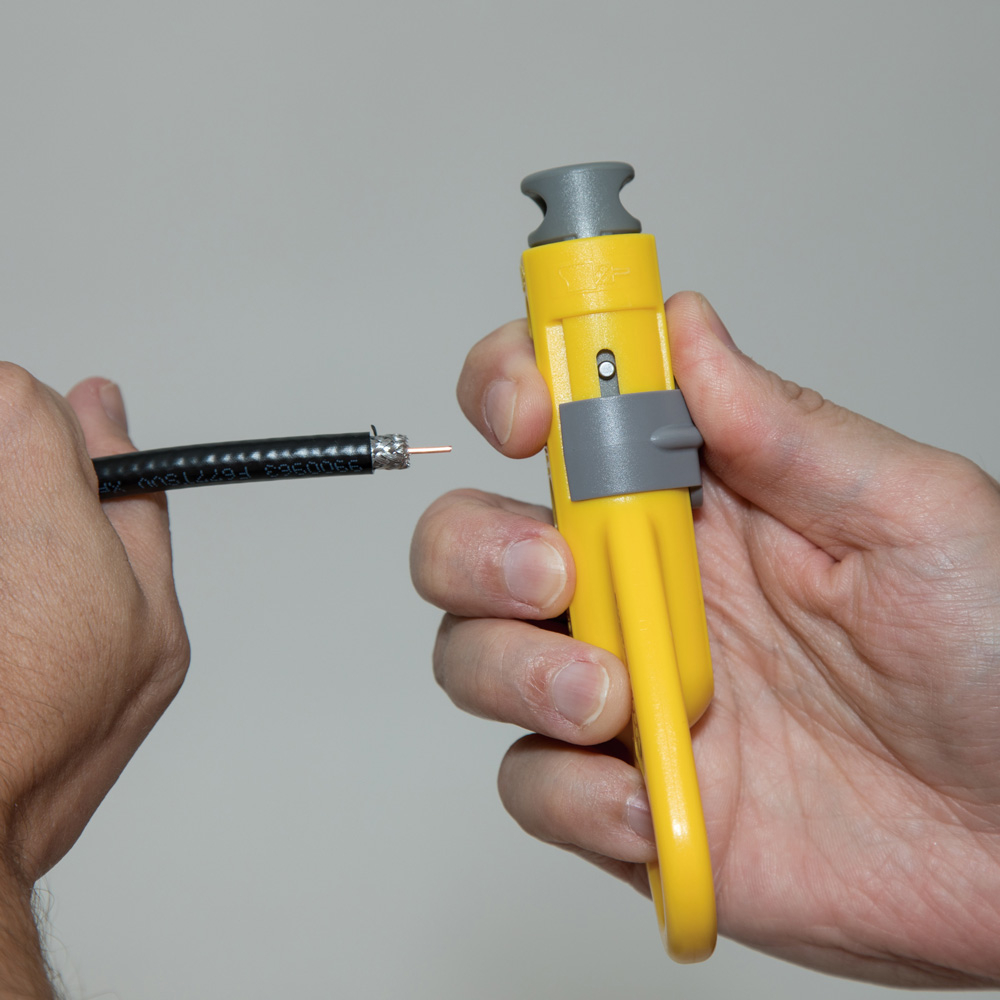

• Complete 2-level cable prep/stripping in one step to 5/16-Inch and 1/4-Inch (7.9 mm and 6.4 mm)

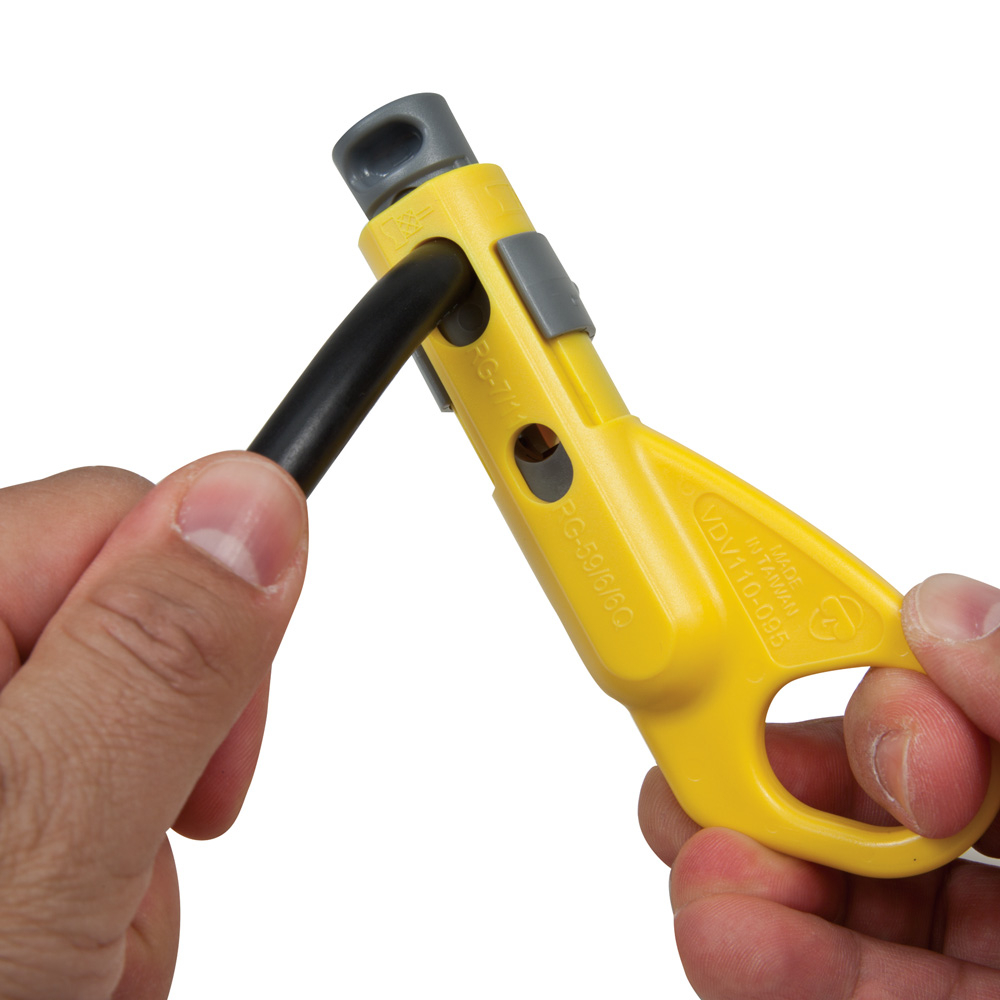

• It preps/strips five different series of RG cables including - RG59, RG6, RG6Q, RG11 and RG7
• Easy debris clean-out

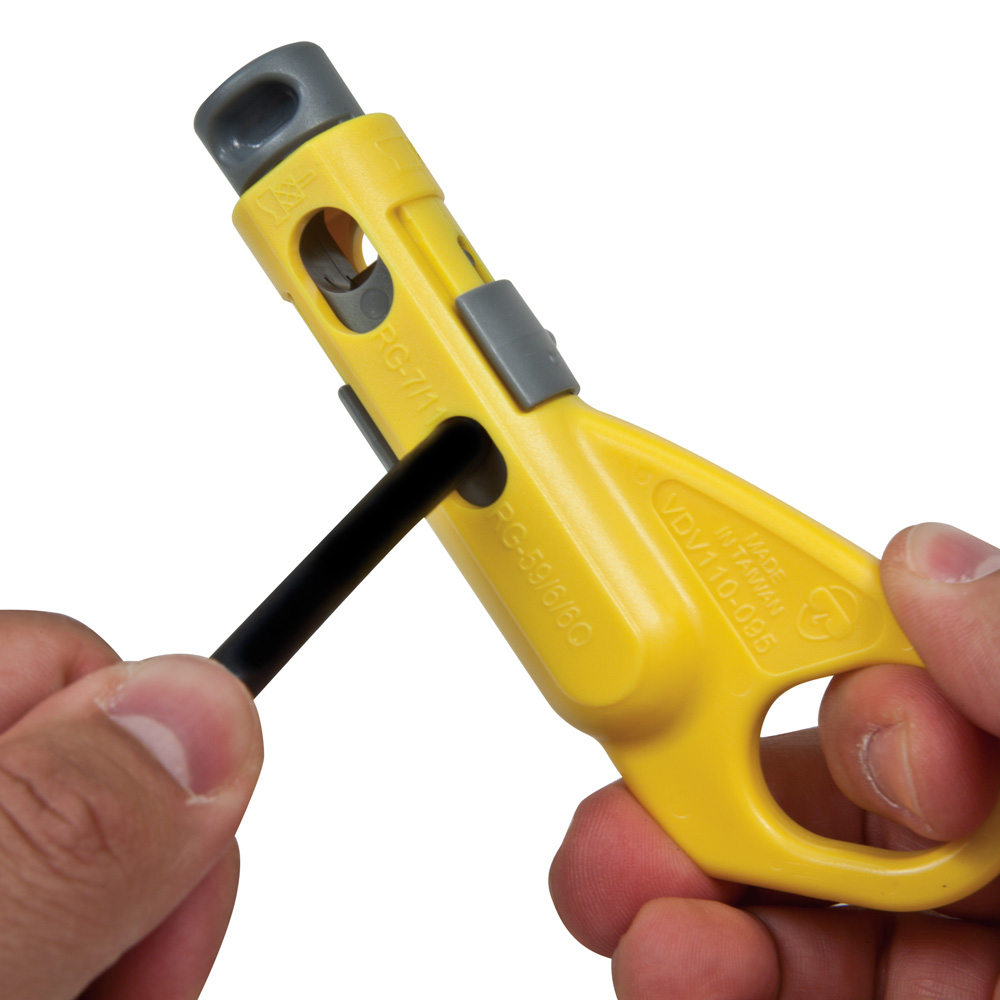

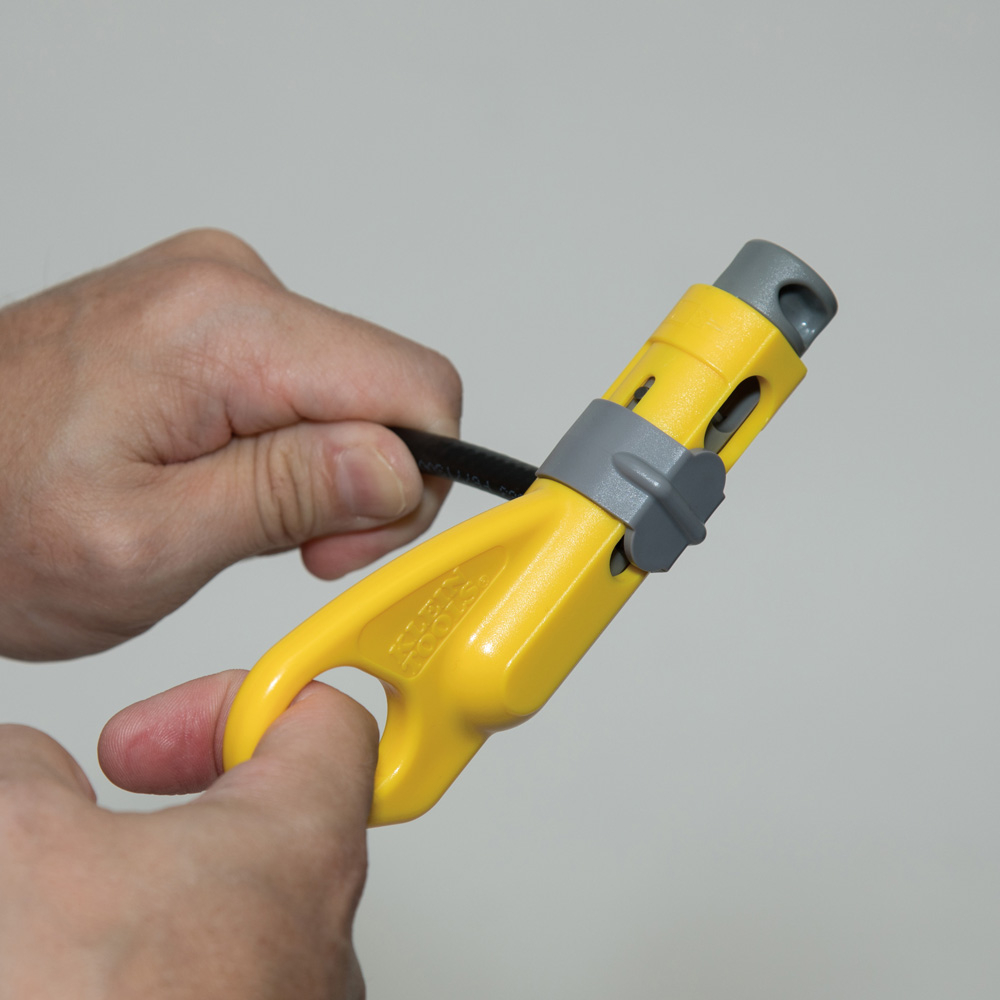

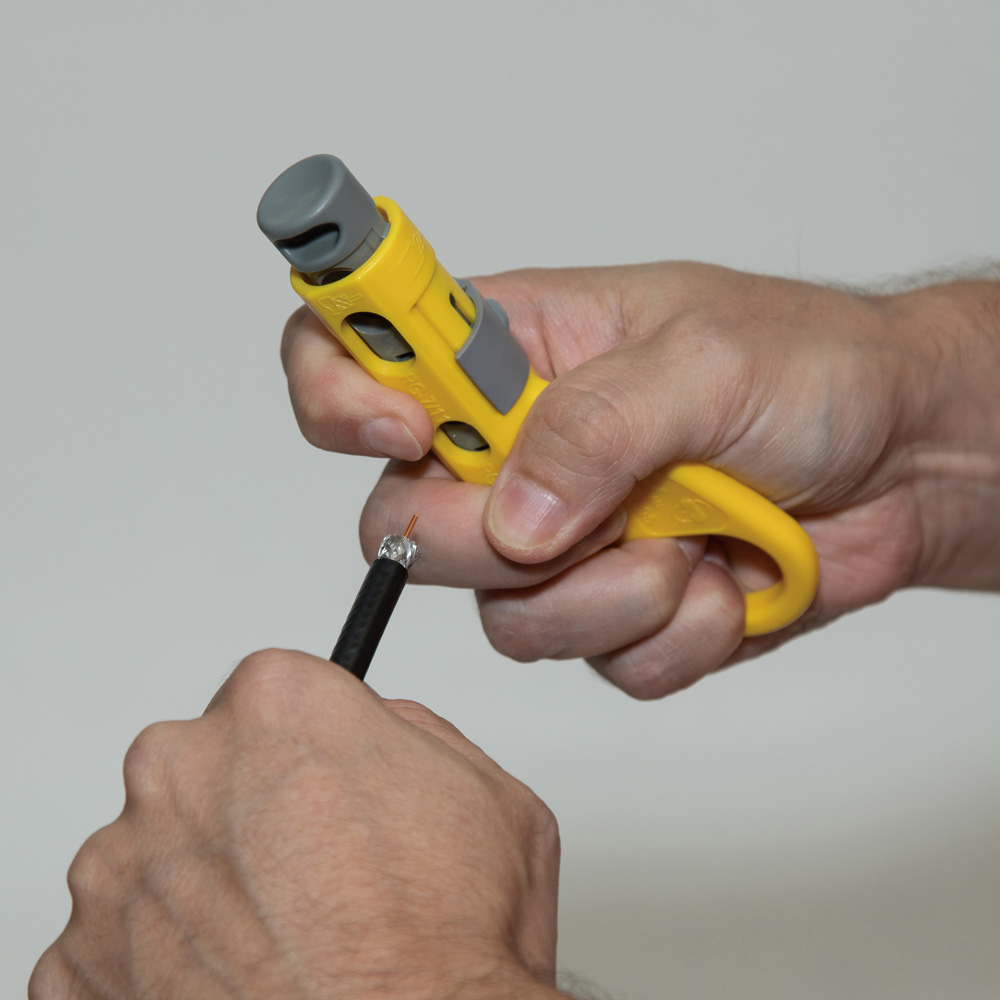

• Finger loop facilitates easy, controlled rotation
• Perfect for the data installer who works with utility cable as well standard cable

Warnings

• Read carefully and understand instructions before using this tool.
• Always wear approved eye protection.
• NOT insulated. Will NOT protect against electrical shock.
• Never use on or near live electrical circuits.

Specifications

• Strip Dimensions: 0.3125" and 0.250" (7.94 and 6.35 mm)
• Application: Cable Preparation
• Handle Color: Yellow/Gray
• Levels: 2
• Overall Length: 5.25" (13.3 cm)

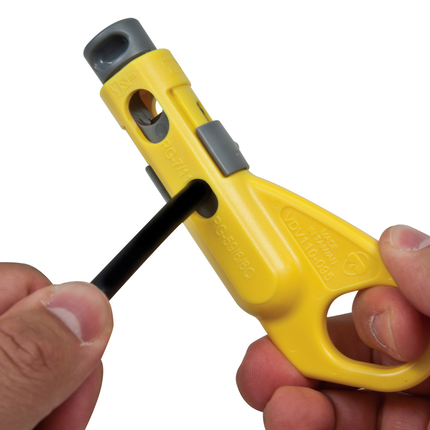

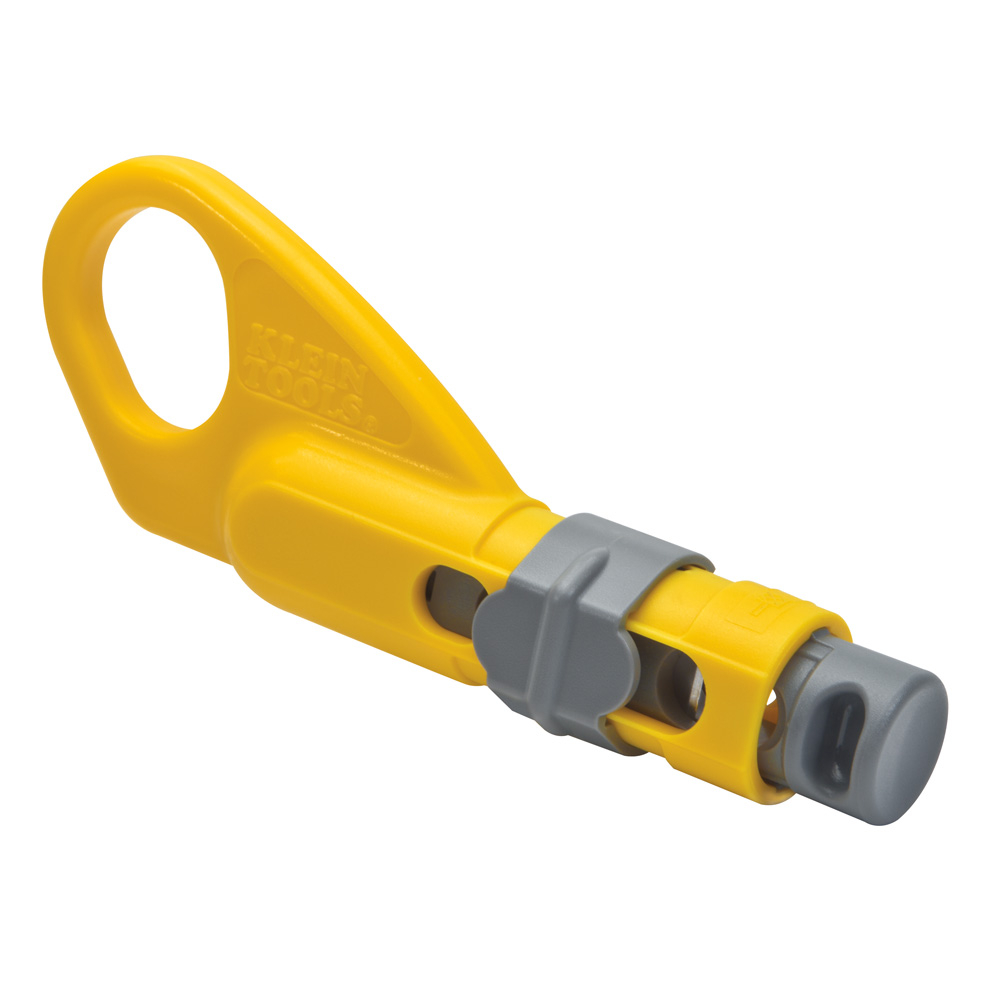

• Type: Radial Stripper
• Cable Type: RG59, RG6/6Q, RG7, RG11
• Height: 1.1250 in
• Width: 3.4920 in
• Depth: 5.2500 in
• Weight: 0.0940 lbs
