CN35 or A202 Enclosed Lighting Contactor – Lighting Solutions

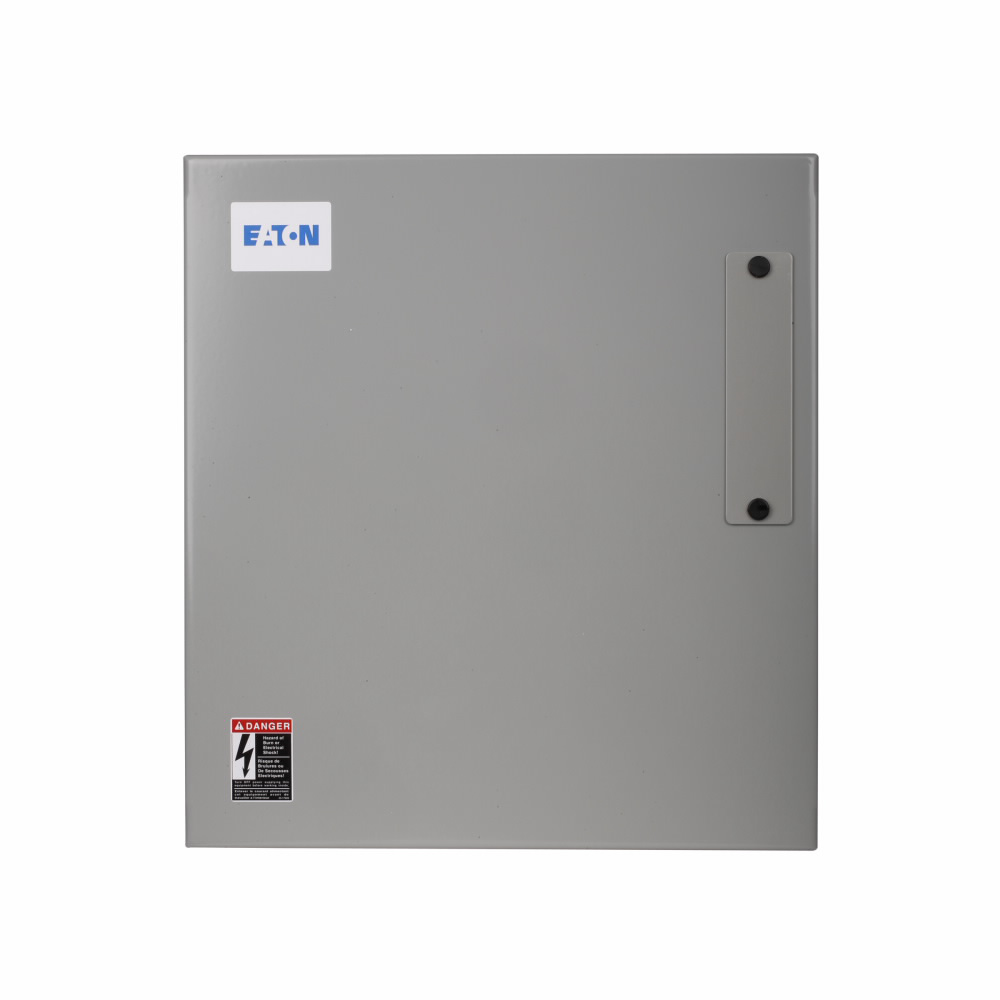

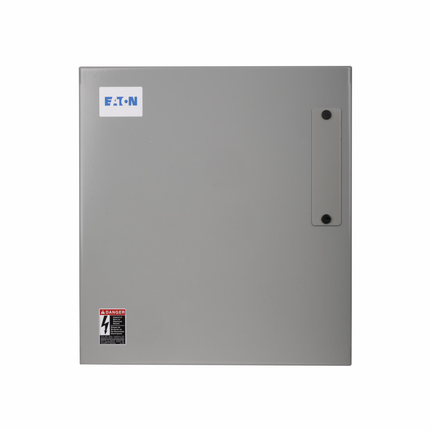

The CN35 or A202 Enclosed Lighting Contactor by Eaton is designed for reliable lighting control applications in commercial and industrial environments. It is a non-combination, electrically held lighting contactor rated for 20 amperes with a three-pole, 45 mm frame. The device features a painted steel NEMA 3R enclosure suitable for outdoor use, providing protection against rain, sleet, and external ice formation. The contactor coil operates at 110V/50 Hz or 120V/60 Hz, making it compatible with common power systems. Eaton’s lighting contactor is ideal for electrical distributors and switchgear suppliers seeking robust and versatile lighting solutions that support tungsten, fluorescent, HID, and non-motor AC resistive loads.

Specifications

• Manufacturer: Eaton
• Manufacturer Part #: ECL03B2A3A
• Amperage: 20 amperes
• Frame: 45 millimeters
• Coil Voltage: 120 volts
• Enclosure Type: NEMA 3R
• Enclosure Material: Painted Steel
• Dimensions (W x H x L): 6.87 in x 13.31 in x 9.84 in
• Product Weight: 16 lbs

Features

• Non-combination electrically held contactor for lighting control
• Three-pole configuration with a compact 45 mm frame
• Painted steel enclosure rated NEMA 3R for outdoor protection
• Designed for controlling tungsten, fluorescent, HID, and non-motor AC resistive loads
• Coil voltage compatible with 110V/50 Hz and 120V/60 Hz power supplies
• Robust construction for reliable operation in commercial and industrial lighting applications
• Suitable for use by electrical distributors and switchgear suppliers
