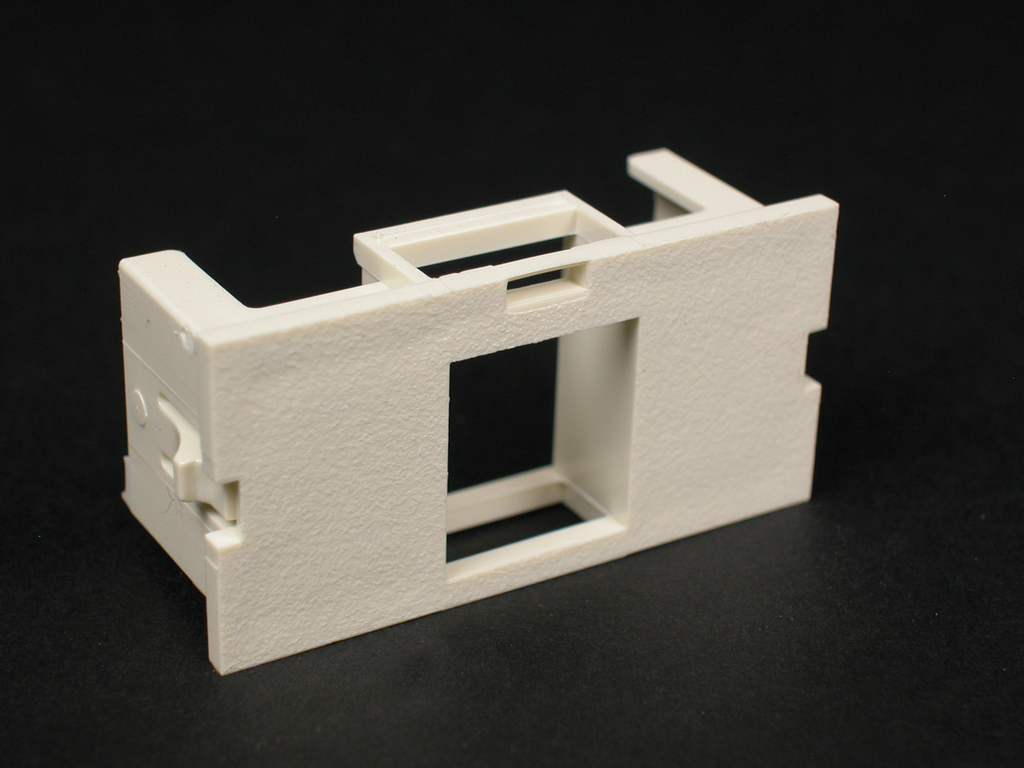

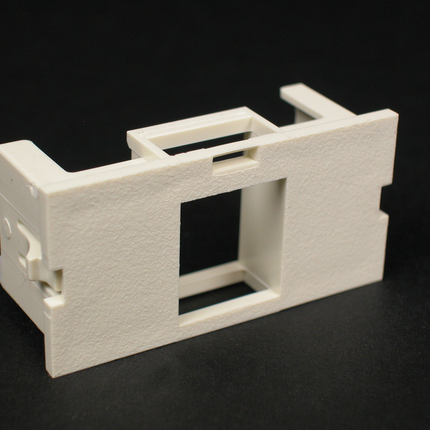

CM 2A Single Flushmount Unloaded Keystone Module - Communication Module

The CM 2A Single Flushmount Unloaded Keystone Module by Wiremold is designed to provide a flexible and aesthetically pleasing solution for connecting communication cabling at the point-of-use. It supports open system architecture by accepting a wide range of industry standard keystone jacks and is compatible with Wiremold wire and cable management systems. This module is ideal for electrical distributors and switchgear suppliers seeking reliable communication connectivity solutions.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: CM2-U1KEYA
• Product Weight: 0.0100 lbs
• Dimensions: Length 1.91 in, Width 0.935 in, Depth 0.695 in
• Country of Origin: United States
• Made in USA: Yes
• Order Minimum: 10 units
• UPC: 786776143072

Features

• Open system capabilities: Accepts keystone jacks with a latching area of 0.58" x 0.76" (14.7mm x 19.3mm), supporting devices from multiple manufacturers.
• Wire management compatible: Snaps securely into Wiremold communication ready device brackets featuring 2A openings for a clean, professional look.
• Installation and configuration ease: Front load snap-in design allows for quick installation and outlet configuration changes.
• UL Listed for safety compliance.
