CLWD-1/0-12-134 CU CMP 1/0 AWG 9/16-1-3/4 T U L CSA LONG BARREL WITH SIGHT
SKU: #407799
Part: #CLWD-1/0-12-134
UPC: 783669636833
CLWD-1/0-12-134 CU CMP 1/0 AWG 9/16-1-3/4 T U L CSA LONG BARREL WITH SIGHT
SKU: #407799
Part: #CLWD-1/0-12-134
UPC: 783669636833
Description

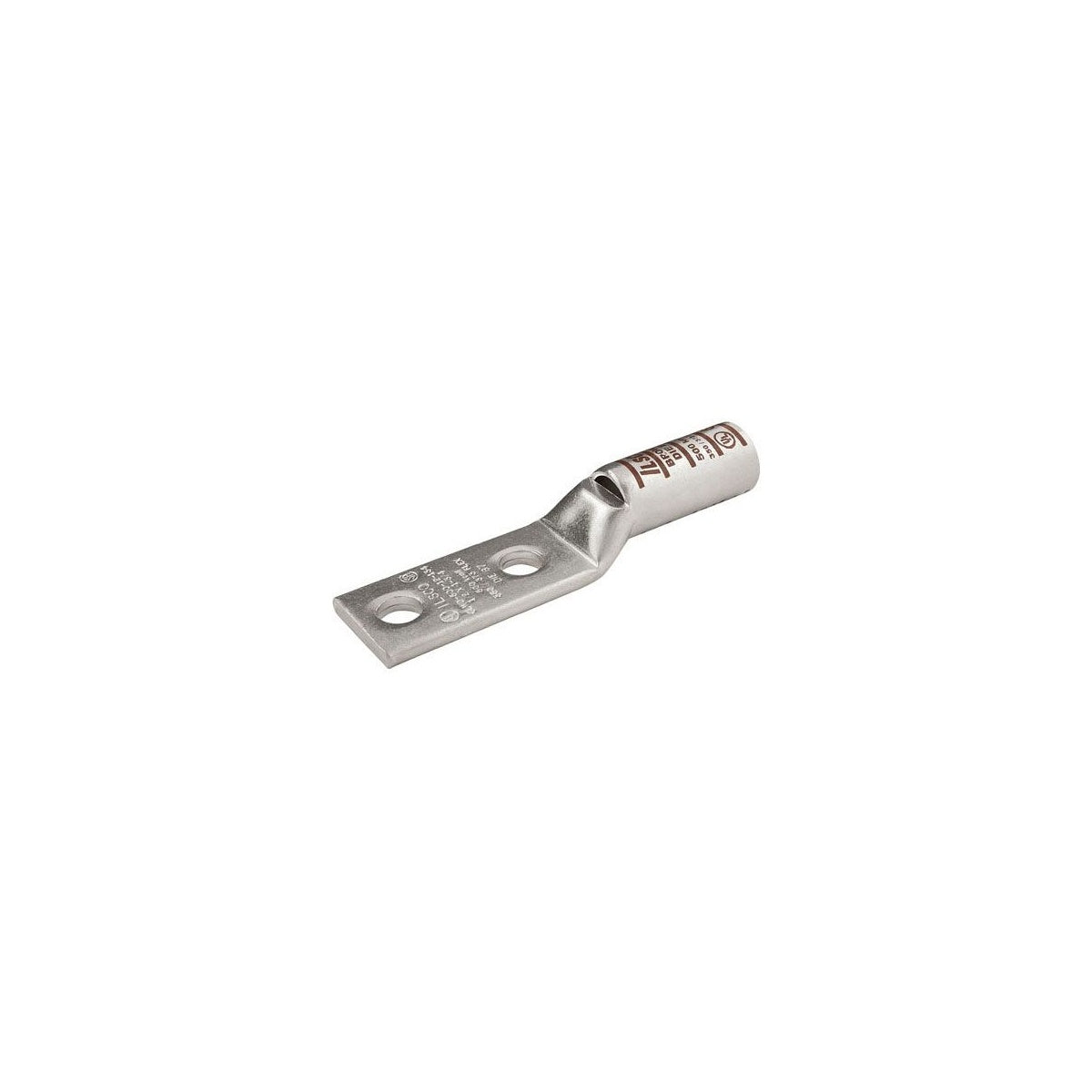

CLWD-1/0-12-134 CU CMP 1/0 AWG 9/16-1-3/4 T U L CSA LONG BARREL WITH SIGHT - Copper Compression Lug
The CLWD-1/0-12-134 is a SureCrimp copper compression lug designed for use with 1/0 AWG flexible copper conductors. This lug features a long barrel with a sight window and two mounting holes spaced 1-3/4 inches apart, accommodating 1/2 inch bolts. It is electro-tin plated to provide corrosion resistance and is suitable for electrical distribution, grounding, and bonding applications. Certified by UL and CSA, it meets industry standards for safety and performance, making it a reliable choice for electrical distributors and switchgear suppliers.
Specifications
- Manufacturer: ILSCO
- Conductor Size: 1/0 AWG
- Conductor Type: Flexible Copper
- Barrel Type: Long
- Barrel Marking: Ink
- Connection Type: Compression
- Number of Mounting Holes: 2
- Mounting Hole Spacing: 1.75 in (44.45 mm)
- Mounting Hole Diameter: 0.562 in (14.27 mm)
- Mounting Bolt/Stud Size: 1/2 in (12.7 mm)
- Sight Window: Yes
- Tang End Shape: Square
- Dimensions (Length x Width x Height): 4.856 in x 0.738 in x 0.55 in (123.34 mm x 18.75 mm x 13.97 mm)
- Inside Diameter: 0.39 in (9.91 mm)
- Outside Diameter: 0.515 in (13.08 mm)
- Barrel Length: 1.5 in (38.1 mm)
- Tang Thickness: 0.125 in (3.175 mm)
- Weight: 0.1176 lb (0.0534 kg)
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Material: Copper
- Connector Finish: Tin Plated
- Color Code: Pink
- UL File Number: E6207
- CSA File Number: LR-29601
- UL / CULUS Specification: UL 467 Listed
- CSA Standard: C22.2 No. 65-03
- Direct Burial: Yes
Features
- Manufactured from high strength seamless copper tubing
- Electro-tin plated for corrosion resistance
- Chamfered entry for easy conductor insertion
- Color coded for proper compression die identification
- UL Listed and CSA Certified for use with ILSCO and major competitor’s compression tools
- Rated for circuits up to 35 kV with proper high voltage spacing and insulation techniques
- Low contact resistance and excellent crimping characteristics
- Suitable for direct burial grounding and bonding applications
- Application versatility across a range of electrical distribution and grounding uses
