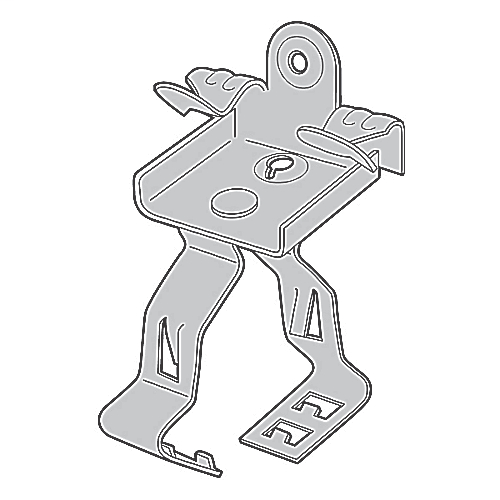

Clip, Flange-Mount Conduit – Steel City Flange Mount Conduit Clip

The Clip, Flange-Mount Conduit by Steel City is designed for secure attachment of 3/8 inch conduits and 14-2 through 12-3 MC/AC cables to flange mounts with thicknesses ranging from 1/8 inch to 1/4 inch. This steel conduit clip is suitable for electrical distributors and lighting solutions requiring reliable wire and cable management. It supports applications involving EMT, rigid, and flexible conduit installations, making it a practical component for switchgear suppliers and electrical contractors.

Specifications

• Material: Steel
• Conduit Size: 3/8 Inch
• Compatible Cable: 14-2 through 12-3 MC/AC Cable
• Flange Thickness: 1/8 Inch to 1/4 Inch
• Mounting Type: Flange Mount
• Manufacturer Part #: SSF-CC3/8-H1/4
• Manufacturer: Steel City
• UPC: 785991202236
• Carton Quantity: 25
• Box Quantity: 225
• Weight: 18 lbs (product weight)
• Standard: UL Listed (UL e160899)

Features

• Available with spring steel conduit clip, bottom mounted or side mounted
• Fits beam flanges from 1/8 inch to 3/4 inch thick
• Supports conduit sizes from 3/8 inch through 2 inch for EMT, rigid, and flexible conduit, as well as MC/AC cable
• Allows 360-degree pivot for flexible positioning
• Designed for easy installation with hammer and pliers
