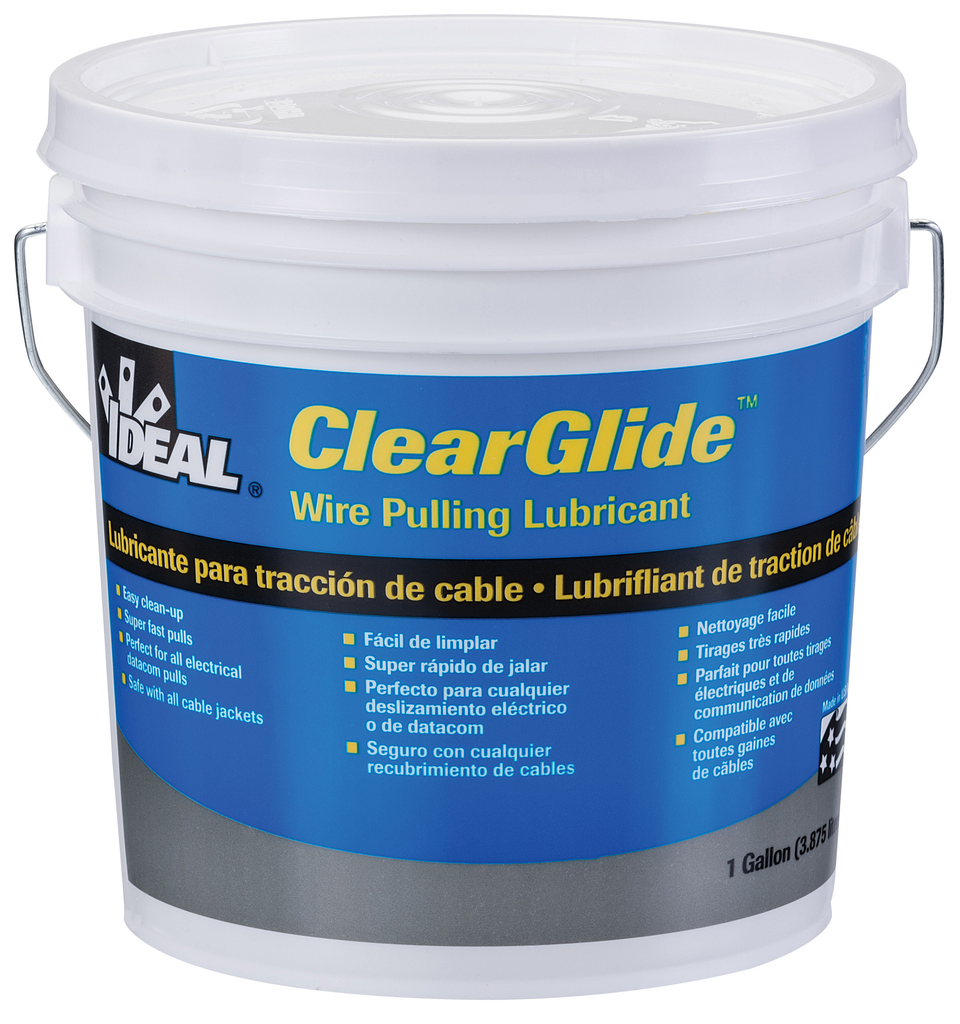

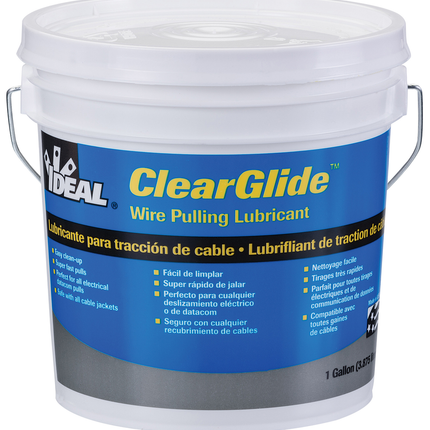

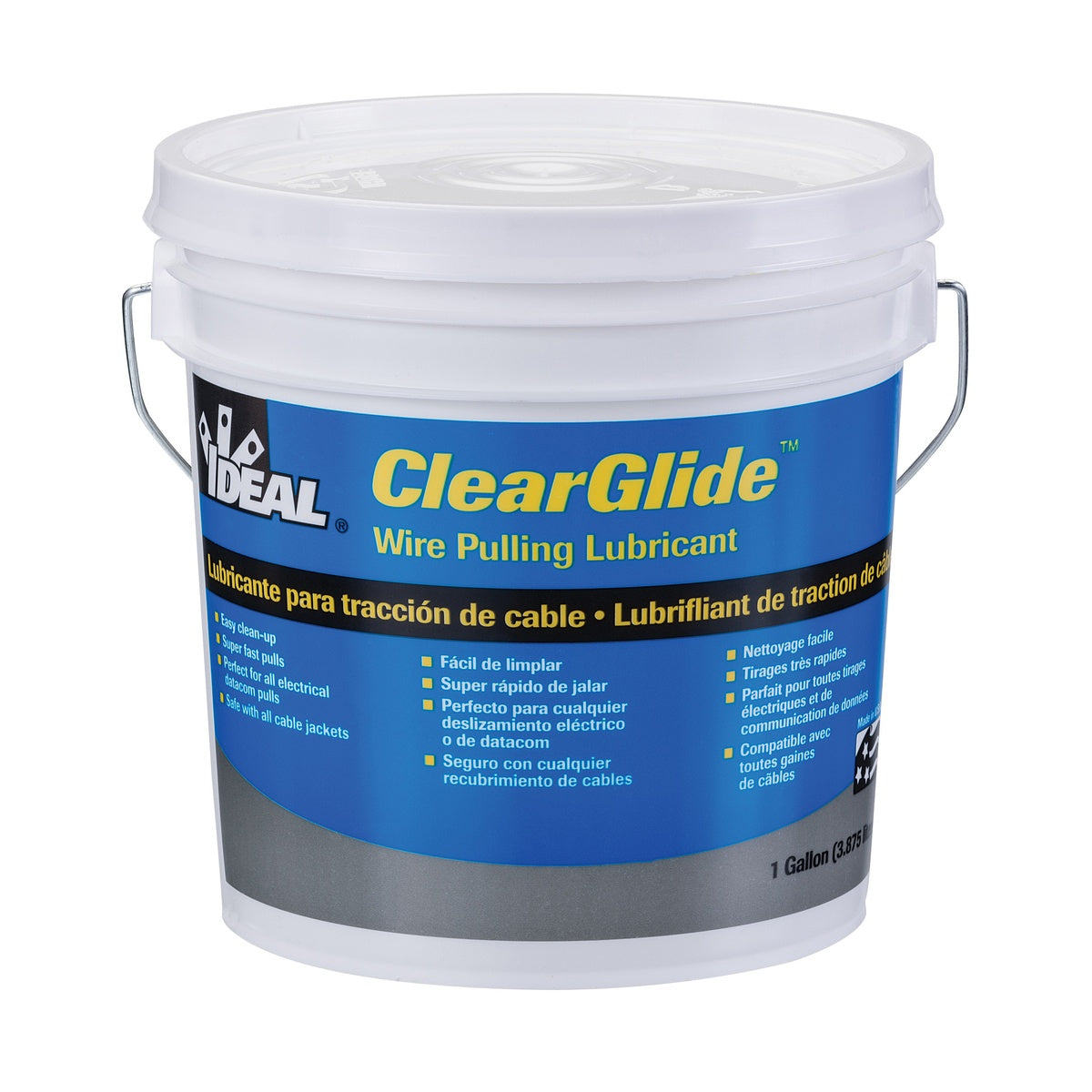

Clearglide® 1-Gallon Bucket Wire Pulling Lubricant

Clearglide® Wire Pulling Lubricant by IDEAL Industries is a polymer-based lubricant designed for wire pulling applications in electrical and datacom installations. It provides exceptional lubricity to facilitate fast and smooth cable pulls, suitable for use by electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers. The lubricant is clear and colorless, compatible with all cable types and jackets, and can be applied indoors or outdoors.

Specifications

• Application: For Wire Pulling
• Container: Pail (1-Gallon Bucket)
• Dimensions (L x W x H): 7.5 in x 7.5 in x 8 in
• Product Weight: 8.5750 lbs
• Working Temperature Range: 40 - 100 ¬∞F
• Manufacturer: IDEAL Industries
• Manufacturer Part Number: 31-381
• UPC: 783250348145
• Odor: Slight
• Physical State: Clear, colorless gel
• pH: 7.0 - 8.0
• Viscosity: 25,300 - 40,300 cps
• Relative Density: 1.09
• Solubility: Infinite in water
• Volatile Organic Compounds (VOC): 17.4 g/L (as packaged, minus water)
• Flash Point: None
• Evaporation Rate: Not available
• Stability: Chemically stable under normal conditions
• Safety Listing: UL Listed

Features

• Polymer-based formula suitable for all electrical and datacom cable types
• Provides extraordinary lubricity for super-fast wire pulls
• Clear and colorless lubricant safe for indoor and outdoor applications
• Controlled evaporation rate ideal for shorter cable runs
• Dries to a semi-fluid film that will not clog conduit
• Easy to apply by hand, brush, or pump
• Environmentally safe, non-toxic, non-flammable, and non-corrosive for user safety
• Quick and easy clean-up
• Compatible with all cable jackets
• Available in multiple container sizes including 1-qt squeeze bottle, 1-gallon bucket, 5-gallon bucket, and 55-gallon drum
