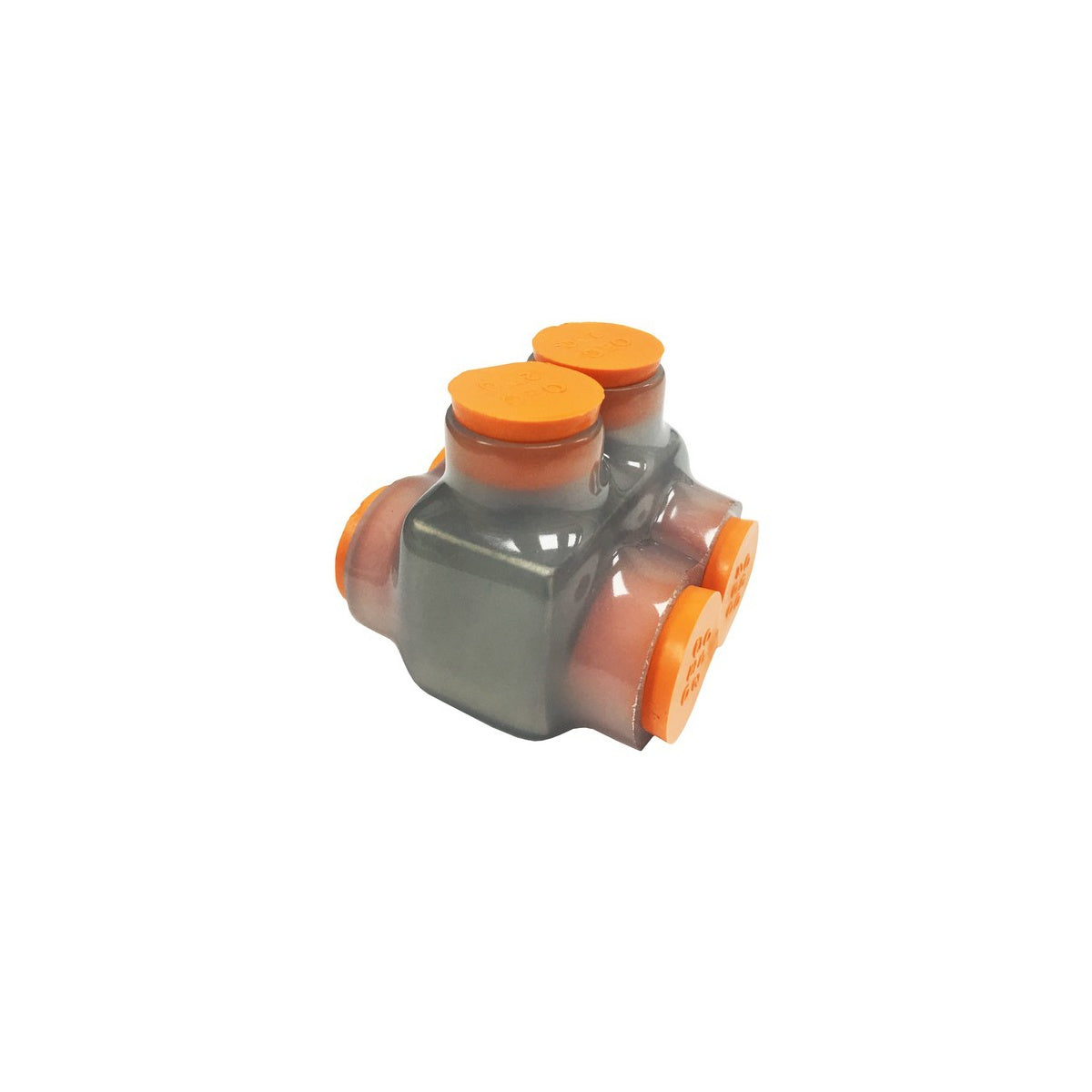

Clear Insulated Multi-Cable Connector - Electrical Power Connector

The Clear Insulated Multi-Cable Connector is designed for secure electrical terminations with dual entry ports, accommodating wire sizes from #4 to #14. Manufactured with 6061-T6 aluminum and clear insulation, this connector is suitable for applications requiring reliable wire and cable connections, making it a practical choice for electrical distributors and switchgear suppliers. It supports both copper and aluminum conductors and is rated for use with 90°C cables at 600 volts.

Specifications

• Material: 6061-T6 Aluminum
• Color: Clear
• Wire Range: #4 to #14 AWG
• Voltage Rating: 600 Volt
• Temperature Range: -49¬∞F to 194¬∞F (-45¬∞C to 90¬∞C)
• Standards: ANSI C119.4, UL 486A & 486B Listed
• CU9AL Dual Rated for Copper and Aluminum Wire
• One Wire Per Terminal

Features

• Clear insulation for visible termination verification
• Insulated with rugged high-dielectric plastisol dipped coating
• Pre-filled with oxide inhibitor to prevent corrosion
• Easy re-entry for changes, inspection, or troubleshooting
• Plugs marked with connector max wire size for easy identification

Downloads & Links

• Spec Sheet
