Clear Insulated Connector - In-Line 2 Ports 250 - 6
SKU: #385109
Part: #97305
UPC: 601986973052
Clear Insulated Connector - In-Line 2 Ports 250 - 6
SKU: #385109
Part: #97305
UPC: 601986973052
Total Price: $21.22 per each Sold in increments of 1 each
Description

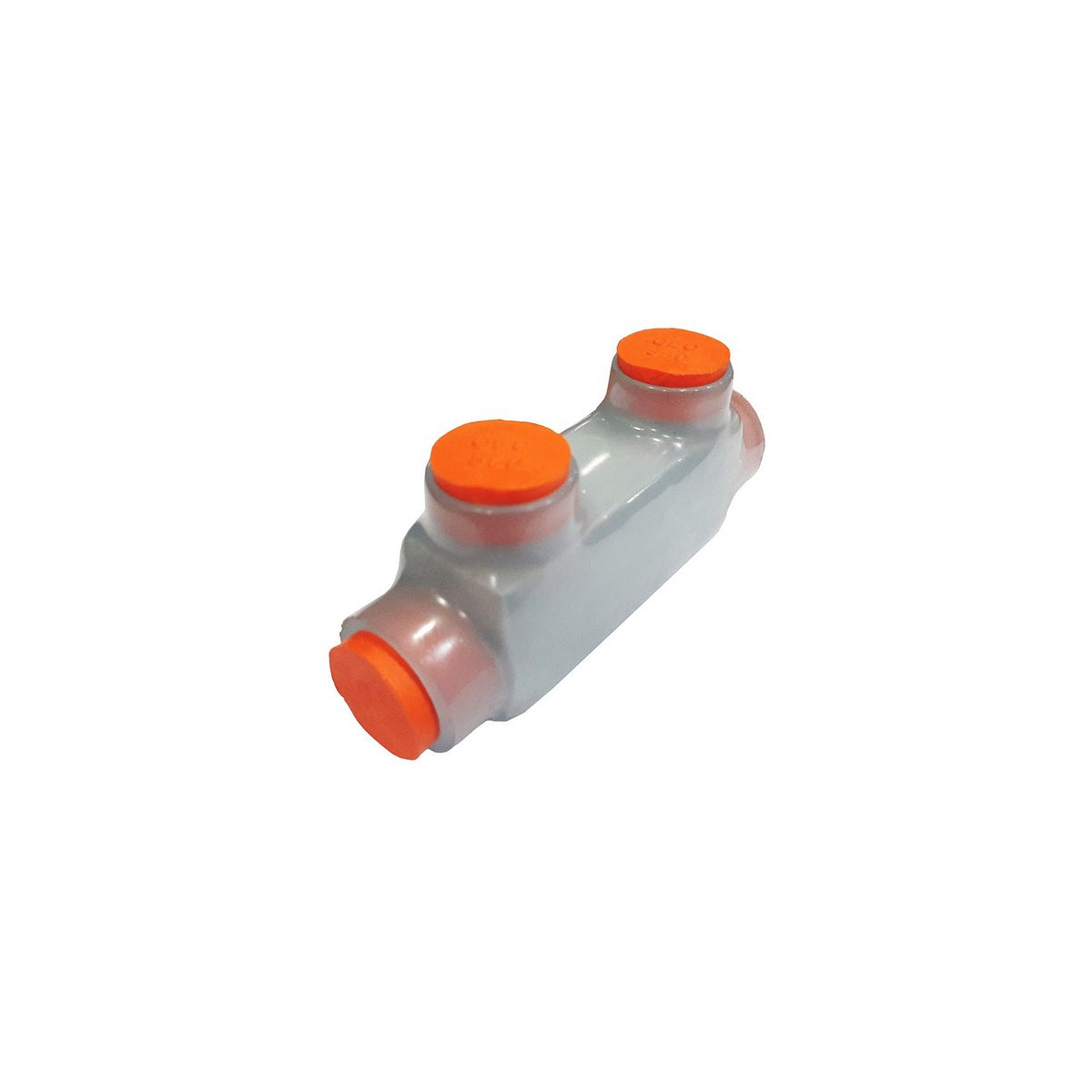

Clear Insulated Connector - In-Line 2 Ports 250 - 6 Electrical Connector
This Clear Insulated Connector is designed for reliable electrical power connections in wire and cable applications. Manufactured by Morris Products, it features clear insulation allowing visual confirmation of proper termination, making it suitable for electrical distributors and switchgear suppliers requiring precision and inspection capability. The connector is dual-rated for use with copper and aluminum wire and supports applications up to 600 volts and 90°C cable ratings.
Specifications
- Material: 6061-T6 Aluminum
- Color: Clear
- Product Weight: 0.5250 lbs
- Voltage Rating: 600 Volt
- Temperature Range: -49°F to 194°F (-45° to 90°C)
- Wire Range: 250 - 6 AWG
- UL Listings: ANSI C119.4, UL 486A & 486B Listed
- Dual Rated: CU9AL for Copper and Aluminum Wire
- Rated For Use with 90°C Cables
Features
- Clear insulation for visual inspection of terminations
- Insulated with rugged high-dielectric plastisol dipped coating
- Pre-filled with oxide inhibitor to prevent corrosion
- Easy re-entry for changes, inspection, or troubleshooting
- Plugs marked with connector max wire size for easy identification
- One wire per terminal design
