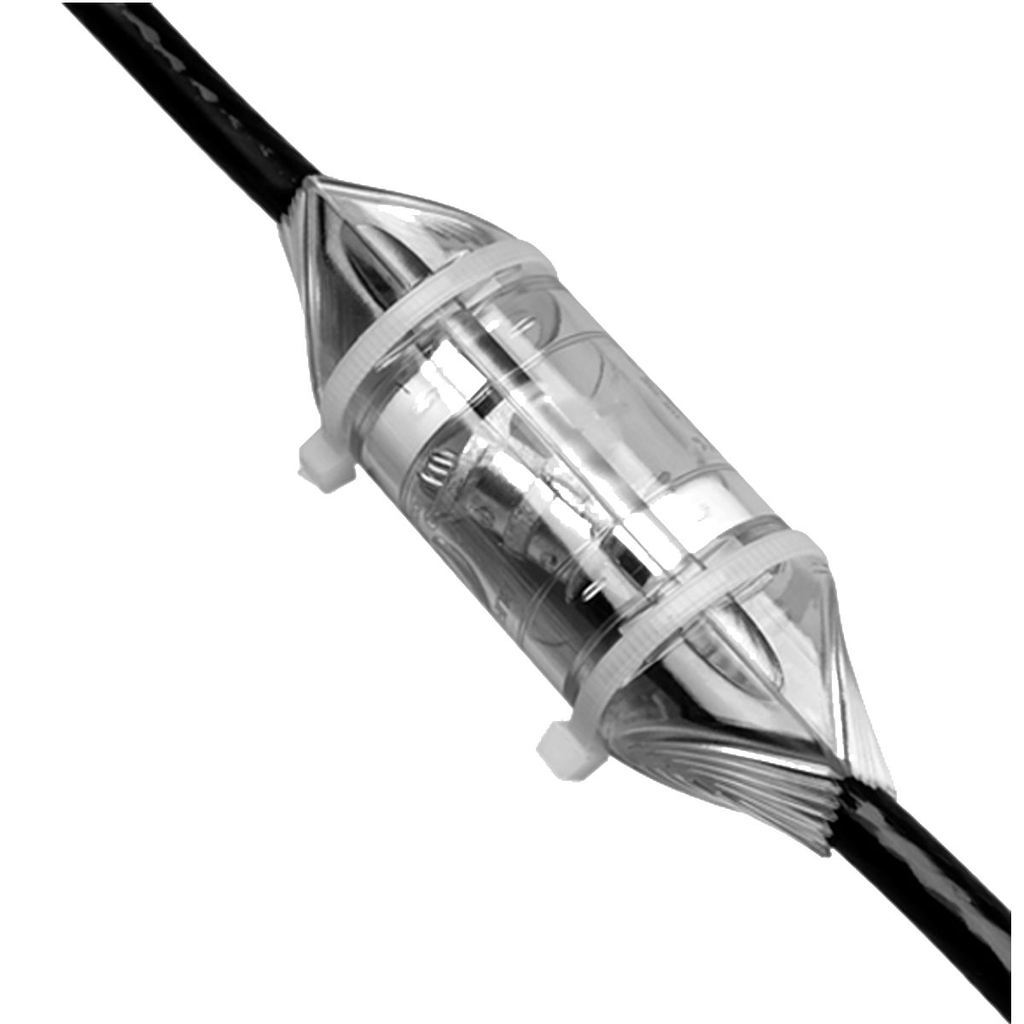

Clear Cover, Flame Retardant Cover for H-Tap Connectors

This clear, flame retardant cover is designed for use with Burndy H-Tap connectors, specifically compatible with models YH83939, YH3931, YH4429, YH4434, YH4444, and suitable for 750 kcmil and 1000 kcmil wire sizes. It provides protective insulation and environmental shielding for copper conductor connections in electrical distribution and wire and cable applications. The polycarbonate material ensures durability and safety in demanding electrical environments, making it a reliable component for electrical distributors and switchgear suppliers.

Specifications

• Application: Cover
• Material: Polycarbonate
• Color: Clear
• Color Coding: Yellow
• Connection Type: H-Tap Covers Clear
• Maximum Voltage: 35,000 volts
• Width: 2.58 in
• Length: 8.63 in
• Height: 3.66 in
• Conductor Material: Copper
• Conductor Size Range: 750 kcmil - 1000 kcmil
• Operating Temperature: 90 ¬∞C
• Manufacturer: Burndy
• Made in USA: Yes
• Weight: 0.5840 lbs
• Certifications: UL Listed, CSA Approved, 94V0 Rated, RoHS Compliant

Features

• Connector end stops for secure positioning
• Flexible fingers for easy installation
• Snap-tight latches for reliable closure
• Two-piece construction for durability
• Magnifying lens for enhanced visibility
• Flame retardant material for increased safety
• Clear design allows visual inspection of connections
