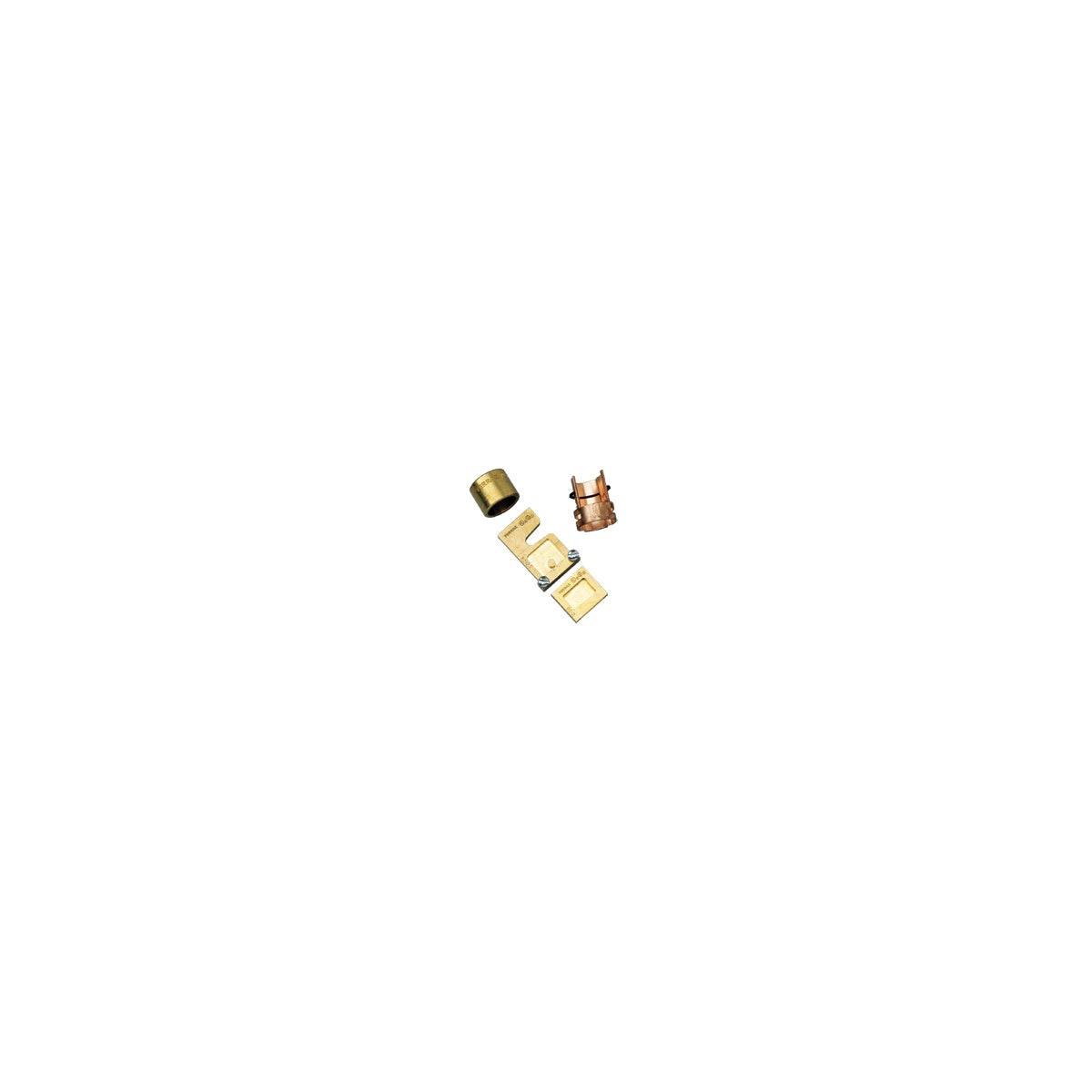

Class J Fuse Reducer - J Fuse Reducer

Mersen Class J Fuse Reducers enable the use of lower rated Class J fuses in existing equipment with clips rated for higher amperes. Designed for electrical distributors and switchgear suppliers, these fuse reducers improve circuit protection by allowing closer rated time-delay fuses to be used, such as replacing renewable or one-time fuses feeding a motor with fuses sized closer to the motor nameplate current. These reducers are rejection-type and fit only Class J clips, and are not intended for bolt-on applications.

Specifications

• Manufacturer: Mersen
• Manufacturer Part #: J166
• Class: J
• Voltage Rating: 600 Volt Class J fuses
• Current Rating: Allows 60A fuse to fit 100A clips
• Dimensions: 1.75 in (Length) x 1.25 in (Width) x 1.25 in (Height)
• Weight: 0.2700 lbs
• Tested Interrupting Rating: 200,000A
• UPC: 782001753443

Features

• Allows use of lower rated Class J fuses in higher ampere rated clips
• Improves circuit protection by enabling use of closer rated time-delay fuses
• Rejection-type reducer for Class J clips only
• Not suitable for bolt-on fuse applications
• UL Listed (Guide No. IZZR) and CSA Certified
• Intended for temporary use only
