Class H & K Fuse Reducer - Fuse Reducers for Electrical Protection

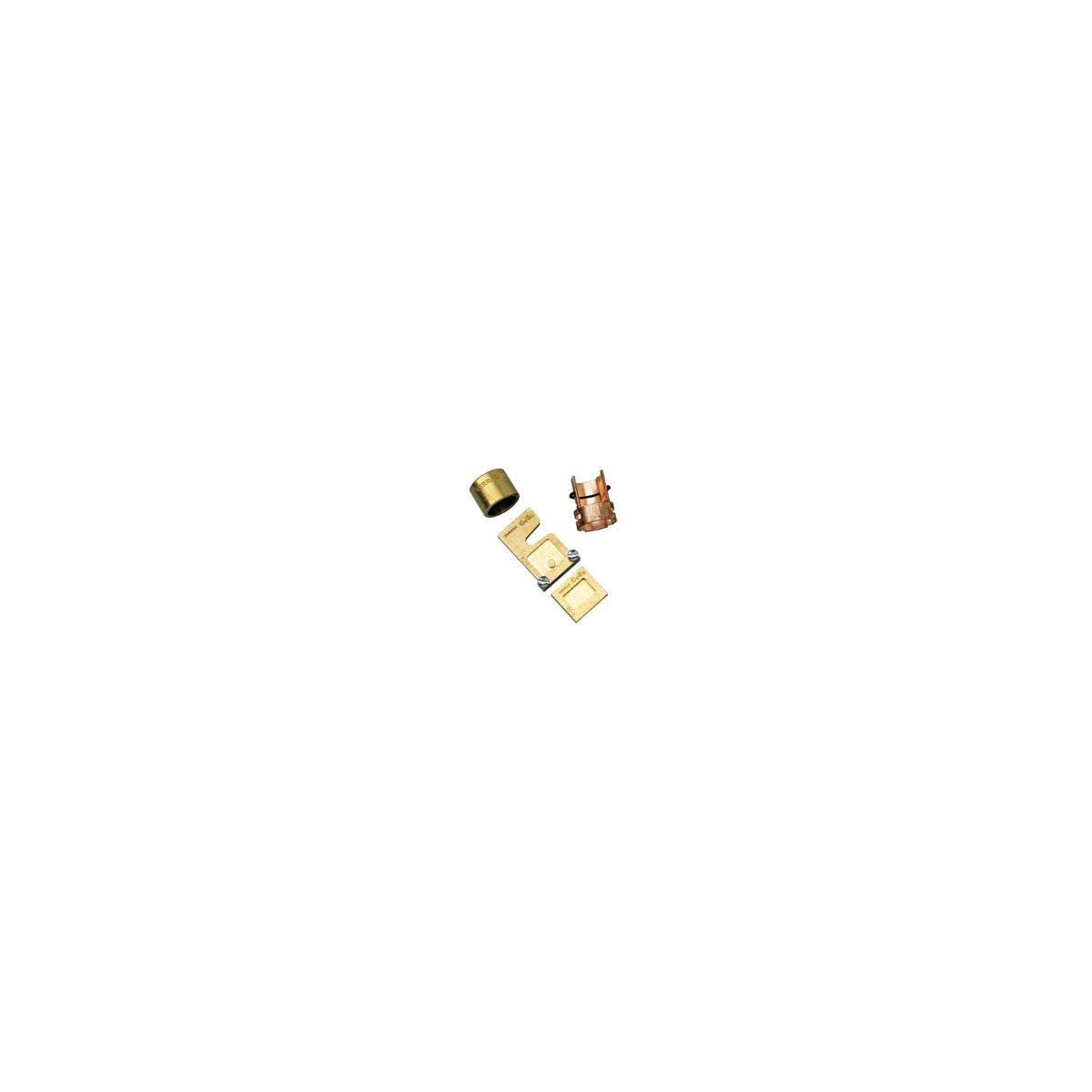

Mersen Class H & K Fuse Reducer allows the use of lower rated fuses in existing electrical equipment with clips rated for higher amperes. This product improves circuit protection by enabling the use of time-delay fuses sized closer to the motor nameplate current, ideal for renewable or one-time fuses feeding motors. It supports non-rejection fitting for Class H, K, or R fuses to fit Class H or K clips. This fuse reducer is a practical solution for electrical distributors and switchgear suppliers seeking precise fuse compatibility and enhanced protection.

Specifications

• Manufacturer: Mersen
• Manufacturer Part #: 262
• Class: H & K
• Dimensions: 2.91 in (Length) x 0.113 in (Width) x 0.113 in (Height)
• Weight: 0.45 lb
• Voltage Rating: Suitable for 250V and 600V Class H, K, and R fuses
• Amperage Range: 30 to 600 Amps
• Tested Interrupting Rating: 200,000 Amps
• UPC: 782001752262

Features

• Allows use of lower rated fuses in equipment with higher ampere clips
• Supports non-rejection reducers for Class H, K, or R fuses to fit Class H or K clips
• Improves circuit protection by enabling closer rated time-delay fuses
• Compatible with renewable or one-time fuses feeding motors
• Not suitable for bolt-on applications
