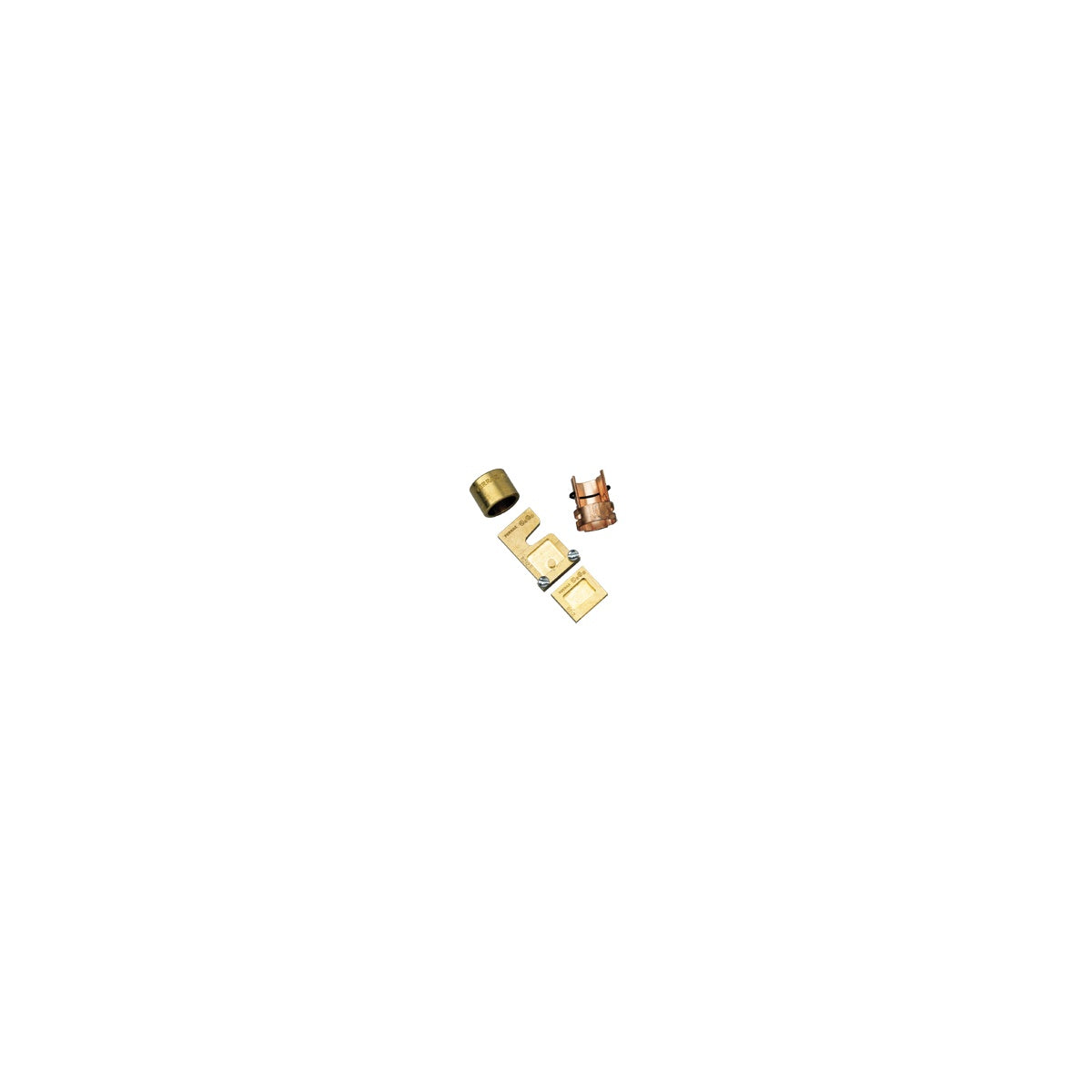

Class H & K Fuse Reducer - Fuse Reducers for Electrical Protection

Mersen Class H & K Fuse Reducers enable the use of lower rated fuses in existing equipment with clips rated for higher amperages. These fuse reducers improve circuit protection by allowing closer rated time-delay fuses to be installed, such as replacing renewable or one-time fuses feeding motors with fuses sized closer to the motor nameplate current. This product is suitable for electrical distributors and switchgear suppliers seeking precise fuse sizing solutions to enhance protection and equipment compatibility.

Specifications

• Manufacturer: Mersen
• Manufacturer Part #: 642
• Class: H & K
• Voltage Rating: 250V and 600V for Class H, K, and R fuses
• Amperage Range: 30 to 600A
• Tested Interrupting Rating: 200,000A
• Dimensions: 2.75 in Length x 2 in Width x 0.1875 in Height
• Product Weight: 0.42 lbs
• UPC: 782001752316

Features

• Allows use of lower rated fuses in equipment with clips rated for higher amps
• Non-rejection reducers fit Class H, K, or R fuses into Class H or K clips
• Rejection-type reducers restrict fit to Class R fuses in Class R clips or Class J fuses in Class J clips
• Improves circuit protection by enabling closer fuse sizing to motor nameplate current
• Class J fuse reducers are not intended for bolt-on applications
• UL Listed (Guide No. IZZR) and CSA Certified for safety compliance
• Intended for temporary use only
