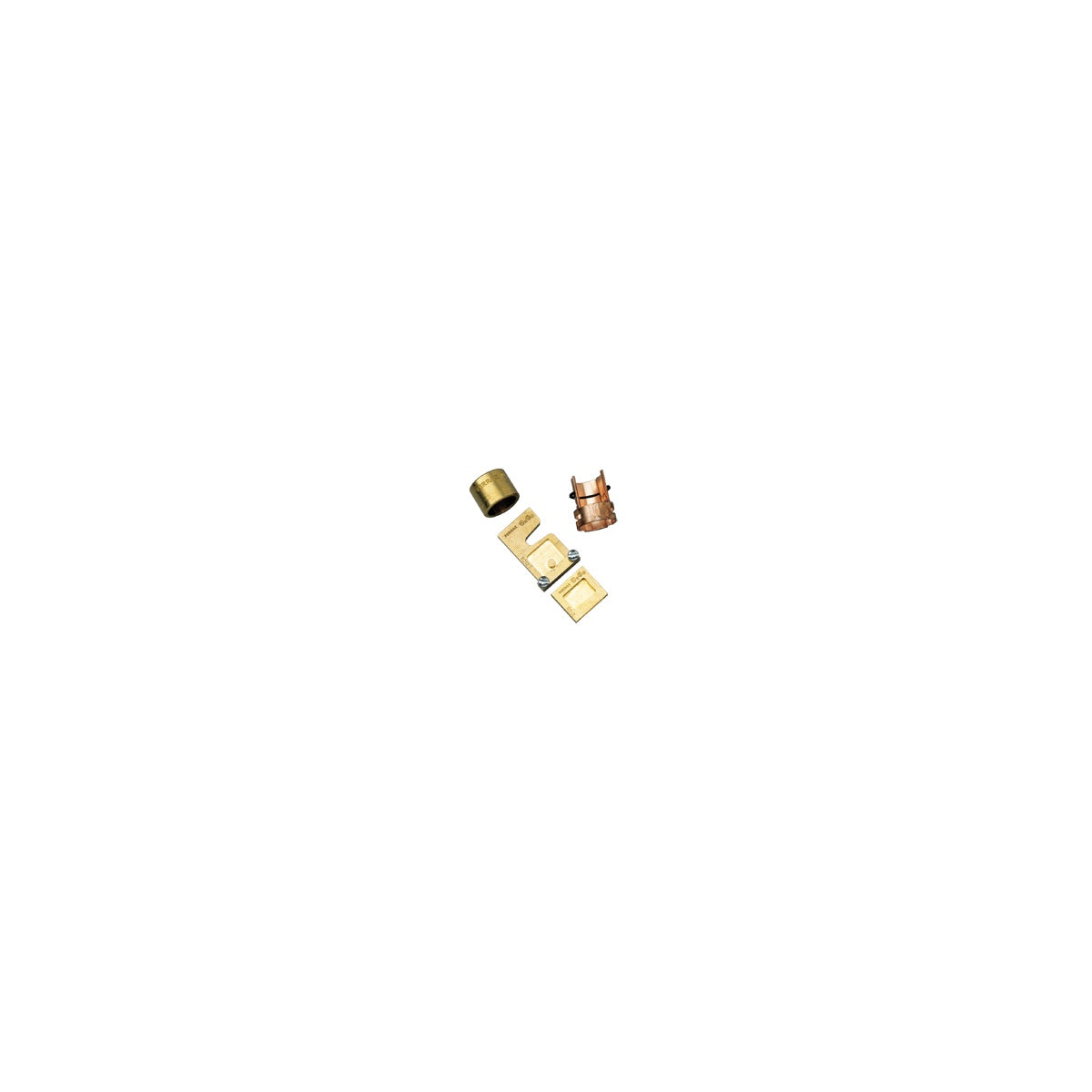

Class H & K Fuse Reducer - Fuse Reducers for Electrical Protection

Mersen Class H & K Fuse Reducers enable the use of lower rated fuses in existing equipment with clips designed for higher ampere ratings. These fuse reducers improve circuit protection by allowing closer rated time-delay fuses to be used, such as replacing renewable or one-time fuses feeding a motor with fuses sized closer to the motor nameplate current. Designed for compatibility with Class H and K clips, these reducers help electrical distributors and switchgear suppliers optimize fuse sizing without modifying existing equipment.

Specifications

• Manufacturer: Mersen
• Manufacturer Part #: 212
• Class: H & K
• Voltage Ratings: 250V and 600V for Class H, K, and R fuses
• Amperage Range: 30 to 600A
• Tested Interrupting Rating: 200,000A
• Dimensions: 1.625 in (Length) x 1.125 in (Width) x 0.1875 in (Height)
• Weight: 0.1600 lbs
• UL Listed Guide No. IZZR
• CSA Certified
• UPC: 782001752279

Features

• Allows use of lower rated fuses in equipment with clips rated for higher amperes
• Non-rejection type permits Class H, K, or R fuses to fit Class H or K clips
• Improves circuit protection by enabling use of closer rated time-delay fuses
• Compatible with renewable or one-time fuses feeding motors for accurate sizing
• Not intended for bolt-on applications
• Suitable for electrical distributors and lighting solutions requiring precise fuse adaptation
