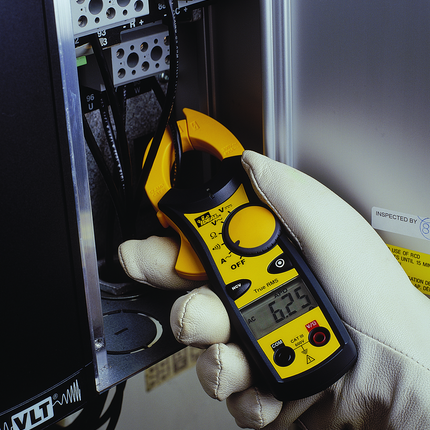

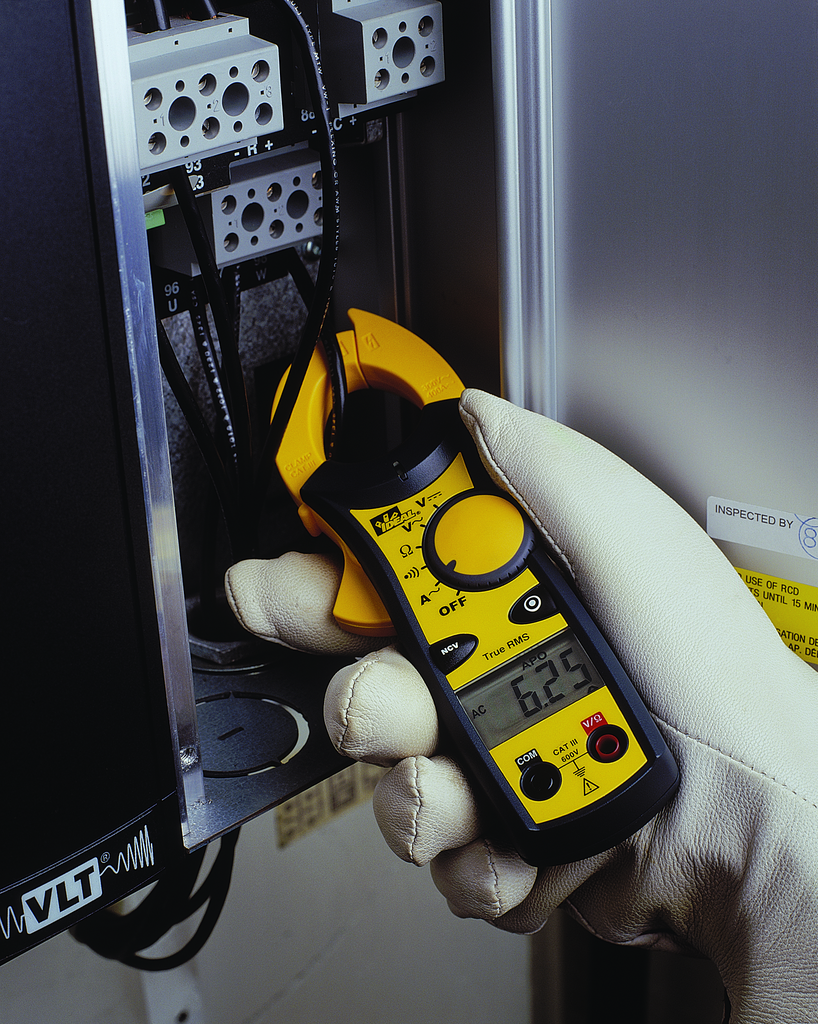

Clamp-Pro™ 600 AAC Clamp Meter w/NCV – Clamp Meter for Electrical Testing

The Clamp-Pro™ 600 AAC Clamp Meter w/NCV by IDEAL Industries is a precision instrument designed for electrical distributors, lighting solutions providers, and wire and cable professionals requiring accurate current, voltage, and resistance measurements. This clamp meter features non-contact voltage detection (NCV) and supports measurements up to 600 AAC, suitable for use in switchgear supplier applications and general electrical troubleshooting.

Specifications

• Display: 3-3/4 Digit LCD with 4000 Counts
• Accuracy: Specified at 23°C ±5°C, less than 75% relative humidity
• Dimensions: 8.0 in Height x 2.6 in Width x 1.5 in Depth (203mm x 65mm x 37mm)
• Battery: (2) 1.5 V "AAA" Batteries (NEDA R03), isolated battery compartment
• Battery Life: 400 hours continuous with Alkaline (Model 61-744), 250 hours continuous with Alkaline (Model 61-746)
• Jaw Opening: Accepts conductors up to 1.50" (38mm) diameter
• Weight: 7.1 oz (200g) including batteries
• Safety: Complies with UL/IEC/EN 61010-1, 61010-2-032, 61010-031, CAT III 600V

Features

• Auto/manual ranging clamp meter with 3-3/4 digit LCD display
• Non-contact voltage detection from 70 to 600 VAC
• Measures AC/DC voltage, resistance, and 600 AAC current
• Audible continuity testing with indication for resistance below 25Ω
• Data hold and auto power off functions for efficient operation
• Compact jaws for access to tight spaces and electronic overload protection
• Model 61-744 offers averaging sensing with RMS calibration; Model 61-746 provides true RMS sensing
• Low battery indicator to prevent false readings

Downloads & Links

• PDF Instructions
