Features

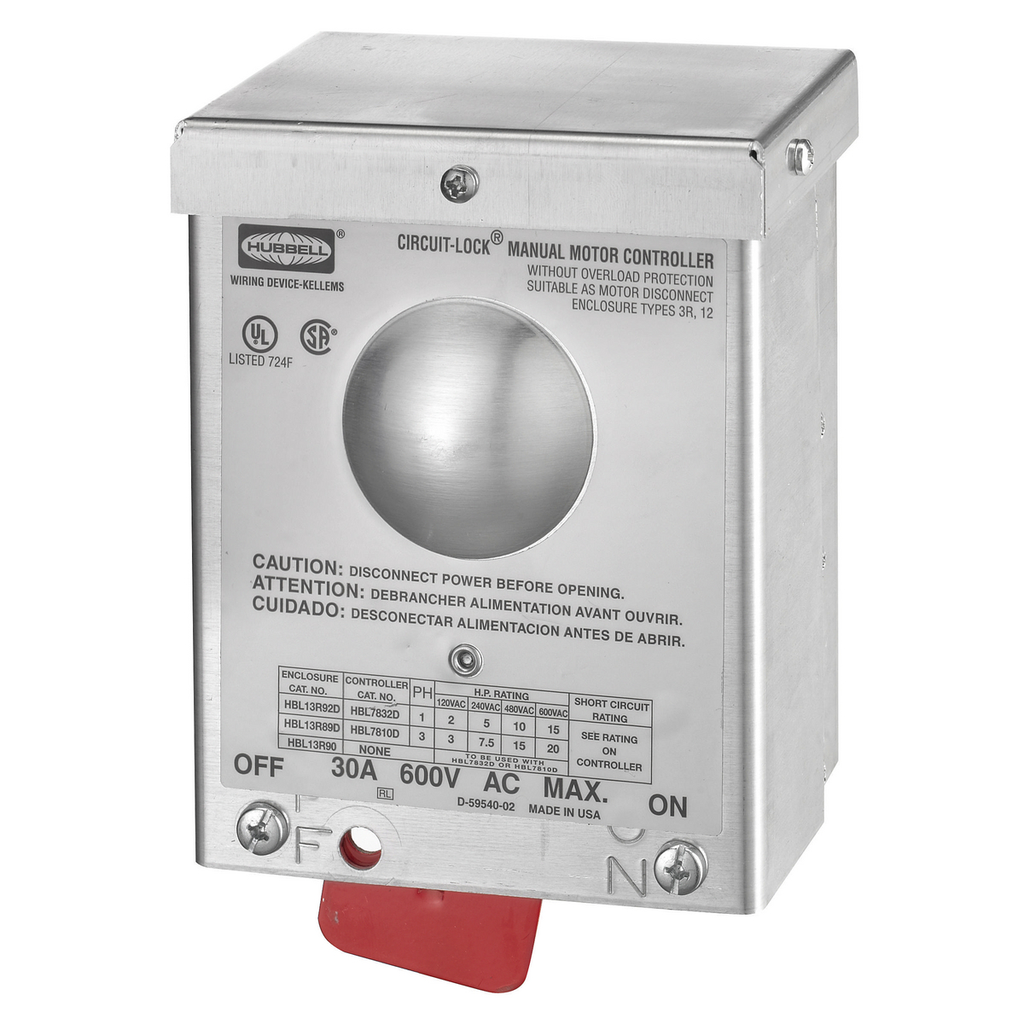

• Hubbell Wiring Devices, Switches and Lighting Controls, IndustrialGrade, Toggle Switches, Motor Disconnects, Double Pole, 30A 600V AC,Back and Side Wired, Aluminum, NEMA 3R Enclosure with Switch
• All aluminum cover and base
• Flip-lid enclosure
• Ideal for use on outdoor equipment
• Surface mount control
• Standard Product

Specifications

• Color: Aluminum
• Country of Origin: US
• Current / Amperage Rating: 30 A
• Dimensions: 5.52 in x 4.4 in x 3.3 in
• Width: 4.620 in
• Each - Width: 4.620 in
• Height: 3.3 in
• Horsepower - Maximum: 15
• Length: 5.52 in
• Standards - RoHS Compliance Status: CM
• Application: Red Slide
• Current Rating: 30
• Enclosure Type: NEMA 3R
• Size: 5.52 in x 4.4 in x 3.3 in
• Special Features: Standard Product
• Type: Disconnect Switches
• Amperage Rating: 30 A
• Connectivity: Pressure Terminal Screws
• Display Size: Standard Sized Product
• Environmental Conditions: Indoor and Outdoor
• Load Capacity: Inductive
• Operating Cycles: 10,000 Cycles Minimum
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Phase: Single Phase
• Style: Standard Duty
• Wattage: 18000 W
• Weight: 1.45 lb.
• Class Code: A16
• Description - Invoice: 30A 600V 2P DISC SW W/NEMA 3R
• Freight Class Code: 06168002
• Harmonization Code: 8536509040
• Image Actual Or Representative: A
• MSDS Flag: No
• Replaced Catalog Number: HBL13R92
• Replacement Catalog Number: HBL13R92
• Sub Class Code: A16A240
• Material - Mounting Hardware: Screw Mounting
• Series: Non-Fused
• Base Unit of Measure: EA
• BOX SIZE: 6.700x10.200x8.300 (in)
• Carton - Gross Weight per Pack: 6.3 lb.
• Carton - Number of Sub Packs: 4
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 783585202709
• Carton - Total Units: 4 EA
• Each - Pack Description: Each
• Lowest Level UOM: Each

Certifications

• EU RoHS Indicator: No
