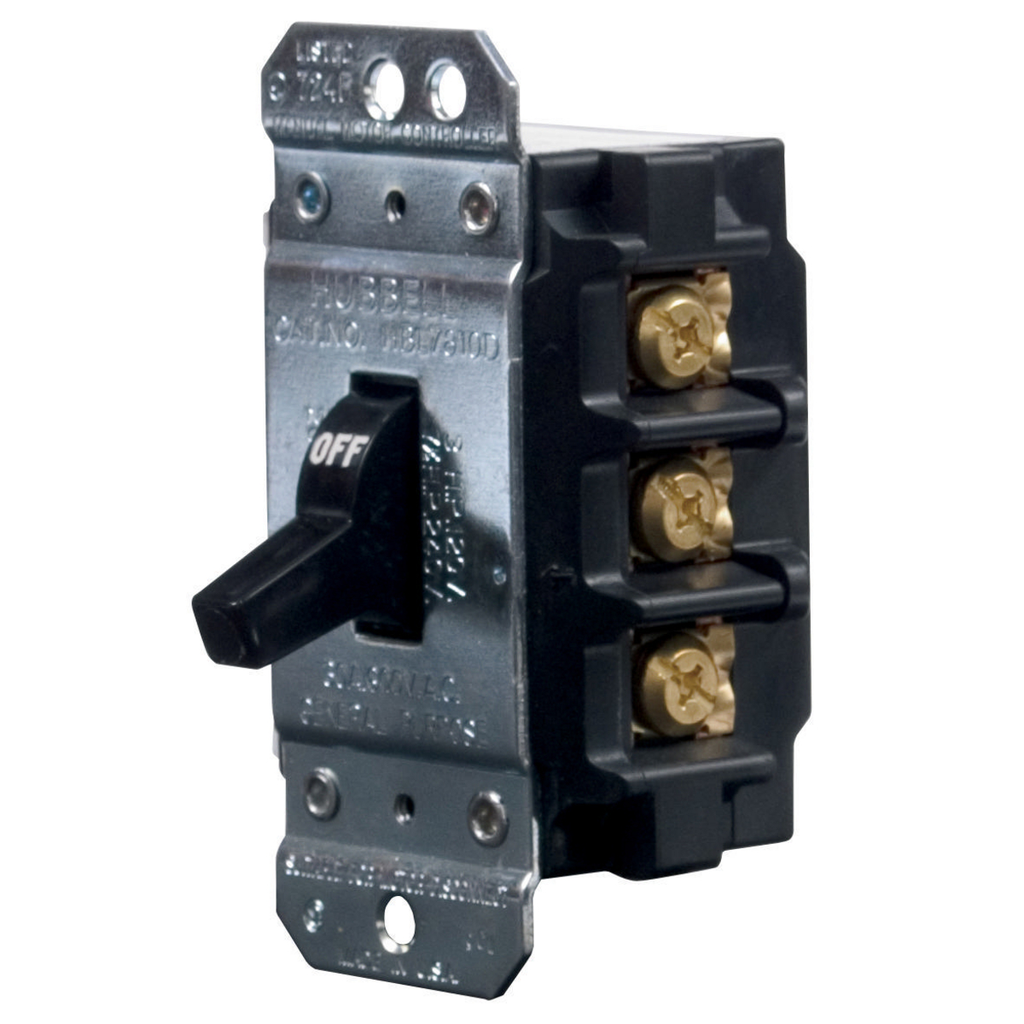

Circuit-Lock® Manual Short Toggle Controller/Motor Disconnect Switch, 3-pole 30A

The Circuit-Lock® Manual Short Toggle Controller is a 3-pole, 30 amp motor disconnect switch rated for 600V AC applications. Designed for use by electrical distributors and switchgear suppliers, this device provides reliable manual motor control and disconnect functionality. It is suitable for industrial electrical applications requiring safe and durable switching solutions.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBL7810DS
• Current Rating: 30 amperes
• Number of Poles: 3 Pole
• Number of Phases: 3
• Voltage Rating: 600V AC RMS
• Material: Stainless Steel
• Operating Temperature: -40°C minimum continuous
• Product Weight: 1.1 lbs
• Width: 2.418 in
• Terminal Screw Material: Brass
• Contacts Material: Silver Alloy
• Housing: Thermoset
• Country of Origin: United States (Made in USA)

Features

• Short toggle type for quick ON/OFF operation
• Back and side wired for flexible installation
• Thermoset body provides high resistance to electrical arc tracking
• Strong ON/OFF action with quick-make, slow-break operation
• Four large silver alloy contacts per pole ensure excellent conductivity and longevity
• Lubrication-free controller supports continued cycling in harsh, dusty, and high heat environments
• Compatible with solid and stranded copper wire up to #10 AWG
• UL 508 and CSA-C22.2 No.14 listed for safety compliance
• Designed for use in motor disconnect and manual motor control applications
