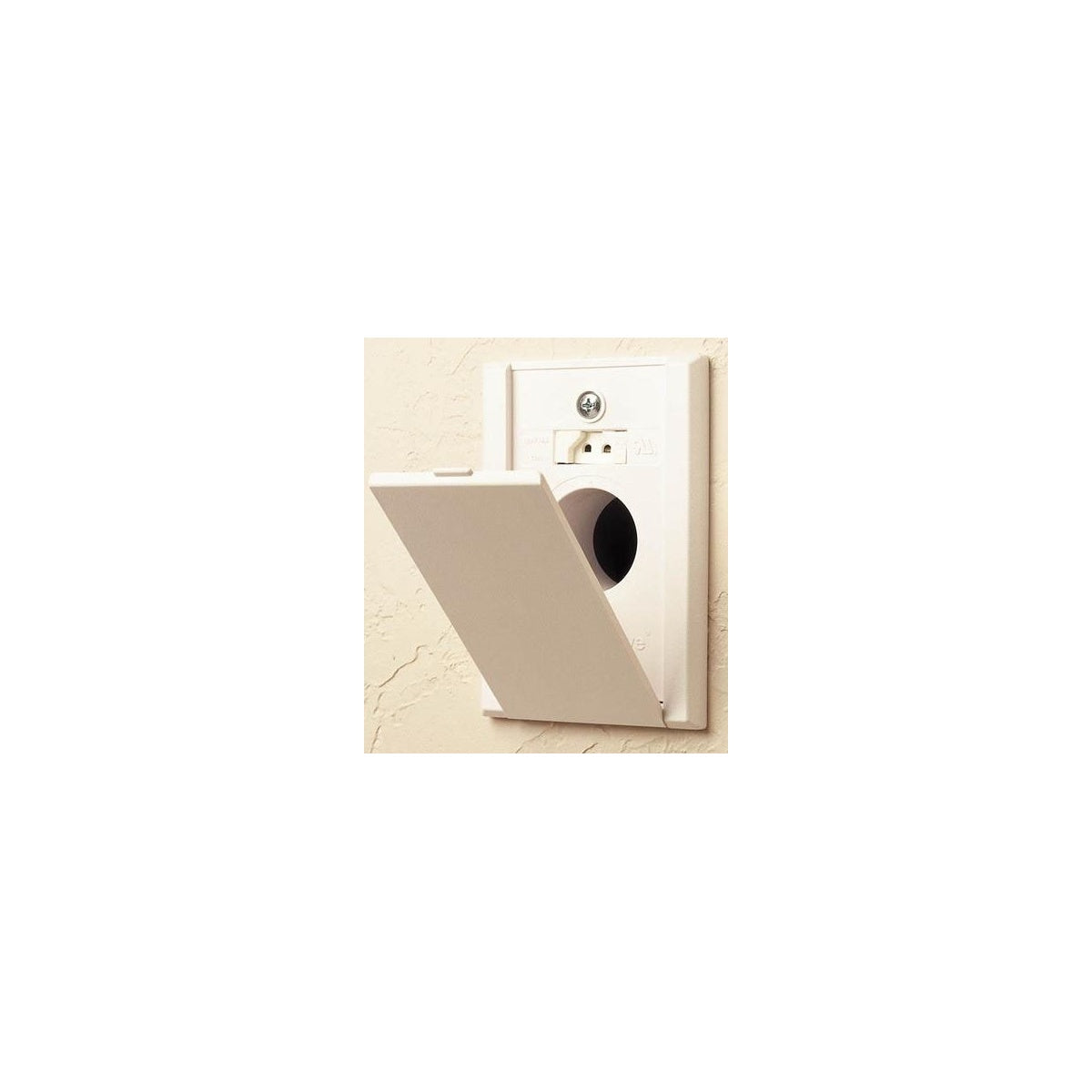

CI390V Vacuum System Standard Inlet for Central Cleaning Systems

The CI390V Vacuum System Standard Inlet by Broan is designed for use with NuTone CH610 current-carrying hoses, providing a streamlined electrical connection for central vacuum systems. This electrified inlet eliminates the need for an extension cord by integrating the power receptacle directly into the inlet, facilitating a simple one-step hose connection. Ideal for electrical distributors and switchgear suppliers involved in residential central cleaning system installations, this inlet operates on standard house wiring and is compatible with NuTone's central vacuum hose models.

Specifications

• Use: Only with NuTone CH610 Deluxe Direct-Plug Current-Carrying Hose
• Finish: Ivory
• Installation: Use 390RK Rough-In Kit (includes mounting plate, snap-in power receptacle, 6' 12-gauge cable assembly, and plaster guard)
• UPC: 784891772016
• Product Weight: 0.3 lbs
• Manufacturer Part #: CI390V

Features

• Eliminates the need for an extension electrical cord from inlet to outlet
• Operates on standard household wiring
• Molded power receptacle clips to mounting plate for secure installation
• Available in two finishes: white and ivory (this model is ivory)
• UL Listed assembly ensuring compliance with safety standards
• One-year limited warranty provided by Broan-NuTone
