Chicago® Grip Type B Strand Puller – Steel Strand Wire Pulling Grip

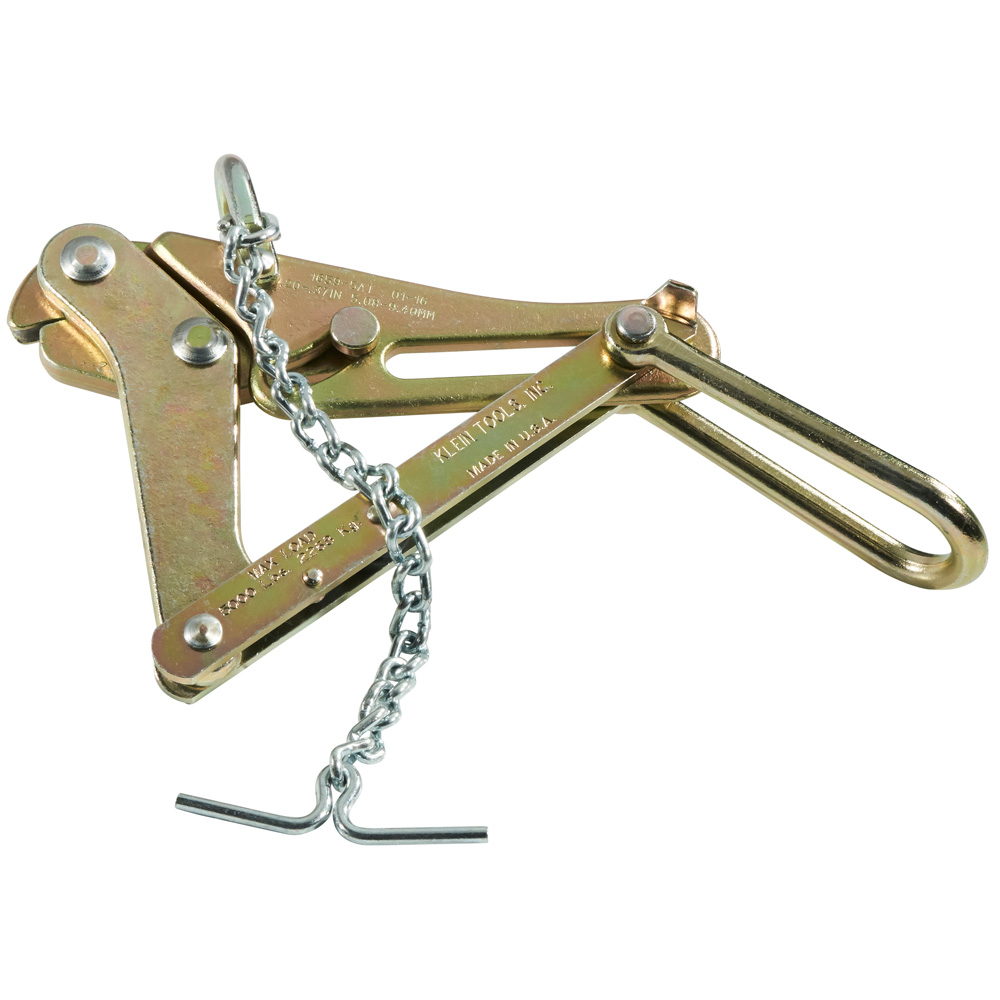

The Chicago® Grip Type B Strand Puller by Klein Tools is designed for pulling 1/4-inch figure-8 telephone cable, commonly used in wire and cable applications. This strand puller is engineered for durability and reliability, making it suitable for electrical distributors and switchgear suppliers handling cable installations. It features a chain, toggle, and shackle to prevent the grip from slipping off the cable during use. Manufactured from custom drop-forged steel that is machined and heat treated, this grip ensures long-lasting performance and consistent function through individual hand inspection and rigorous load testing.

Specifications

• Type: Chicago Grip
• Application: 1/4" Figure-8 Telephone Cable
• Special Features: "B" Strand Puller – Equipped with Chain, Toggle, and Shackle
• Cable Type: Steel Strand
• Cable Diameter: 0.2" to 0.37" (5.08 to 9.4 mm)
• Hot Latch: No
• Swing Latch: No
• Spring: Yes
• Locking Handle: Yes
• Jaw Type: Round – Serpentine
• Jaw Length: 5" (12.7 cm)
• Maximum Safe Load: 5000 lb (2268 kg)
• Weight: 6.7 lb (3.03 kg)
• Dimensions: Width 7" (17.78 cm), Height 1.76" (4.47 cm)

Features

• Custom drop-forged steel construction for enhanced durability
• Individually hand inspected and actuated for proper function

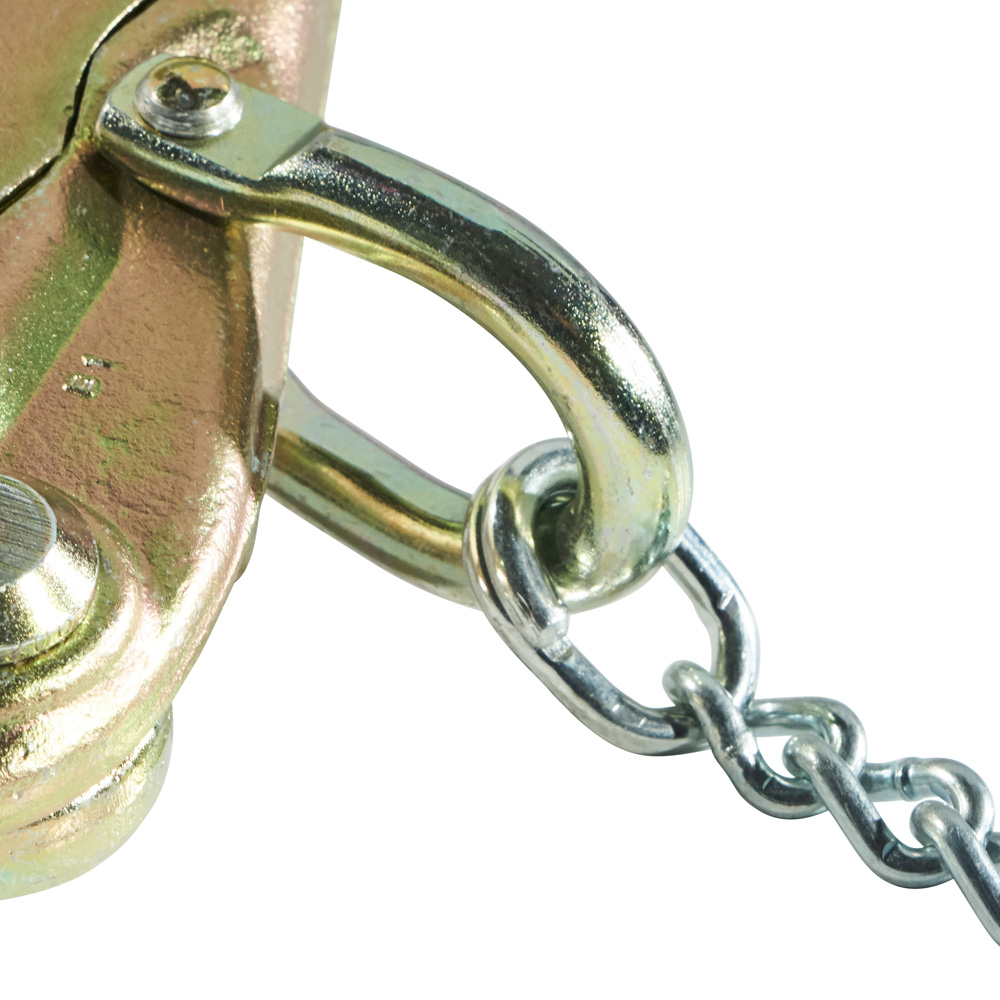

• Equipped with chain, toggle, and shackle to secure grip on cable
• Heat treated for long service life
• Tested and pulled to rated load for quality assurance
