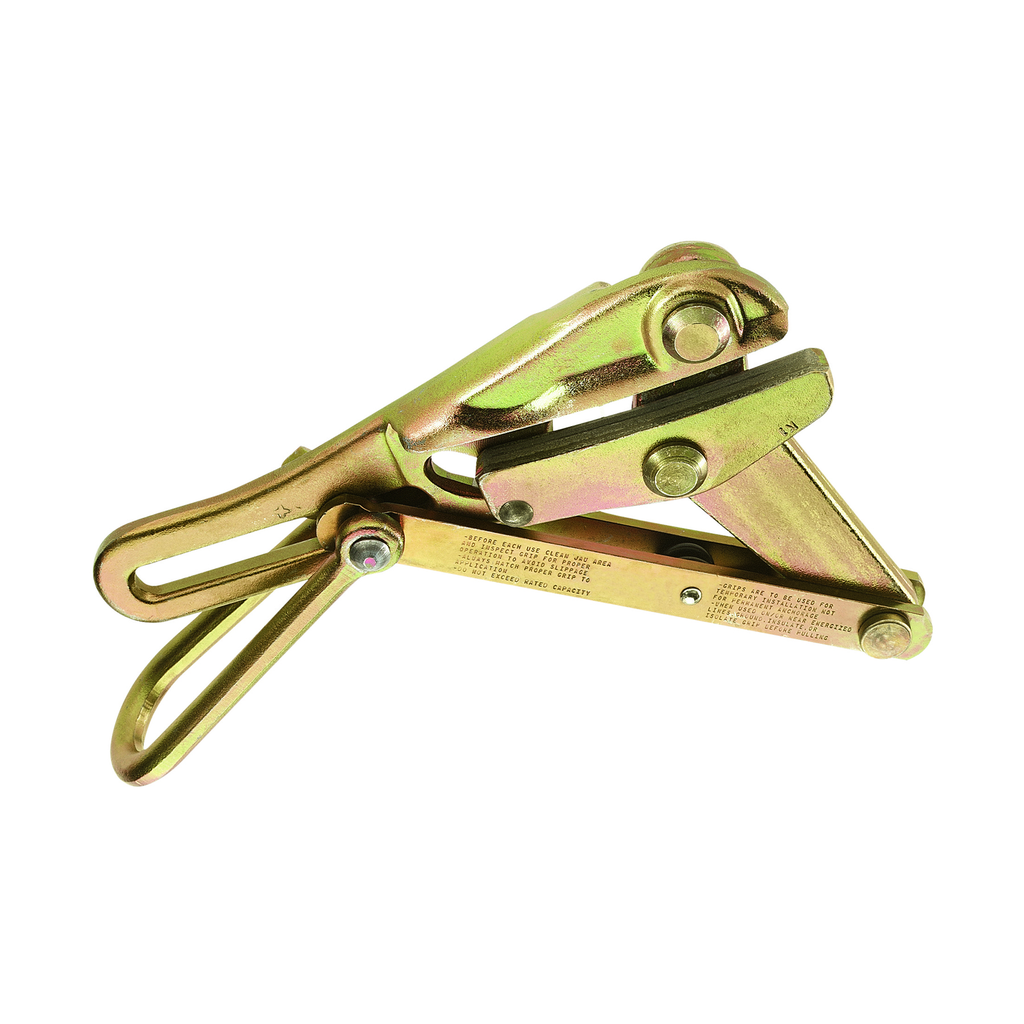

Chicago® Grip for EHS Cable, Curved Jaw – Wire and Cable Gripping Tool

The Chicago® Grip for EHS Cable, Curved Jaw by Klein Tools is designed for secure gripping and pulling of aluminum, copper, weatherproof coated wire, PVC covered conductors, as well as messenger and guy strand cables. This grip is engineered specifically for cable sizes ranging from 0.12 inch to 1.0 inch (3.10 to 25.4 mm) and is optimized for use with EHS (extra-high-strength) galvanized-steel cable. Its double V contour jaw design minimizes slippage and reduces cable damage caused by galvanizing coating on the jaws, making it suitable for demanding electrical distributor and wire and cable applications.

Specifications

• Type: Chicago Grip
• Cable Type: Aircraft, EHS, Messenger, Guy Strand
• Cable Diameter: 0.218" to 0.55" (5.54 to 13.97 mm)
• Hot Latch: No
• Swing Latch: No
• Spring: Yes
• Locking Handle: Yes
• Jaw Type: Double V, Milled Curved
• Jaw Length: 5" (12.7 cm)
• Maximum Safe Load: 8000 lb (3629 kg)
• Weight: 5.6 lb (2.6 kg)
• Dimensions (W x H): 6.3 in x 1.584 in
• Manufacturer: Klein Tools
• Manufacturer Part #: 1684-74

Features

• Double V contour jaw reduces cable slippage and damage, especially on galvanized-steel cables
• Curved jaw design provides secure gripping on a variety of conductor types including aluminum, copper, and PVC covered cables
• Spring-loaded mechanism and locking handle ensure firm cable hold during pulling
• Suitable for use in electrical distribution, wire and cable handling, and switchgear installation applications
• Compatible with cable diameters from 0.12 inch to 1.0 inch (3.10 to 25.4 mm)
