Morris Products
Chair Adapter (2 Male tabs)
SKU: #271736
Part: #10716
UPC: 601986107167
Description
Chair Adapter (2 Male tabs) Electrical Connector
The Chair Adapter (2 Male tabs) by Morris Products is a non-insulated disconnect designed for electrical distributors and lighting solutions requiring reliable wire and cable connections. It features a 3-way configuration with two parallel .250" male tabs and one in-line .250" female tab, suitable for wire ranges 22-10 AWG. This adapter supports up to 600 V and 24 amps, making it appropriate for various switchgear and electrical distribution applications.
Specifications
- Material: Brass
- Wire Range: 22-10 AWG
- Tab Size: 0.25 inches

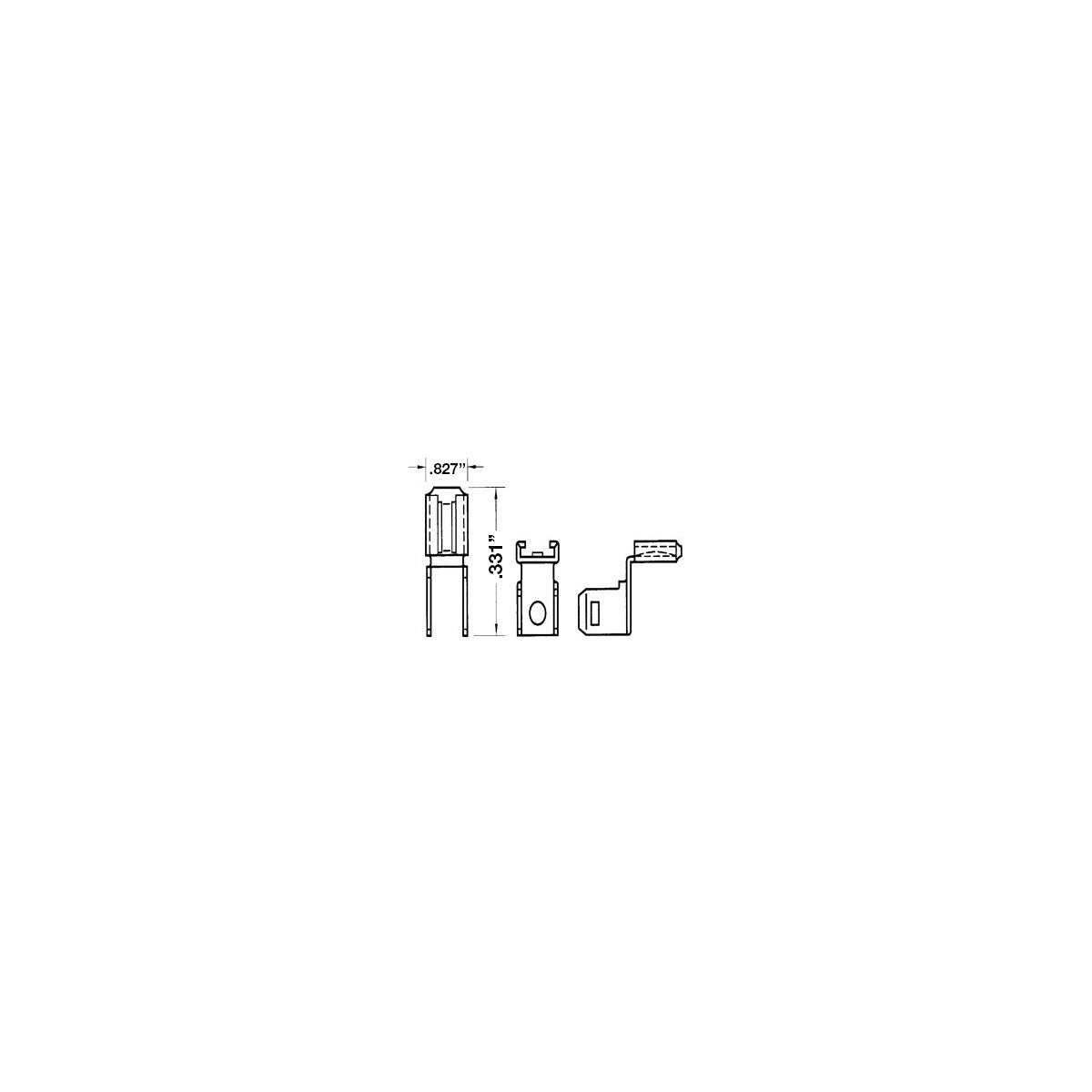

- Length: 0.827 inches
- Width: 0.331 inches
- Voltage Rating: 600 V
- Amperage Rating: 24 Amps
- UL Certified: Yes
- cUL Certified: Yes
- RoHS Compliant: Yes
Features
- Non-insulated design for direct electrical connections
- Manufactured from high-strength brass for durability
- Two parallel .250" male tabs and one in-line .250" female tab
- Suitable for use in electrical distribution and lighting solutions
