CH230 Circuit Breaker – Residential Electrical Protection

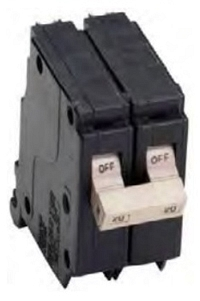

The Eaton CH230 Circuit Breaker is a two-pole, 30-ampere plug-on breaker designed for residential electrical distribution systems. It provides premium overload and short-circuit protection with a thermal-magnetic trip curve that minimizes nuisance tripping while responding rapidly to severe faults. Suitable for use in 120/240 Vac circuits, this breaker is ideal for residential loadcenters and is distributed by electrical distributors specializing in lighting solutions, wire and cable, and switchgear supply.

Specifications

• Manufacturer: Eaton
• Manufacturer Part #: CH230
• Current Rating: 30 amperes
• Number of Poles: 2
• Mounting Type: Plug-On
• Product Weight: 0.5600 lbs
• UPC: 782113101804

Features

• Quick-make, quick-break switch mechanism with trip-free handle design
• Thermal-magnetic trip curve to avoid nuisance tripping on mild overloads
• Trips to OFF position to eliminate nuisance callbacks
• Handles marked with ON-OFF indication and ampere rating
• Internal common trip connection for multipole breakers to operate all poles simultaneously
