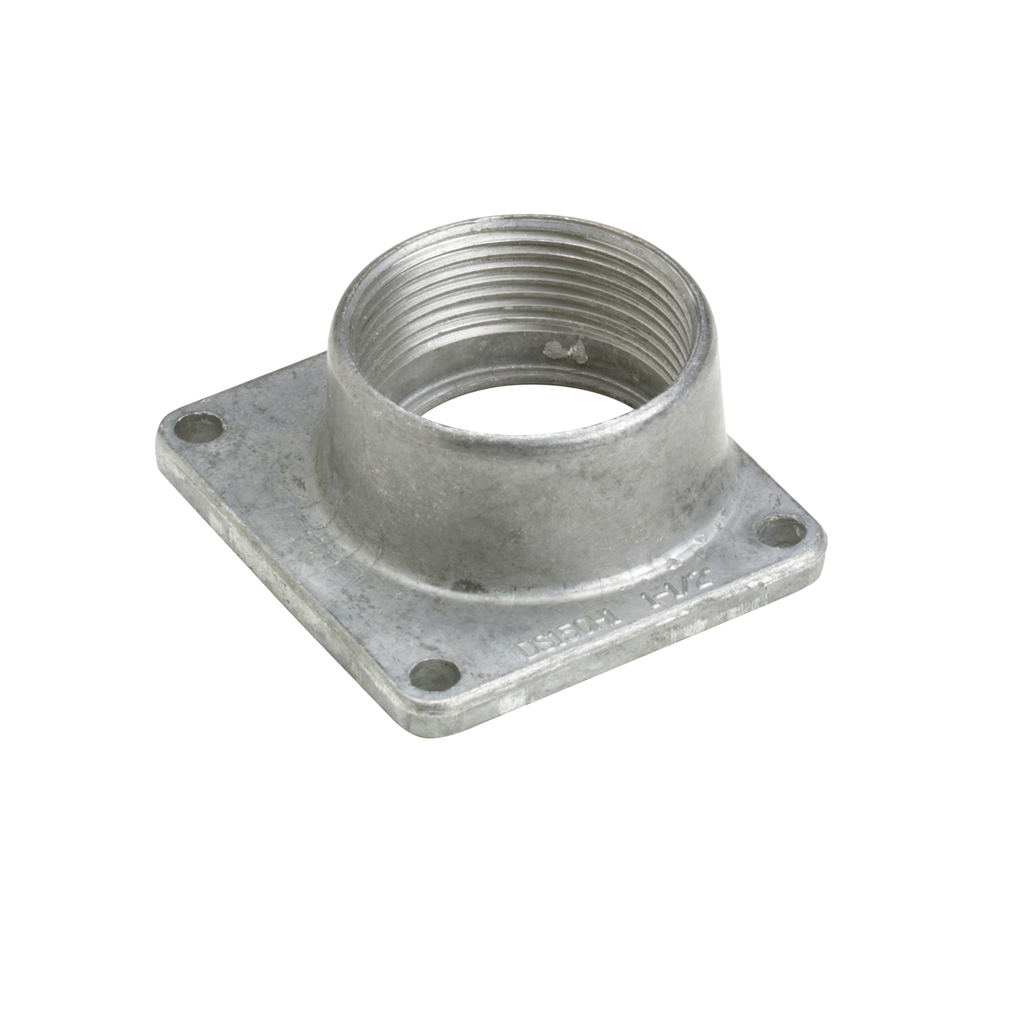

CH 3/4 in Loadcenter and Breaker Accessories
SKU: #164017
Part: #DS150H1
UPC: 782113109947
CH 3/4 in Loadcenter and Breaker Accessories
SKU: #164017
Part: #DS150H1
UPC: 782113109947
Total Price: $31.95 per each Sold in increments of 1 each
Next day delivery
Description
Specifications
- Height: 1.25 IN
- Length: 2.75 IN
- Width: 3 IN
- Special Features: Suitable for non-metallic enclosures
- Type: Rainproof conduit/plate type hub -group 1
- Amperage Rating: Up to 100A
- Enclosure: NEMA 3R
- Size: 3/4 in
- Used With: Mlo and mcb loadcenters and cb enclosures, ch8b150rf, ch8b200rf, general duty, heavy duty, and double throw safety switches through 100A. for use with rgdn and rfdn
- Notes: Group 1, conduit size: 3/4 inch (19.1 mm), used with 70, 100, and 125A mlo and mcb br and ch loadcenters and cb enclosures, and the following 150 and 200A panels: ch8b150rf, ch8b200rf
