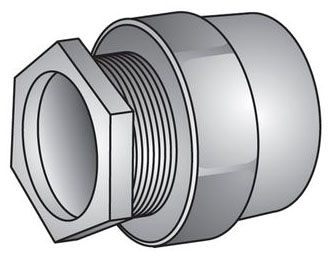

CH-200, IMC/Rigid Conduit Hub
SKU: #314093
Part: #CH-200
UPC: 783126092752
CH-200, IMC/Rigid Conduit Hub
SKU: #314093
Part: #CH-200
UPC: 783126092752
Next day delivery
Description
CH-200, IMC/Rigid Conduit Hub – Electrical Conduit Fitting
The CH-200 IMC/Rigid Conduit Hub by O-Z Gedney is designed for secure and reliable connection of rigid conduit and intermediate metal conduit (IMC) to electrical enclosures. This conduit hub is suitable for use with rigid conduit and IMC applications, providing a watertight seal with its recessed neoprene gasket. It is ideal for electrical distributors and switchgear suppliers requiring durable fittings for heavy wall cabinets and service entrance conduit installations.
Specifications
- Application: For Rigid Conduit And IMC
- Connection: 2-11-1/2 Female Tapered NPSM
- Material: Neoprene (Gasket)
- Product Weight: 1.1400 lbs
- Manufacturer: O-Z Gedney
- Manufacturer Part #: CH-200
Features
- Female bushed nipple type with female thread for rigid conduit and IMC
- Recessed O-ring seal outside the box provides a watertight threaded hub
- Space-saving design suitable for use with heavy wall cabinets
- Compatible with service entrance conduit
- Neoprene gasket ensures effective sealing
