CH-100T, IMC/Rigid Conduit Space-Maker Hub
SKU: #314083
Part: #CH-100T
UPC: 783126092639
CH-100T, IMC/Rigid Conduit Space-Maker Hub
SKU: #314083
Part: #CH-100T
UPC: 783126092639
Next day delivery
Description

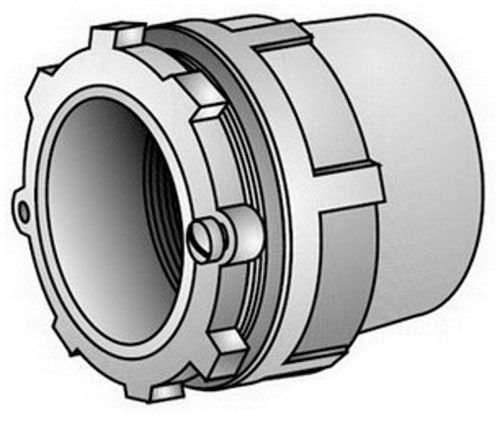

CH-100T, IMC/Rigid Conduit Space-Maker Hub – Conduit Fitting
The CH-100T Space-Maker Hub by O-Z Gedney is designed for use with rigid metal conduit (RMC) and intermediate metal conduit (IMC). This insulated throat fitting features a neoprene gasket and a bonding screw to ensure secure ground continuity and vibration-resistant connections. Suitable for electrical distributors and switchgear suppliers, it provides a compact, watertight conduit hub solution for heavy wall cabinets and service entrance conduit applications.
Specifications
- Application: For Rigid Conduit And IMC
- Connection: 1-11-1/2 Female Tapered NPSM
- Material: Neoprene (Gasket)
- Product Weight: 0.3700 lbs
- Manufacturer Part #: CH-100T
- Manufacturer: O-Z Gedney
Features
- Insulated throat form fitting with bonding screw for assured ground continuity
- Provides a vibration-resistant connection
- Neoprene gasket for watertight seal
- Compact design saves space in conduit installations
- Suitable for use with service entrance conduit
