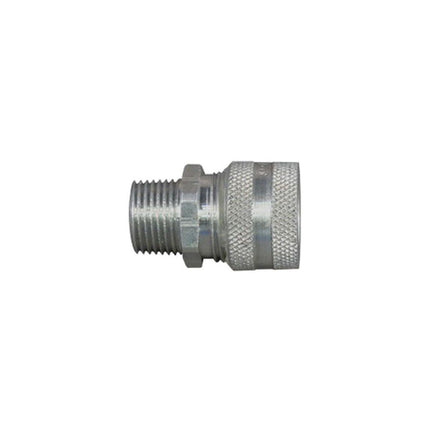

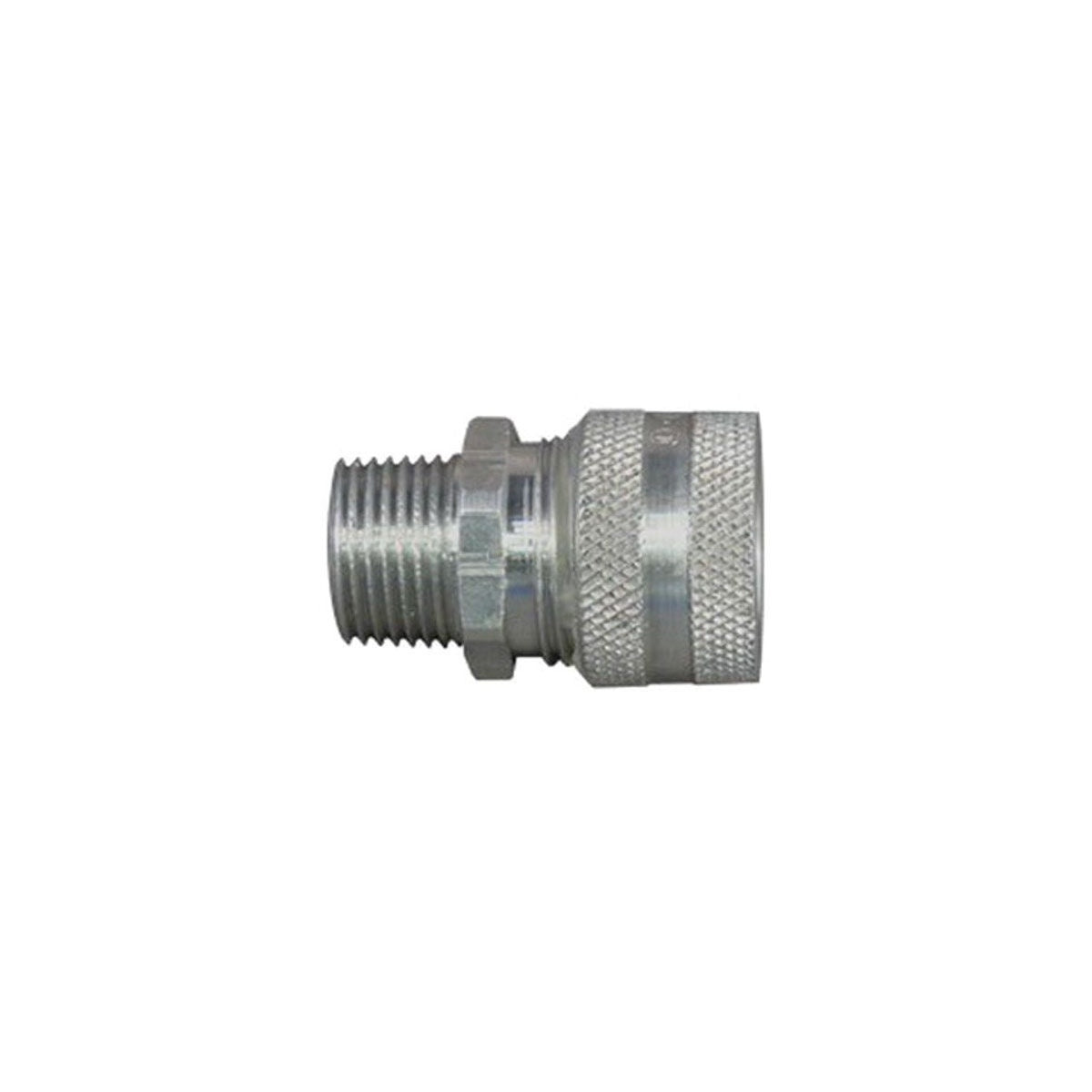

CG3150 Liquid Tight Cord/Cable Connector – Electrical Distributor Solution

The Appleton CG3150 is a liquid tight strain relief cord and cable connector designed for flexible neoprene, hypalon, and PVC jacketed power or control cords and cables. It provides a secure, liquid tight termination suitable for use in both wet and dry locations, effectively sealing electrical connections against dust, dirt, oil, water, and other moisture-containing atmospheres. This connector is ideal for electrical distributors and lighting solutions providers requiring reliable wire and cable management in demanding environments.

Specifications

• Material: Aluminum (Body)
• Manufacturer: Appleton
• Manufacturer Part Number: CG3150
• Product Weight: 0.0600 kg
• Cable Diameter Range: 0.312 ‚Äì 0.437 inches (as per CG-3150 catalog data)
• Dimensions: Length approx. 20.6 mm (0.81 in), Width approx. 23.9 mm (0.94 in)
• UL Standard: 514B (per Appleton standards)
• UL Listed: E14817
• CSA Standard: C22.2 No. 18.3
• CSA Certified: 065178
• Suitable for use in Class I, Division 2; Class II, Division 1 and 2; Class III; NEMA 3R environments

Features

• Provides liquid tight and strain relief termination for flexible power and control cords
• Seals electrical connections against dust, dirt, oil, water, and moisture
• Constructed with aluminum body for corrosion resistance and durability
• Neoprene sealing grommet grips cable jacket to provide strain relief and protect internal wiring
• Steel or Teflon washer reduces friction and ensures even pressure distribution, preventing leakage
• Available in straight construction for cable diameters from 1/4‚Äù thru 4‚Äù
• Silicone free construction suitable for industrial applications
• Color-coded identification label for easy catalog and cable diameter reference
