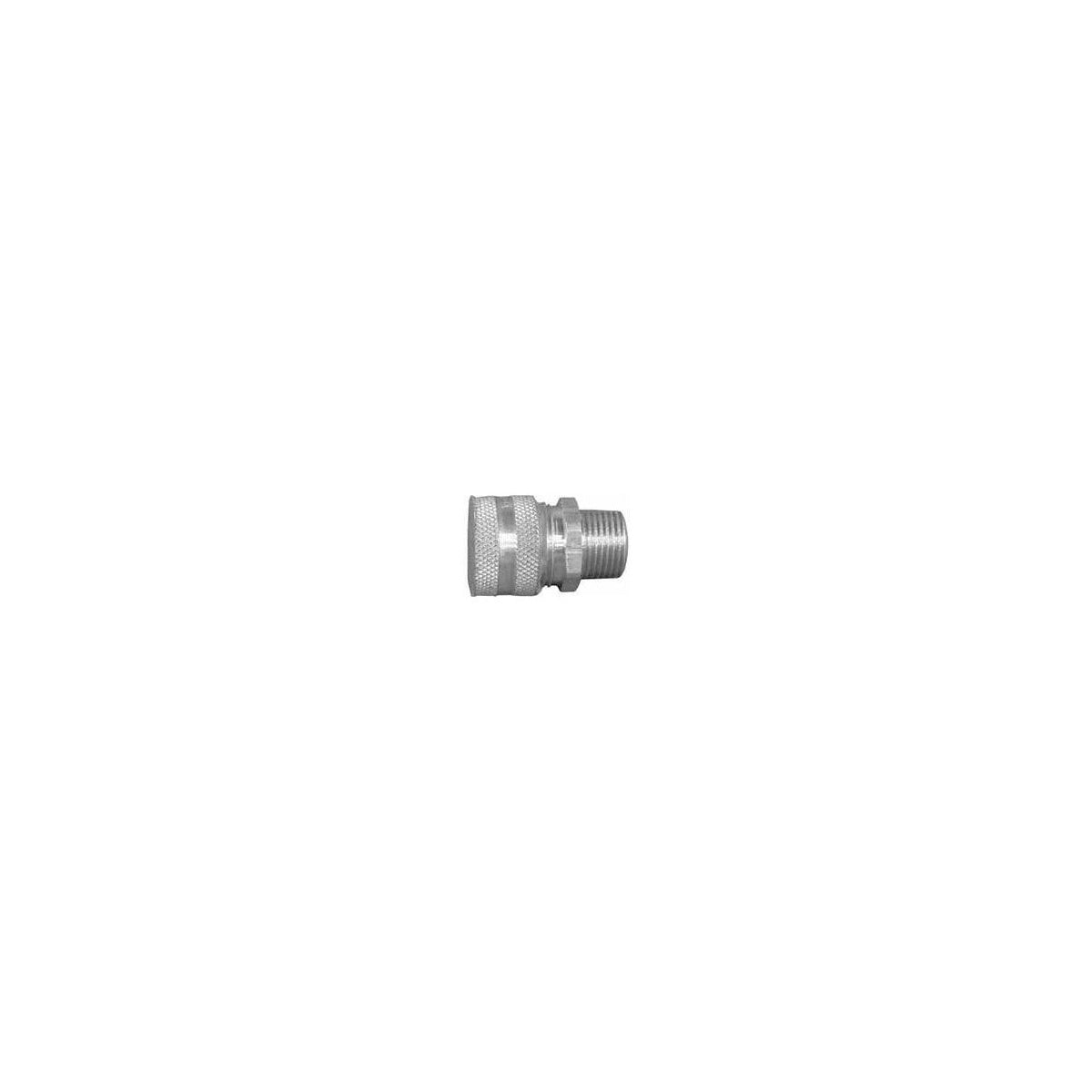

The CG300350 is a liquid tight cord and cable connector designed for secure and reliable electrical connections in commercial and industrial applications. Manufactured by Appleton, this straight male connector provides strain relief and sealing for flexible neoprene, hypalon, and PVC jacketed power or control cords. It is suitable for use in dry and wet locations, protecting wiring connections against dust, dirt, oil, water, and moisture. This connector meets NEC/CEC standards and is UL 514B and CSA C22.2 approved, making it ideal for applications requiring Class I Division 2, Class II Division 1 and 2, Class III, and NEMA 3R enclosure ratings.

Specifications

• Material: Aluminum (Body), Copper-Free Aluminum (Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer)
• Cord Size: 3.39 inches
• Thread Size: 3-1/2 Inch
• Diameter: 4.75 inches
• Product Weight: 2.38 lbs
• Approvals: UL 514B, CSA C22.2
• Application: Dry/Wet Location, Commercial and Industrial
• Enclosure Rating: Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R
• Applicable Standards: NEC/CEC

Features

• Provides liquidtight and strain relief termination for flexible power or control cords
• Neoprene sealing grommet grips cable jacket to prevent external tension damage
• Steel or Teflon washer reduces friction, ensuring even pressure distribution and eliminating leakage
• Constructed with durable aluminum body and copper-free aluminum cap for corrosion resistance
• Suitable for use in harsh commercial and industrial environments
• Silicone-free construction
