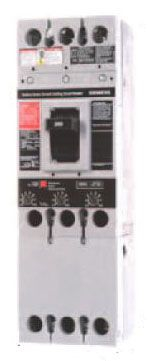

CFD63B200, Molded Case Circuit Breaker
CFD63B200, Molded Case Circuit Breaker
Total Price: $14,689.80 per each Sold in increments of 1 each
Description
Features
- Low Voltage Molded Case Circuit Breaker
- RoHS Compliant
Additional Information
- Label Color Red
Specifications
- Type: Thermal Magnetic, Fuseless Current Limiting
- Frame Type: FD
- Voltage Rating: 600 Volt AC, 500 Volt DC
- Maximum AC Voltage Rating: 600 Volt
- Maximum DC Voltage Rating: 500 Volt
- Current Rating: 200 Amp
- Number of Poles: 3
- Interrupting Rating: 200 Kiloamp at 240/480 Volt AC (UL 489), 100 Kiloamp at 600 Volt AC (UL 489), 50 Kiloamp at 500 Volt DC (UL 489)
- Terminal Type: Line/Load Lug
- Size: 4.5 Inch Width x 5.25 Inch Depth x 14.25 Inch Height
- Approval: UL 489, IEC 947-2
- Series/Model: CFD6-A
Downloads
CatalogInstallation/Operator
Brochure
More Information
Manufacturer Catalog Number
CFD63B200
Weight
15.0000
Current
200 amperes
Number Of Poles
3
Product Size
14.25 inches
Voltage
500 volts
