Specifications

General Information

• Lamp Type: F28T5
• Number of Lamps: 1/2 piece/unit
• Ballast Type: Electronic Fluorescent
• Base Model: ICN2S28N
• Suitable For Outdoor Use: Yes
• Automatic Restart: Yes

Operating and Electrical

• Input Voltage: 120 to 277 V
• Input Frequency: 50 to 60 Hz
• Total Harmonic Distortion USA: 10 %
• Ignition Method: Programmed Start
• Crestfactor (Nom): 1.7
• Ignition Time (Nom): 1.5 s
• Ballast Factor (Nom): 1.03
• Power Factor (Nom): 0.98
• Input Current (Max): 0.53 A
• Input Current (Min): 0.23 A
• Input Power (Nom): 63-62 W
• Rated Lamp Power: 28 W

Wiring

• Color Input Terminals: No terminals
• Color Output Terminals: No terminals
• Wire Striplength: 0.50/0.375 mm
• Lamp Connection: Series
• Wire Length by Color: See data sheet
• Wire Gauge (Nom): 18AWG mm
• Wire Type: Solid
• Remote Wiring Configuration Allowed: Yes
• Tandem Wiring Configuration Allowed: Yes
• Through Wiring Configuration Allowed: Yes
• Max Ballast-Lamp Distance Remote Wiring: 20'
• Max Ballast-Lamp Distance Tandem Wiring: Blue = 10'
• Max Ballast-Lamp Distance Through Wiring: Blue = 10'
• Connector Type: No connector

Temperature

• T-Case Maximum (Nom): 70 °C

Mechanical and Housing

• Housing Material: Metal
• Housing: N
• Housing Dimensions: 9.5" x 1.3" x 1.0"

Approval and Application

• EMC Immunity Standard: FCC Non-Consumer
• Approval Marks: CSA certificate
• Hum And Noise Level: A
• UL Recognized: No

Product Data

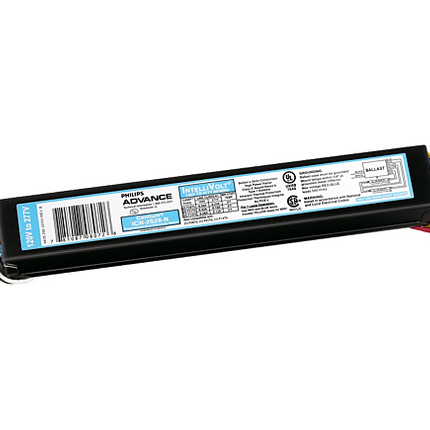

• Order product name: CENTIUM ICN2S28N35I
• EAN/UPC - Product: 781087080726
• Order code: 913710891601
• Numerator - Quantity Per Pack: 1
• Numerator - Packs per outer box: 10
• Material Nr. (12NC): 913710891601
• Net Weight (Piece): 373.000 g
