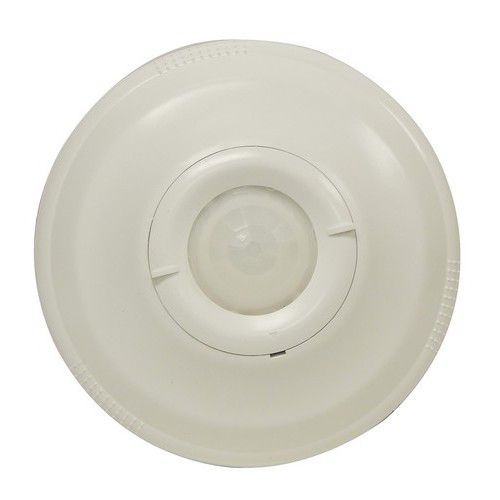

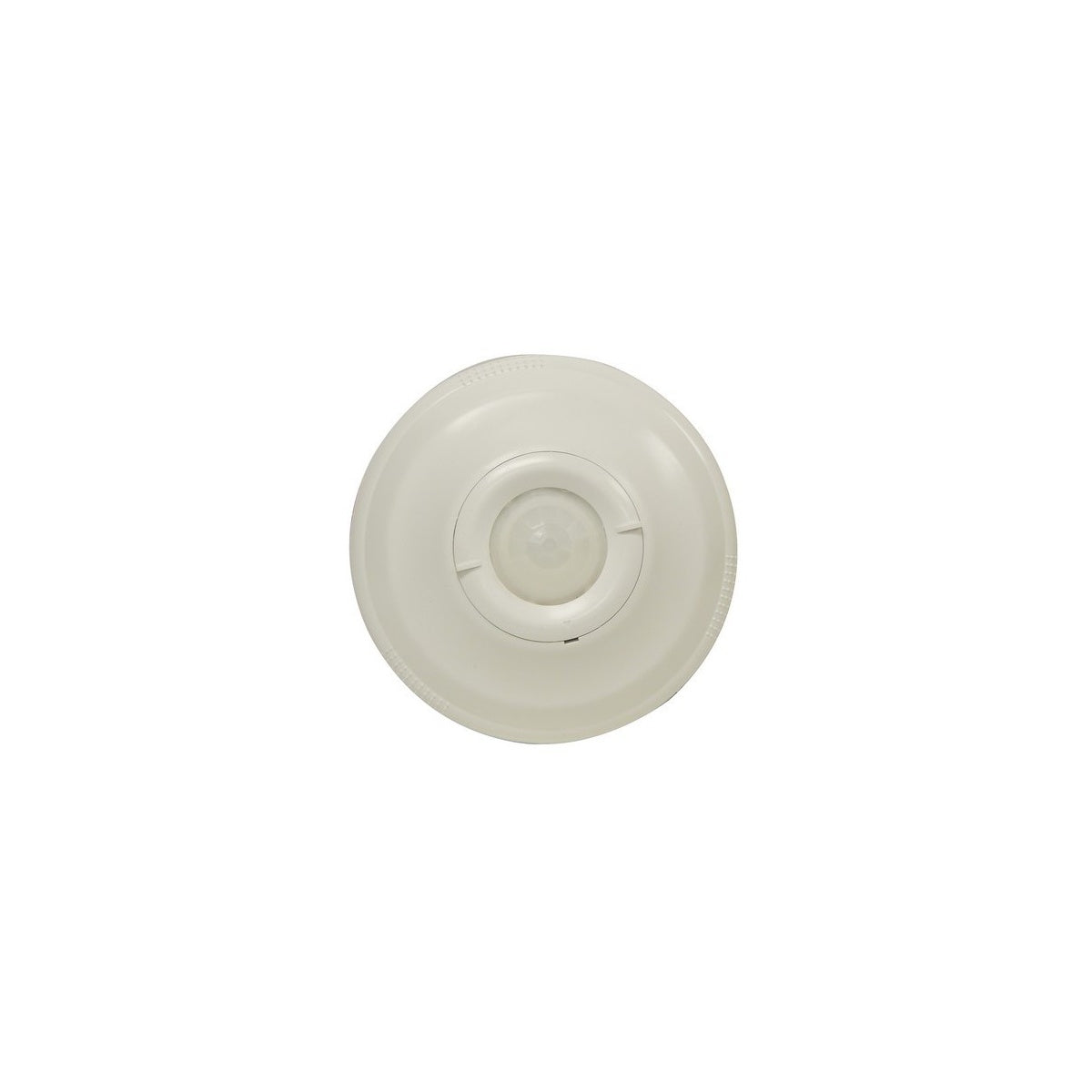

Ceiling Sensor Switch - PIR White | Occupancy Sensor Lighting Solutions

The Ceiling Sensor Switch - PIR White is a ceiling-mounted occupancy sensor designed to replace standard light or fan switches. It is ideal for applications in private offices, conference rooms, break rooms, lounges, and storage areas. This sensor uses passive infrared (PIR) technology to detect occupancy and automatically control lighting, contributing to energy savings. Suitable for electrical distributors and lighting solutions providers, it integrates with existing wire and cable infrastructure and switchgear systems.

Specifications

• Voltage: 120/277VAC, 60Hz
• Load Requirements: 120V 800W incandescent lamp, 800VA fluorescent lamp, 277V 1200VA fluorescent lamp
• Load Horsepower: 1/6 HP
• Time Delay Adjustment: Fixed 15 seconds to 30 minutes
• Operating Temperature: -32¬∞ to 131¬∞F (0¬∞ to 55¬∞C)
• Operation Humidity Range: 95% RH, non-condensing
• Coverage Range: Up to 15 ft mounting / 360 degrees
• Terminal Line: Black-Hot, White-Neutral, Red-Load
• Size: 2.36" H x 4.92" D (5.99 cm x 12.5 cm)
• Weight: 5.64 oz (1.26 lbs as per product info)
• Material: Polycarbonate
• Color: White
• Manufacturer Part #: 80552

Features

• Passive Infrared (PIR) sensor detects occupant movement to control lighting automatically
• Self-contained relay switches connected lighting load on/off based on occupancy
• Internal timer factory-set at 15 seconds, adjustable up to 30 minutes
• Suitable for 120/277VAC line voltage wiring
• Designed for energy savings by reducing unnecessary lighting usage
• Coverage up to 15 ft with 360-degree detection angle
• Durable polycarbonate housing in white finish for ceiling installation
• UL Listed and compliant with Title 24 energy saver standards

Downloads & Links

• Spec Sheet
