Features

• The Heaters Fan Waits Until the Desired Temperature is Achieved before Blowing Air into the Room, and Discharges All Residual Heat before Shutting Off
• Choose a Narrow Pattern to Focus Heat on One Particular Area, or a Wide Pattern to Blanket More Area
• Asymmetrical Heating Patterns Focus Output While Still Providing Generous Coverage

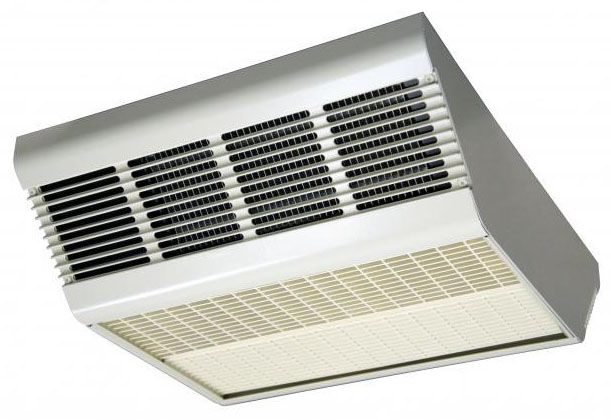

• Included Thumb Pins Hold the Unit Together, Freeing Both Hands for Installation on the Ceiling Surface or within an Enclosure

Additional Information

• Grille Finish Phosphatized Baked Enamel

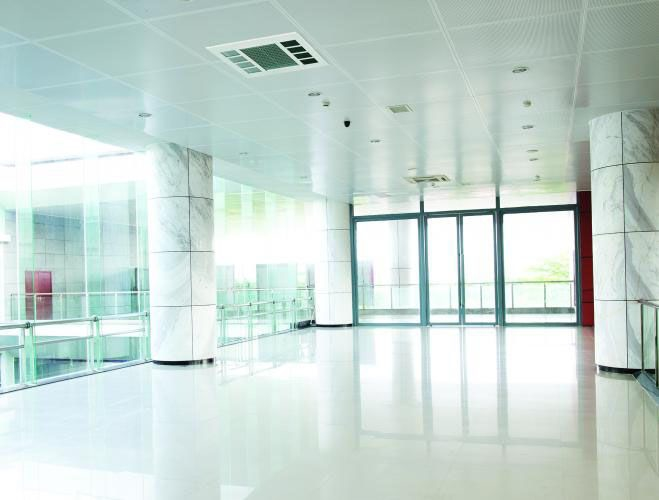

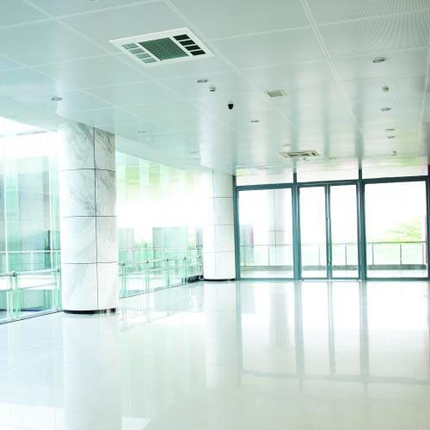

• Application Vestibules, Hallway, Workshop, Restroom, Entryway

Specifications

• Type: Commercial, Industrial
• Voltage Rating: 208 V
• Current Rating: 12/18.3/24 Ampere
• Power Rating: 2.5/3.8/5 KW
• Number of Phases: 1, 3
• Heating Capacity: 8.5/13/17.1 KBTU/Hr

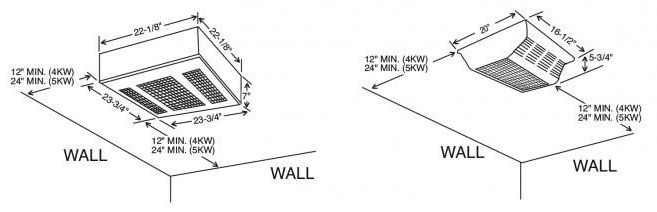

• Housing Size: 20 Inch L x 16-1/2 Inch W x 5-3/4 Inch D (Surface Mount), 23-3/4 Inch L x 23-3/4 Inch W x 7 Inch D (Recess Mount)
• Material: 20 Gauge Galvanized Steel
• Color: Navajo White (Grill)
• Heating Element: Tubular Sheathed Steel, Copper Brazed Steel Fin
• Control Type: Built in Fan Delay, Automatic Thermal Cutout
• Fan/Motor Type: 5 Bladed Aluminum Fan, permanently Lubricated Motor, Totally Enclosed Motor
• Air Flow Rate: 300 CFM

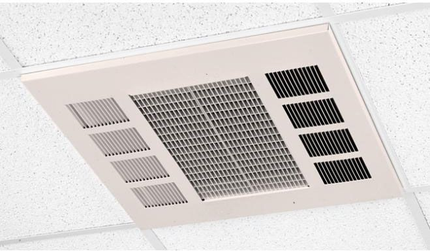

• Mounting: Recessed/Surface/T Bar
• Approval: UL (Canada and US)
• Series/Model: CDF
