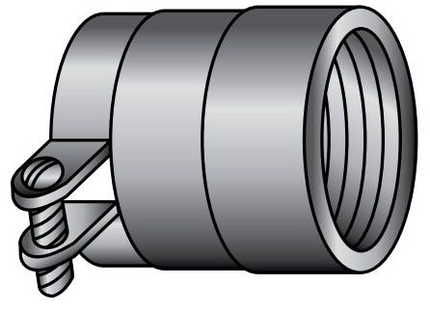

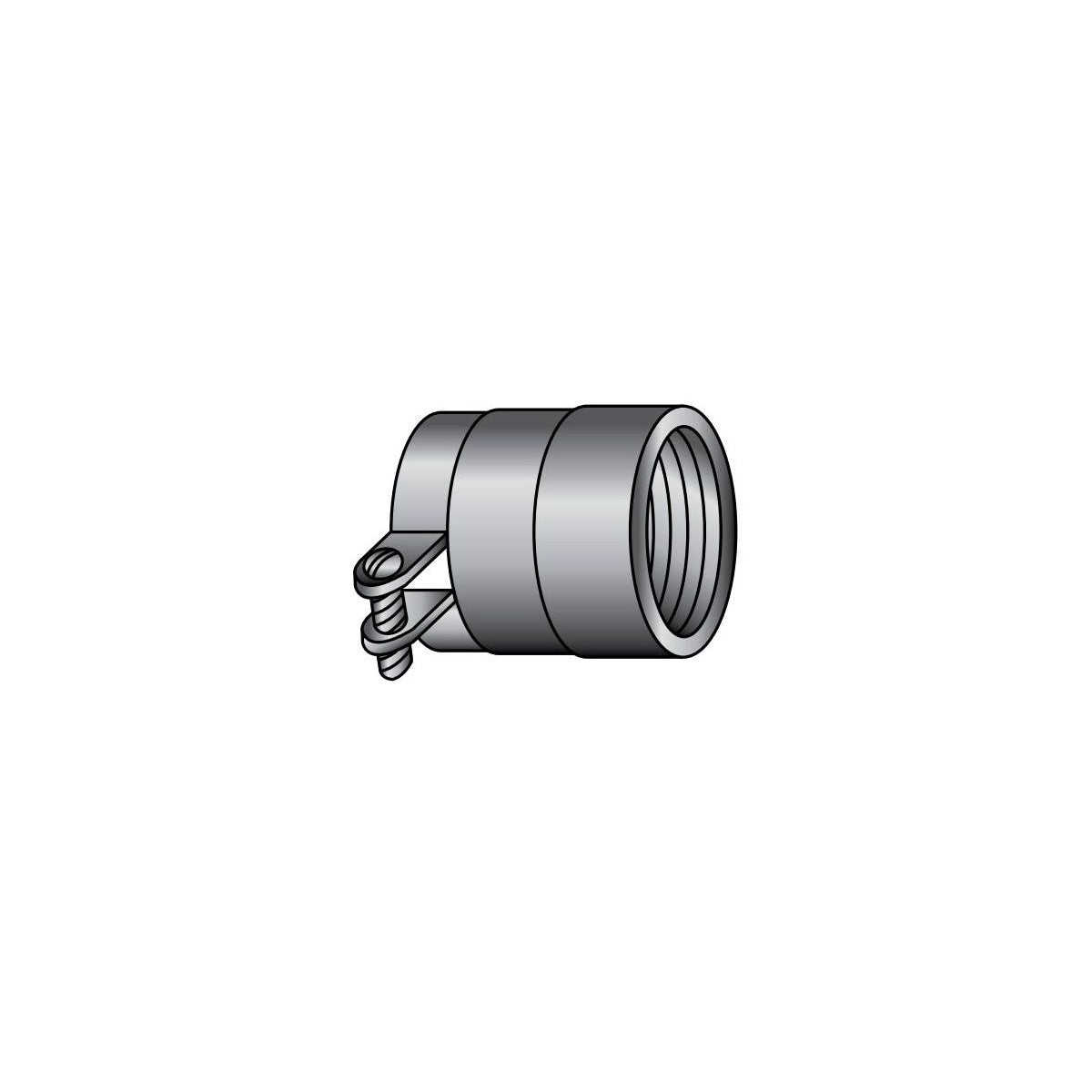

CB-75 IMC/Rigid/Flexible Metal Conduit Transition Coupling

The CB-75 is a transition coupling designed for connecting rigid metal conduit (RMC) and intermediate metal conduit (IMC) to flexible metal conduit. It is suitable for electrical distributors and lighting solutions requiring secure conduit transitions. This product is commonly used in wire and cable installations where flexible conduit connections are needed, serving as a reliable component from a recognized switchgear supplier.

Specifications

• Name: CB-75, IMC/Rigid/Flexible Metal Conduit Transition Coupling
• Application: For Rigid Conduit And IMC To Flexible Metal Conduit
• Material: Malleable Iron
• Connection: FNPT Hub X Screw Clamp
• Length: 1-3/4 IN
• Outside Diameter: 1-1/2 IN
• Flexibility Range: 29/32 - 1-5/64 IN
• Product Weight: 0.2750 lbs
• Manufacturer: O-Z Gedney
• Manufacturer Part #: CB-75

Features

• Threaded RMC and IMC to Flexible Metal Conduit connection
• Female hubs with National Pipe Thread (NPT)
• Constructed of durable malleable iron
• Screw clamp design for secure flexible conduit attachment
• Compact size suitable for commercial and industrial electrical installations

Available Documents

• Commercial and Industrial Fittings Catalog – PDF (page 383)
