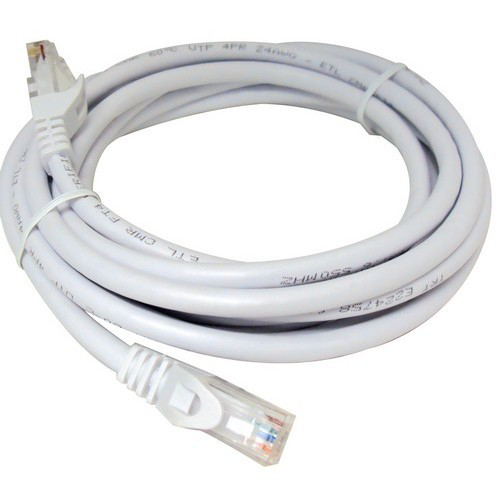

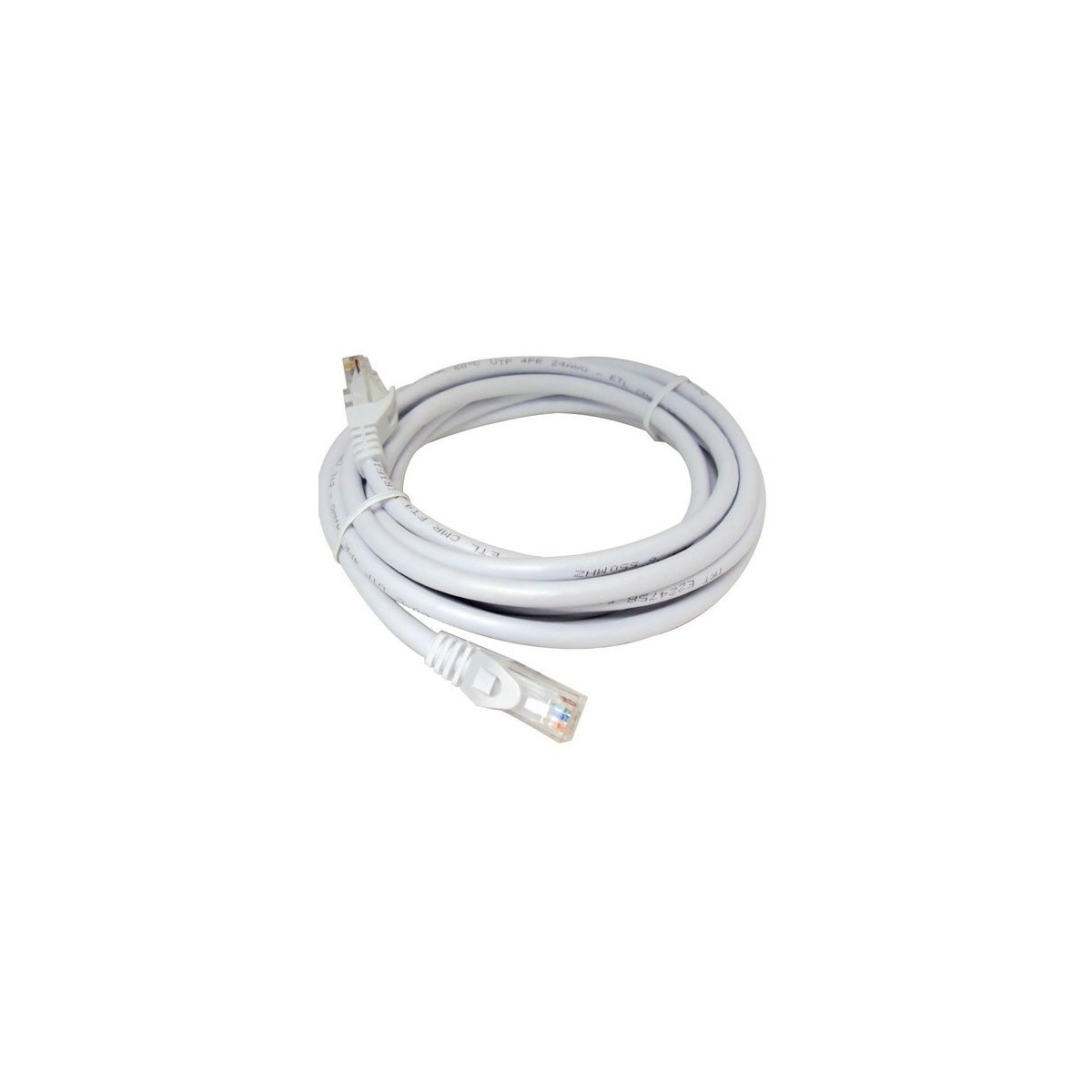

Cat6 UTP Patchcords 5' - High Speed Data Network Cable

Cat6 UTP Patchcords 5' are designed for high-speed data networks, providing reliable connectivity solutions for electrical distributors and lighting solutions providers. These patch cords are suitable for wire and cable installations requiring Cat6 performance standards, ensuring efficient data transmission in network environments.

Specifications

• Conductor Material: Copper
• Length: 5'
• Color: White
• Bandwidth: 250 MHz
• Data Rate: 10 Gbps
• Conductors: 24 AWG, 4 Pair Stranded Wire
• Connectors: 2 RJ45 Gold Plated 50u 8P8C Plugs
• Compliance: TIA/EIA-568-C-2, ISO 1801 2nd Edition Class E, NEC Article 800
• Product Weight: 0.3600 lbs

Features

• Unshielded Twisted Pair (UTP) design for reduced interference
• Improved insertion loss, return loss, NEXT & FEXT characteristics for higher signal-to-loss ratio
• White color for easy identification in wiring setups
• Compatible with standard RJ45 ports and network equipment
