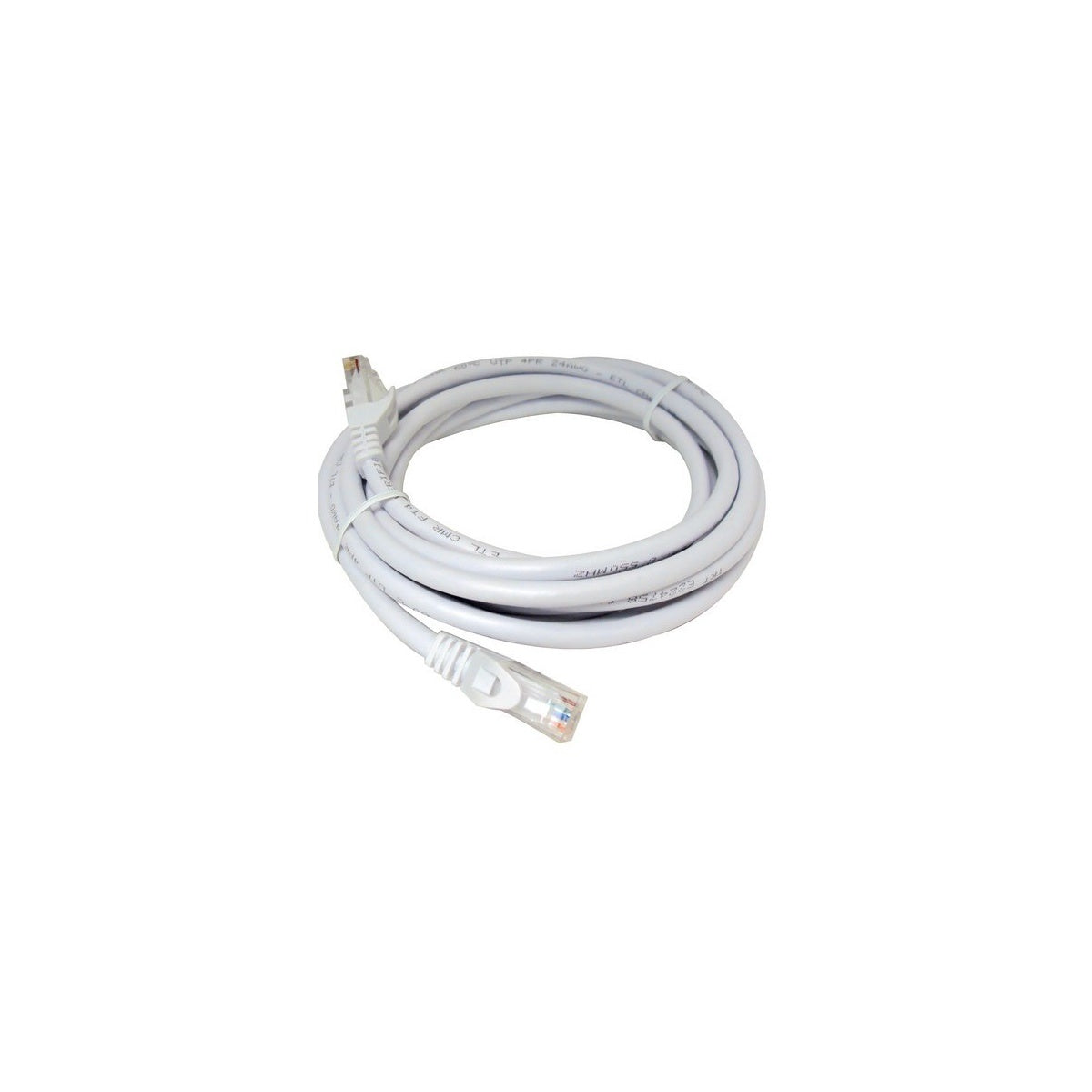

Cat6 UTP Patchcords 14’ – High Speed Data Network Cable

This Cat6 UTP patchcord is designed for high-speed data networks, providing reliable connectivity for electrical distributors and lighting solutions requiring robust wire and cable infrastructure. It supports 10Gbps data transfer rates and operates at a bandwidth of 250 MHz, suitable for demanding network environments.

Specifications

• Conductor Material: Copper
• Length: 14'
• Color: White
• Manufacturer: Morris Products
• Manufacturer Part #: 88460
• Data Rate: 10 Gbps
• Bandwidth: 250 MHz
• Wire Gauge: 24 AWG 4 Pair Stranded Wire
• Connector Type: 2-RJ45 Gold Plated 50u 8P8C Plugs
• Weight: 0.9150 lbs

Features

• Cat6 components provide improved insertion loss, return loss, NEXT, and FEXT characteristics for higher signal-to-loss ratios and network reliability
• Complies with TIA/EIA-568-C-2, ISO 1801 2nd Edition Class E, and NEC Article 800 standards
• Unshielded Twisted Pair (UTP) design for standard network installations
• White color for easy identification in wiring setups

Downloads & Links

• Spec Sheet
