Morris Products
Cat6 (RJ45) Unshielded Keystone Jacks Yellow
SKU: #276131
Part: #88424
UPC: 601986884242
Morris Products
Cat6 (RJ45) Unshielded Keystone Jacks Yellow
SKU: #276131
Part: #88424
UPC: 601986884242
Description

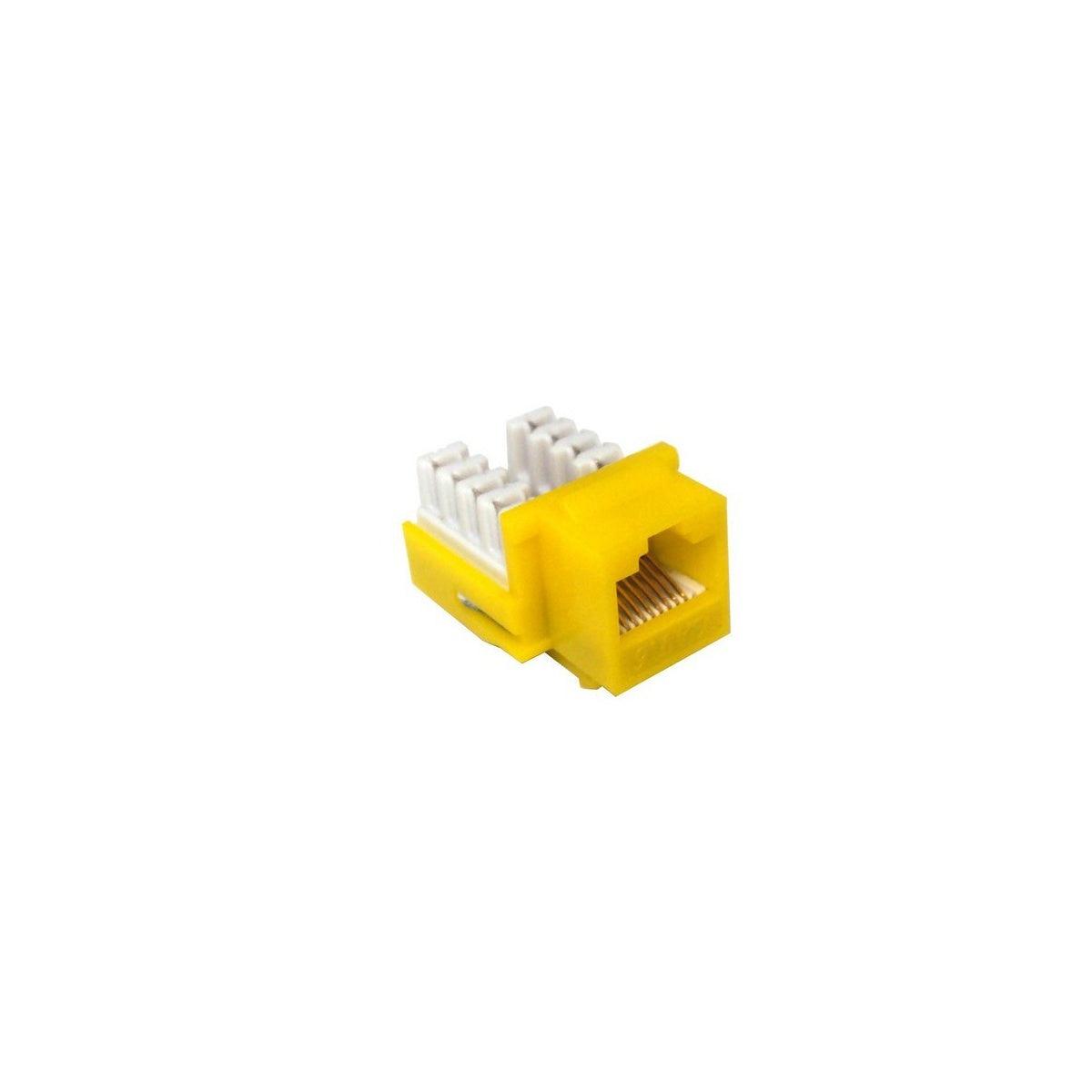

Cat6 (RJ45) Unshielded Keystone Jacks Yellow - Networking Solutions
The Cat6 (RJ45) Unshielded Keystone Jack in yellow is designed for datacommunications applications, providing reliable connections for network infrastructure. Ideal for electrical distributors and lighting solutions providers requiring high-performance wire and cable components, this keystone jack supports up to 10 Gbps data transmission with 250 MHz bandwidth, suitable for commercial and industrial network installations.
Specifications
- Color: Yellow
- Bandwidth: 250 MHz
- Data Rate: 10 Gbps
- Termination: 110 Punchdown & Krone Type
- Conductors: 8 Conductor 22-26 AWG Solid & Stranded Wire
- Wiring Standards: 568A & 568B Color Coded
- Contacts: 50µ Gold Plated
- Flammability Rating: UL94V-0
- Product Weight: 0.0750 lbs
- Manufacturer Part #: 88424
Features
- Unshielded design for standard Cat6 network applications
- Complies with TIA/EIA-568-C-2 and ISO 1801 2nd Edition Class E standards
- Rear conductor termination for ease of installation
- Color-coded for easy identification in wiring installations
- Compatible with standard 19" racks, brackets, and cabinets
