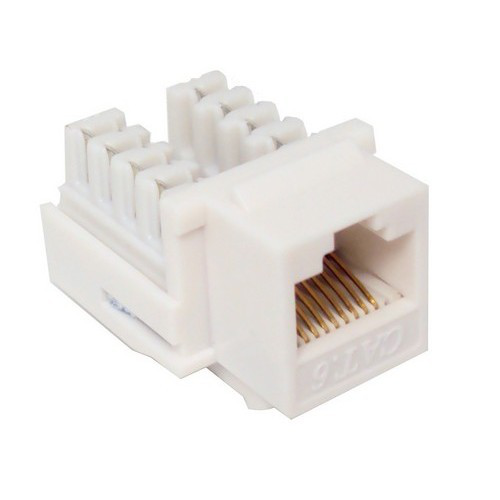

Cat6 (RJ45) Unshielded Keystone Jacks White – Electrical Distributor Connectivity Solutions

The Cat6 (RJ45) Unshielded Keystone Jacks in white are designed for datacommunications applications, providing reliable connectivity for network installations. These keystone jacks support high-speed data transmission up to 10 Gbps and operate at a bandwidth of 250 MHz, making them suitable for use in structured cabling systems in commercial and industrial environments. Ideal for electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers, these jacks comply with key industry standards to ensure network performance and safety.

Specifications

• Category: Cat6 (RJ45) Unshielded Keystone Jack
• Data Rate: 10 Gbps
• Bandwidth: 250 MHz
• Termination Type: 110 Punchdown & Krone
• Conductor Compatibility: 8 Conductor 22-26 AWG Solid & Stranded Wire
• Wiring Standards: TIA/EIA-568A & 568B Color Coded
• Contact Plating: 50μ Gold Plated Contacts
• Flammability Rating: UL94V-0
• Color: White
• Compliance: TIA/EIA-568-C-2, ISO 1801 2nd Edition Class E, NEC Article 800
• Product Weight: 0.25 lbs
• Manufacturer: Morris Products
• Manufacturer Part Number: 88421

Features

• Enhanced insertion loss, return loss, NEXT, and FEXT characteristics for improved signal integrity
• Color-coded wiring for easy and accurate installation
• Compatible with both solid and stranded wire types
• Durable construction with UL94V-0 flame retardant rating for safety
• Gold-plated contacts ensure reliable connectivity and corrosion resistance
• Designed to meet industry standards for network performance and safety

Downloads and Links

• Specification Sheet (PDF)
• Installation Instructions (PDF)
