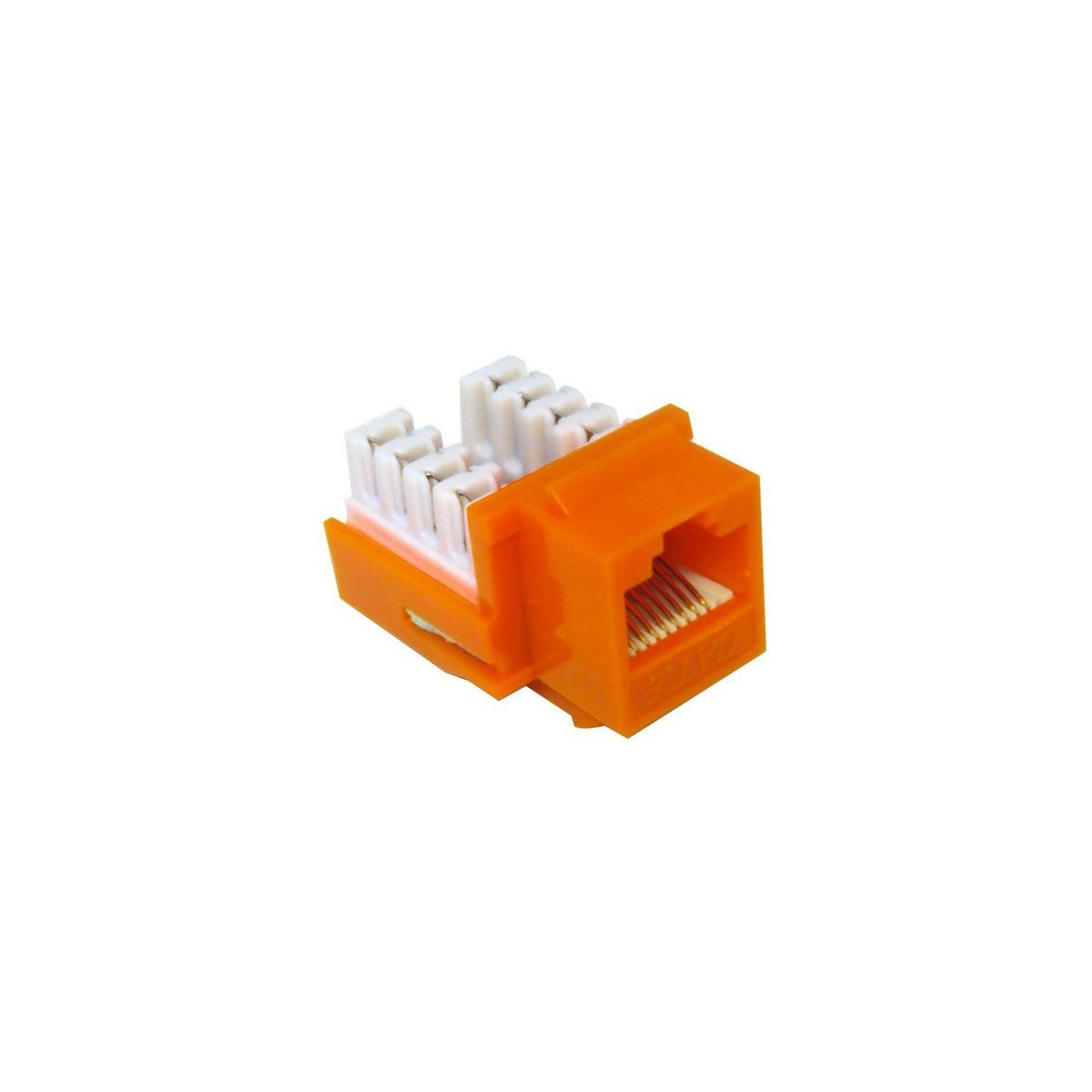

Cat6 (RJ45) Unshielded Keystone Jacks Orange - Keystone Jack for Datacommunications

This Cat6 (RJ45) unshielded keystone jack is designed for datacommunications applications, providing reliable connections for structured wiring systems. Suitable for electrical distributors and lighting solutions providers who require high-performance wire and cable components. It supports Category 6 standards ensuring high-speed data transmission and network reliability for commercial and industrial use.

Specifications

• Category: Cat6
• Connector Type: RJ45 Unshielded Keystone Jack
• Bandwidth: 250 MHz
• Data Rate: 10 Gbps
• Termination: 110 Punchdown & Krone Type
• Conductor Compatibility: 8 Conductor 22-26 AWG Solid & Stranded Wire
• Wiring Standard: 568A & 568B Color Coded
• Contact Plating: 50u Gold Plated Contacts
• Flammability Rating: UL94V-0
• Color: Orange
• Manufacturer Part #: 88427
• Product Weight: 0.0750 lbs

Features

• Improved insertion loss, return loss, NEXT & FEXT characteristics for higher signal-to-loss ratios
• Complies with TIA/EIA-568-C-2, ISO 1801 2nd Edition Class E, and NEC Article 800 standards
• Rear conductor termination for ease of installation
• Fits all standard 19" racks, brackets, and cabinets

Downloads & Links

• Spec Sheet
