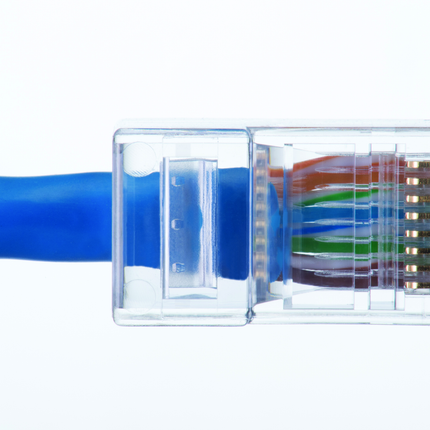

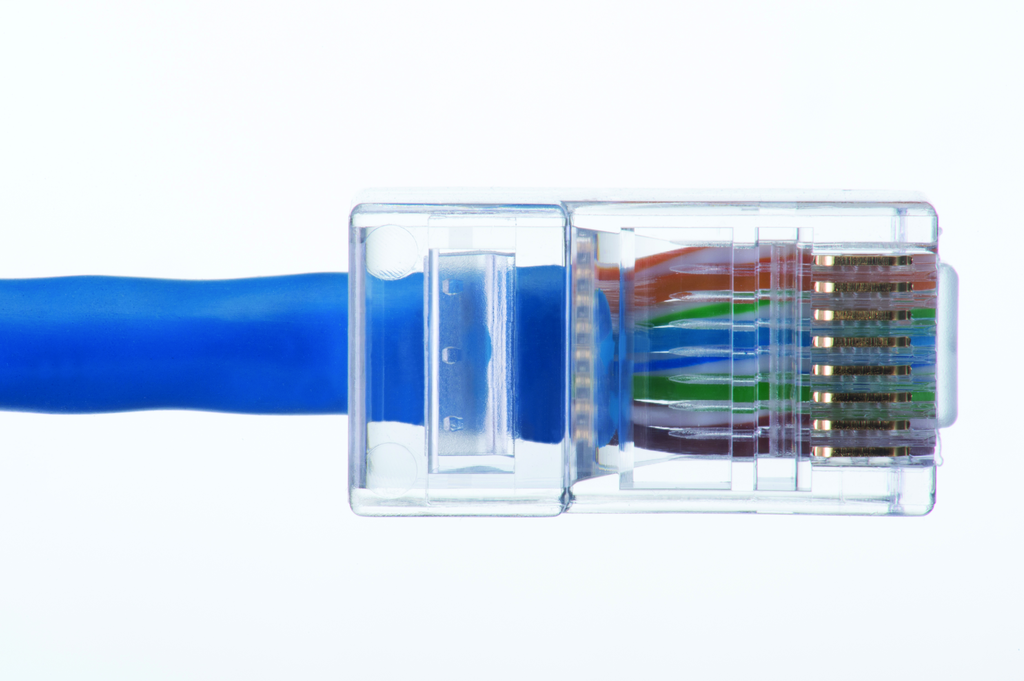

CAT5e Feed-Thru Modular Plugs -50 pk for Network Cable Termination

The IDEAL Industries CAT5e Feed-Thru Modular Plugs provide a streamlined solution for terminating unshielded twisted pair cables used in data and PoE applications. Designed specifically for electrical distributors and lighting solutions providers dealing with wire and cable, these modular plugs enable quick and reliable assembly with a unique feed-thru design that allows verification of conductor order before crimping. This ensures consistent, high-quality terminations suitable for 100MHz CAT5e network performance.

Specifications

• Type: Feed-Thru CAT5e RJ-45 8P8C Modular Plug
• Application: 100MHz CAT5e compatibility
• Conductor Compatibility: Fits most cables with 24 AWG solid/stranded conductors
• Maximum Jacket Diameter: 0.270 inches
• Compatible with 23 AWG solid conductors (CAT6) up to 0.041 inches diameter
• Contact Plating: 50μ gold plated contacts
• Contact Design: 3 prong for secure wire connection
• Package Quantity: 50 pieces per pack
• Manufacturer Part Number: 85-371
• Product Weight: 0.0050 lbs

Features

• Feed-thru design allows visible verification of conductor order and length before crimping, reducing errors and wasted connectors
• Patent-pending flush cut design when used with IDEAL FT-45™ crimp tool (30-495) cuts conductors flush with the plug face, minimizing accidental shorts and improving performance
• Single-piece modular plug construction simplifies assembly with no sleds or liners required
• Allows cable jacket to seat beyond primary strain relief for secure connection and improved near-end crosstalk (NEXT) performance
• Compatible with standard crimp tools, though manual cutting of wire ends is required without FT-45™ tool
