Description
Features
- Requires only a hammer to install
- Rotates 360 degrees to support various directional runs of cable
- Provides optimal support for high-performance data cable, up to and including Cat 5e, Cat 6, Cat 6A, Cat 7 and fibre optic
- Provides superior fill capacity and load rating over most other non-continuous cable support alternatives
- Rounded edges on J-Hooks provide proper bend radius support for high performance data cables
- Cost effective alternative to expensive cable tray
- Complies with EN 50174-2
- Meets ISO®/IEC 14763-2, ANSI®/TIA 568 and ANSI®/TIA 569
Certifications
- cUL - CAN/CSA C22.2 No. 18.4-04
- UL - ANSI/UL 2239
Specifications
- Length: 86.90 millimetre
- Width: 50.80 millimetre
- Height: 111.90 millimetre
- Weight: 0.21 kilogram
- Material: Steel
- Finish: Pregalvanized
- Diameter (Ø): 33.3-33.30
- Area: 1,174
- Cable Capacity, Cat 5e: 50
- Cable Capacity, Cat 6: 40
- Cable Capacity, Cat 6A: 25
- Flange Thickness (FT): 3-8.00
- Static Load (F): 270
- Sub Brand: CADDY
Downloads
Spec SheetBrochure
Cable Support Systems, Featuring the CADDY CAT HP J-Hook System EMEA-EUR English F1185B-WWENÃquipés du système de crochets en J nVent CADDY CAT HP, Systèmes de Support de Câble EMEA-EUR French F1185B-EUFR
nVent CADDY Les fixations en acier resort EMEA-EUR French F1298B-EUFR
nVent âCADDY Spring Steel Fasteners EMEA-EUR English F1298B-EUEN
nVent CADDY Federstahlbefestigungen EMEA-EUR German F1298B-EUGE
Kabeltragsysteme, Mit dem nVent CADDY CAT HP J-Hakensystem EMEA-EUR German F1185B-EUGE
Data And Networking Solutions NAM-US English H86504-USEN
Data And Networking Solutions NAM-CA English H86504-USEN
âCADDY Spring Steel Fasteners - The Brand Story NAM-US English F1298B-NAEN
âCADDY Spring Steel Fasteners - The Brand Story NAM-CA English F1298B-NAEN
Cable Support Systems, Featuring the CADDY CAT HP J-Hook System NAM-US English F1185B-NAEN
Cable Support Systems, Featuring the CADDY CAT HP J-Hook System NAM-CA English F1185B-NAEN
Case Study
Customer-Inspired Solutions - The nVent CADDY Story NAM-US English P65002-USENCustomer-Inspired Solutions - The nVent CADDY Story NAM-CA English P65002-USEN
Catalog
nVent CADDY Fixing, Fastening And Support Products for Electrical Installation and Datacom And Telecom Applications NAM-US English CFC-USENnVent CADDY Fixing, Fastening And Support Products for Electrical Installation and Datacom And Telecom Applications NAM-CA English CFC-USEN
Engineering Specification
Section 27xxx, High-Performance J-Hooks, HPNCCS, Full NAM-US English SPEC-CAT-HP-FULLSection 27xxx, High-Performance J-Hooks, HPNCCS, Full NAM-CA English SPEC-CAT-HP-FULL
Section 27xxx, High-Performance J-Hooks, HPNCCS, Full EMEA-EUR English SPEC-CAT-HP-FULL
Instruction Manual
High Performance nVent CADDY CAT HP J-Hook Assemblies NAM-US English CFS462High Performance nVent CADDY CAT HP J-Hook Assemblies NAM-CA English CFS462
High Performance nVent CADDY CAT HP J-Hook Assemblies EMEA-EUR English CFS462
Technical
Bend Radius Overview NAM-US English F1275W-NAENBend Radius Overview NAM-CA English F1275W-NAEN
Test Report
Institut fur Korrosionschutz Dresden GMBH, Test Report PB300/101/16 NAM-US English PB300-101-16Institut fur Korrosionschutz Dresden GMBH, Test Report PB300/101/16 NAM-CA English PB300-101-16
Institut fur Korrosionschutz Dresden GMBH, Test Report PB300/101/16 EMEA-EUR English PB300-101-16
Data sheet
Data sheet CAT21HP24 English NAM-CA EFSCAT21HP24_engMore Information
Manufacturer Catalog Number
CAT21HP24
Weight
.2100
Length
86.90
Width
50.80
Height
111.90
Country of Origin
United States
Made in USA
Yes
Material
Steel
Finish
Pregalvanized
Recently viewed
-
Sold Out

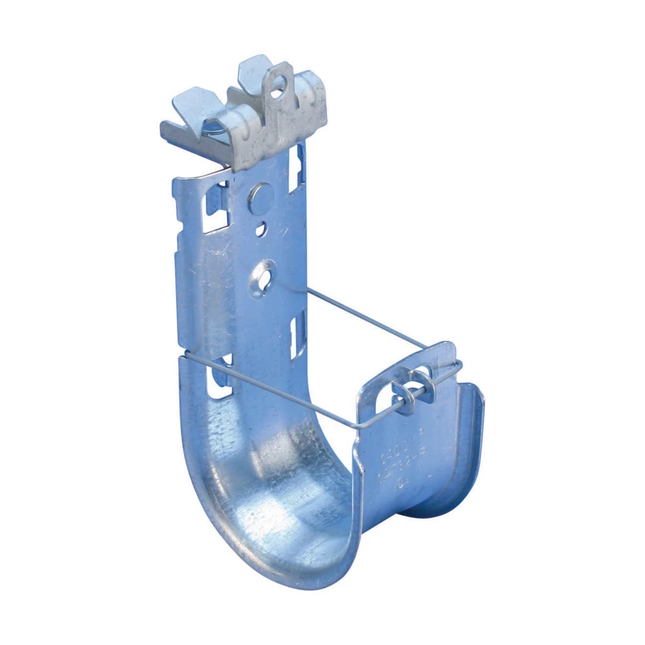

nVent Caddy SKU #285232 Part #CAT21HP24Cat HP 1 5/16" J-hook w/ hammer-on flange, swivel 1/8"–1/4" flange
