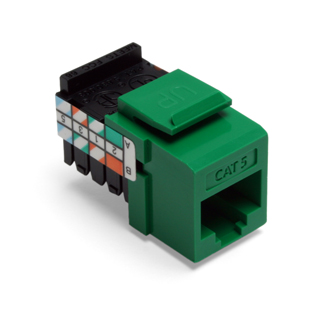

Cat 5 QUICKPORT™ Jack, Green – Category 5 Network Connector

The Leviton Cat 5 QUICKPORT™ Jack is a high-performance snap-in connector designed for use with all QUICKPORT compatible housings, including the Multimedia Outlet System, Decora® inserts, patch panels, and patch blocks. It supports Category 5 UTP applications in various environments such as surface-mount, flush-mount, or modular furniture. This connector is suitable for electrical distributors and switchgear suppliers focusing on reliable data and voice networking solutions.

Specifications

• Manufacturer Part #: 41108-RV5
• Color: Green
• Body Material: High-Impact Fire-Retardant Plastic
• Flammability Class: Rated V-0 Per UL 94
• Country of Origin: United States
• Product Weight: 1.0600 lbs
• Dimensions: 1.18" (length) x 0.83" (height) x 0.64" (width)
• Termination: 110-style IDC with solder-plated phosphor bronze contacts
• Standards Compliance: UL listed; meets or exceeds ANSI/TIA-1096-A

Features

• Dual-color-coded wiring labels supporting T568A and T568B wiring patterns for flexible installation
• Snap-in style connector compatible with QuickPort family housings
• Supports fast, accurate 110 termination of station wiring with integrated wire cut-off ledge
• Available in 13 colors for easy port identification
• Connector body is made of fire-retardant plastic rated UL 94V-0
• Can be used in conjunction with other QuickPort snap-in modules for voice, data, and video applications over UTP, coax, and fiber
• Made in USA
