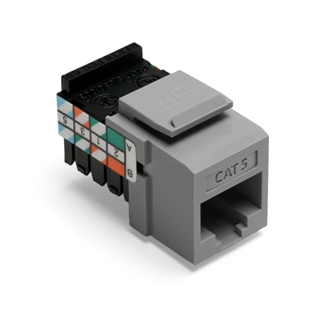

Cat 5 QUICKPORT™ Jack, Gray - Category 5 QuickPort Connector

The Leviton Cat 5 QUICKPORT™ Jack is a Category 5 UTP snap-in connector designed for use with all QUICKPORT compatible housings, including surface-mount, flush-mount, and modular furniture environments. It supports voice, data, fax, and internet applications, making it suitable for electrical distributors and lighting solutions providers offering wire and cable or switchgear components. The connector features dual-color-coded wiring labels for both T568A and T568B wiring patterns, allowing flexible and accurate 110-style IDC termination of station wiring.

Specifications

• Manufacturer: Leviton
• Manufacturer Part #: 41108-RG5
• Body Material: High-Impact Fire-Retardant Plastic
• Color: Gray
• Flammability Class: Rated V-0 Per UL 94
• Dimensions: 1.18" (length) x 0.83" (height) x 0.64" (width)
• Termination: 110-style IDC with solder-plated phosphor bronze contacts
• Weight: 1.06 oz
• Country of Origin: United States
• Standards Compliance: UL listed, meets or exceeds ANSI/TIA-1096-A
• UPC: 078477826539
• Made in USA: Yes

Features

• Dual T568A and T568B wiring labels for flexible installation
• Snap-in style connector compatible with the QuickPort family of housings
• Supports CAT 5 UTP applications for voice, data, and video over UTP, coax, and fiber
• High-impact, fire-retardant plastic body rated UL 94 V-0 for safety
• Provides a ledge adjacent to the 110-style termination for precise wire placement and cutting in one action
• Available in 13 colors for port identification (Gray included)
• Designed for fast, accurate 110 termination, reducing installation time and errors

Downloads & Links

• 41108-RX5
• 41108-RX5
• Leviton 41108-Rx5 CAT 5 UTP Connectors
• Instruction Sheet 41108-RG5
