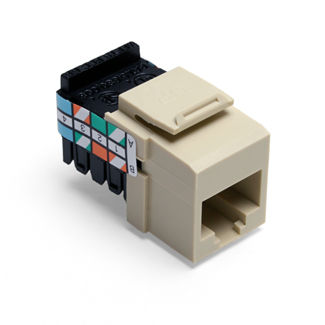

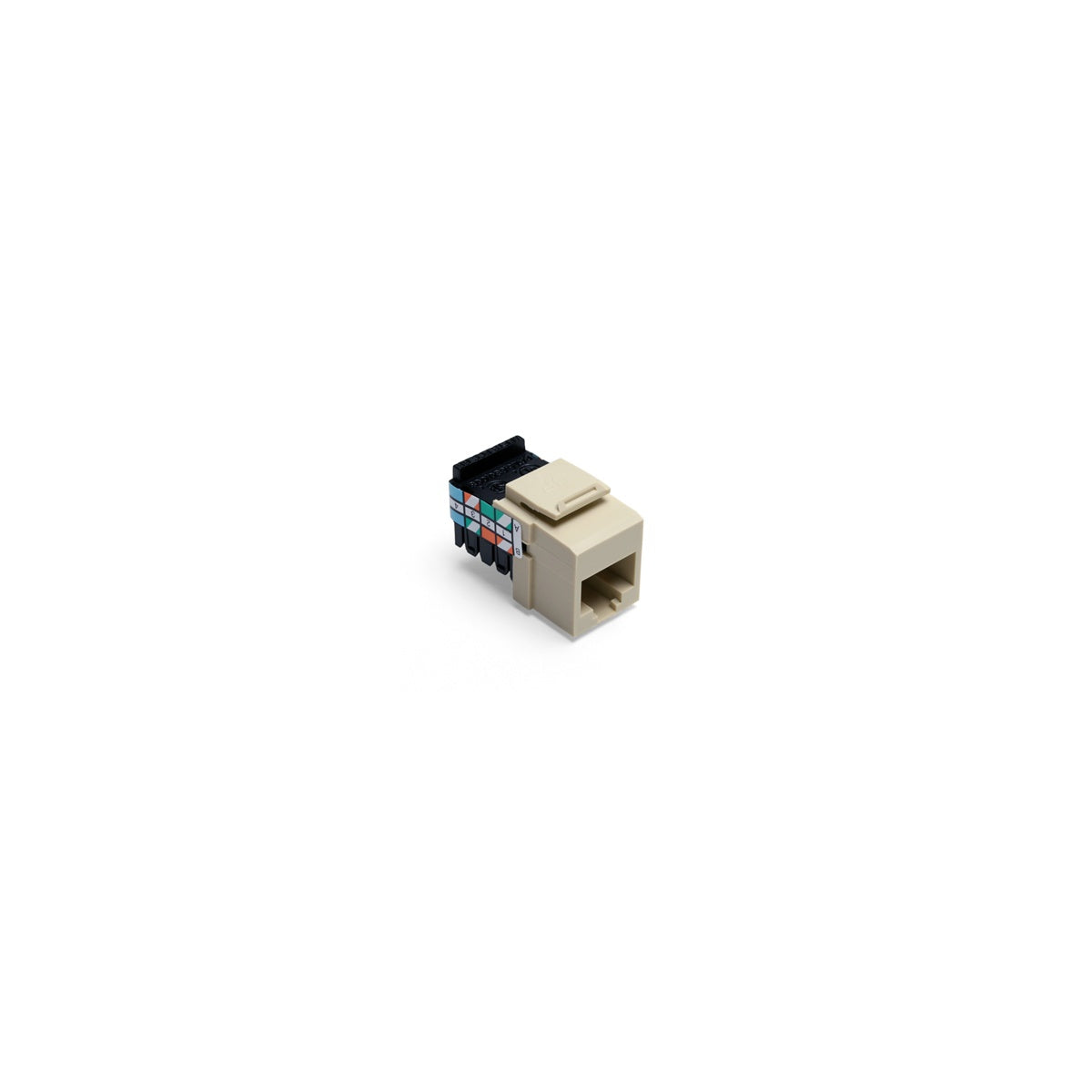

Cat 3 QuickPort Jack, Ivory – Category 3 Connector

The Leviton Cat 3 QuickPort Jack in Ivory is a Category 3 snap-in connector designed for voice-grade applications. It supports T568A and T568B wiring configurations, providing flexibility for electrical distributors, lighting solutions, wire and cable, and switchgear suppliers requiring reliable telecommunications connectivity. Compatible with all QuickPort housings, Multimedia Outlet Systems, patch panels, and patch blocks, this connector facilitates efficient cable termination with a 110-type punchdown tool.

Specifications

• Manufacturer: Leviton
• Manufacturer Part #: 41108-RI3
• Body Material: High-Impact Fire-Retardant Plastic
• Flammability Class: Rated V-0 Per UL 94
• Termination Type: 110-type insulation displacement contact (IDC) with solder-plated phosphor bronze contacts
• Compliance: UL Listed, CSA Certified, ANSI/TIA-568-C, ANSI/TIA-1096-A, NEC Article 800, RoHS 2 (Directive 2011/65/EU)
• Dimensions: 1.18" length x 0.83" height x 0.64" width
• Country of Origin: USA
• Product Weight: 0.0224 lbs

Features

• Dual-color wiring labels for T568A and T568B wiring schemes
• Exclusive cutting ledge allows simultaneous wire termination and trimming in one step
• Robust one-piece lead-frame design ensures durability
• Narrow connector profile enables high port density in compact spaces
• Individual port configurability for flexible system design
• Compatible with standard 110-type termination tools for easy installation

Downloads & Links

• Dimensional Drawing (DXF)
• Dimensional Drawing (DWG)
• Instruction Sheet
• Product Specification and Data Sheet - 41108-Rx3
