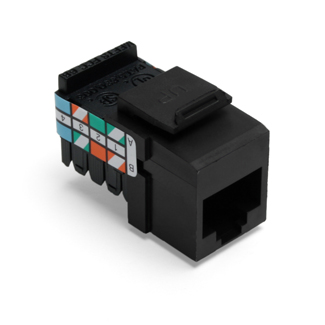

Cat 3 QUICKPORT™ Jack, Black – Category 3 UTP Connector

The Leviton Cat 3 QUICKPORT™ Jack is designed for voice-grade applications and provides reliable connectivity for telecommunications infrastructure. This black Category 3 UTP connector is compatible with all QUICKPORT housings, Multimedia Outlet Systems (with QUICKPORT module adapter), patch panels, and patch blocks, making it suitable for electrical distributors and switchgear suppliers focusing on structured cabling and lighting solutions.

Specifications

• Manufacturer Part #: 41108-RE3
• Color: Black
• Body Material: High-Impact Fire-Retardant Plastic
• Flammability Class: Rated V-0 Per UL 94
• Product Weight: 1.1250 lbs
• Country of Origin: United States
• Compliance: UL Listed, CSA Certified, ANSI/TIA-568-C, ANSI/TIA-1096-A, NEC® Article 800, RoHS 2 (Directive 2011/65/EU)
• Termination: 110-type (IDC) with solder-plated phosphor bronze contacts
• Dimensions: 1.18" (length) x 0.83" (height) x 0.64" (width)

Features

• Supports dual wiring code labels for T568A and T568B wiring schemes
• Exclusive cutting ledge combines termination and trimming in one labor-saving step
• Robust one-piece lead-frame design for durability
• Narrow connector profile allows for high port density in small areas
• Individual snap-in style connector for easy installation and configurability
• Compatible with 110-type termination tools and offers consistent installation method across QuickPort performance grades
• Constructed with fire-retardant plastic rated UL 94V-0 for enhanced safety
