Cast Aluminum Alloy TAPIT™, 1/0 (Str.) AWG-4/0 (Str.) AWG AL & CU (Groove A), 1/0 AWG-4/0 AWG ACSR, AAAC, 5005(Groove A), 8 (SOL.) AWG-1/0 (Str.) AWG AL & CU (Groove B), 6 AWG-1/0 AWG ACSR, AAAC, 5005 (Groove B)
SKU: #331946
Part: #UC28RS
UPC: 781810095805
Cast Aluminum Alloy TAPIT™, 1/0 (Str.) AWG-4/0 (Str.) AWG AL & CU (Groove A), 1/0 AWG-4/0 AWG ACSR, AAAC, 5005(Groove A), 8 (SOL.) AWG-1/0 (Str.) AWG AL & CU (Groove B), 6 AWG-1/0 AWG ACSR, AAAC, 5005 (Groove B)
SKU: #331946
Part: #UC28RS
UPC: 781810095805
Description

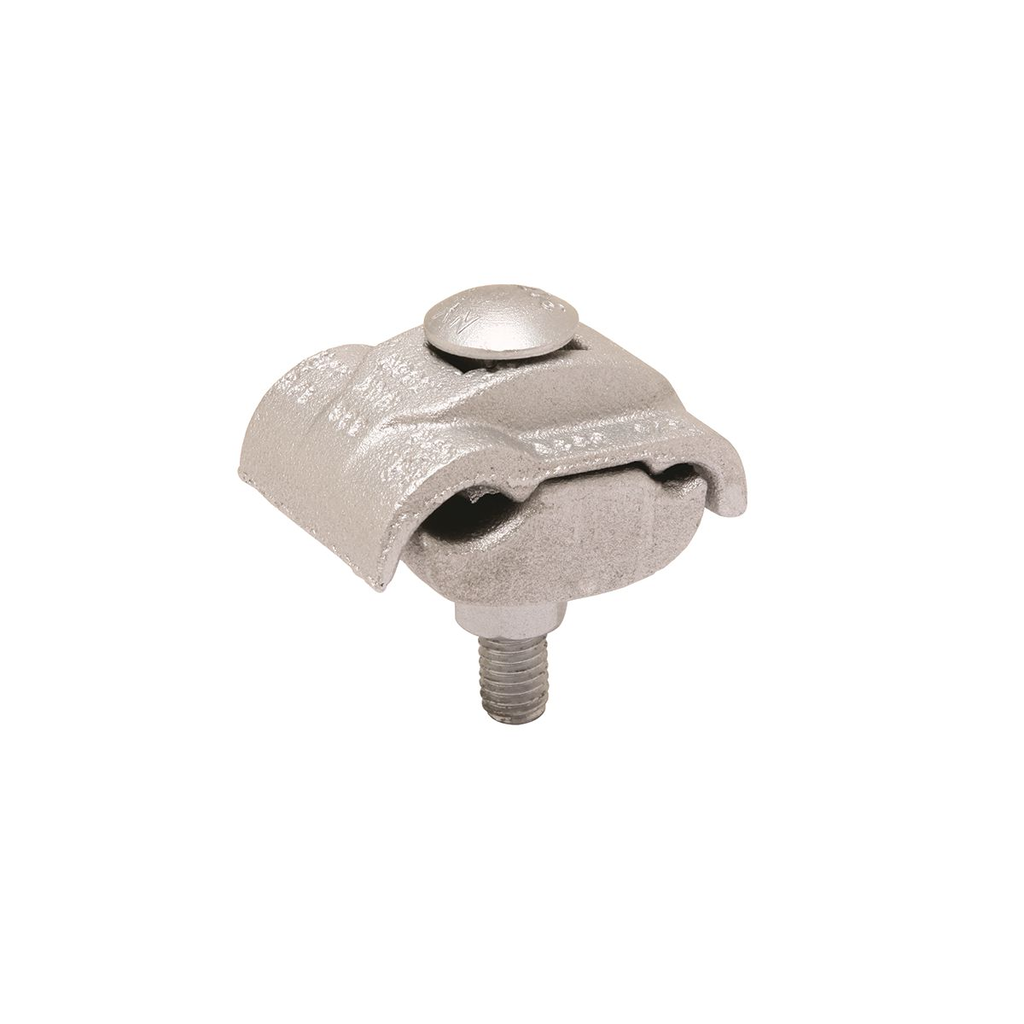

Cast Aluminum Alloy TAPIT‚Ñ¢ UC28RS - Aluminum Tap Connector
The UC28RS Cast Aluminum Alloy TAPIT‚Ñ¢ Tap Connector by Burndy is designed for reliable electrical connections across a wide range of wire and cable types. It supports all combinations of copper, aluminum, ACSR, 6201, and 5005 conductors, making it suitable for electrical distributors and switchgear suppliers requiring versatile lighting solutions and wire and cable connectivity. The connector features a high strength, high conductivity aluminum alloy construction that minimizes stress corrosion and galvanic deterioration.
Specifications
- Application: For All Combinations Of Copper, Aluminum, ACSR, 6201 And 5005
- Material: Aluminum Alloy, Cast
- Width: 1.87 in (47 mm)
- Height: 2.33 in
- Length: 1.375 in
- Product Weight: 0.2300 lb
- Installation Torque: 240 in-lb
- Wrench Size: 9/16 in
- UPC: 781810095805
- Country of Origin: Mexico
- RoHS Compliance: CM
Features
- High strength, high conductivity aluminum alloy construction
- Properly proportioned to minimize stress corrosion and galvanic deterioration
- Compatible with a broad range of conductor sizes and types including 1/0 AWG to 4/0 AWG aluminum and copper stranded, 6 AWG to 1/0 AWG ACSR and AAAC
- Penetrox-lined grooves for improved electrical contact and corrosion resistance
- Designed for use with a 9/16 inch wrench for secure installation
