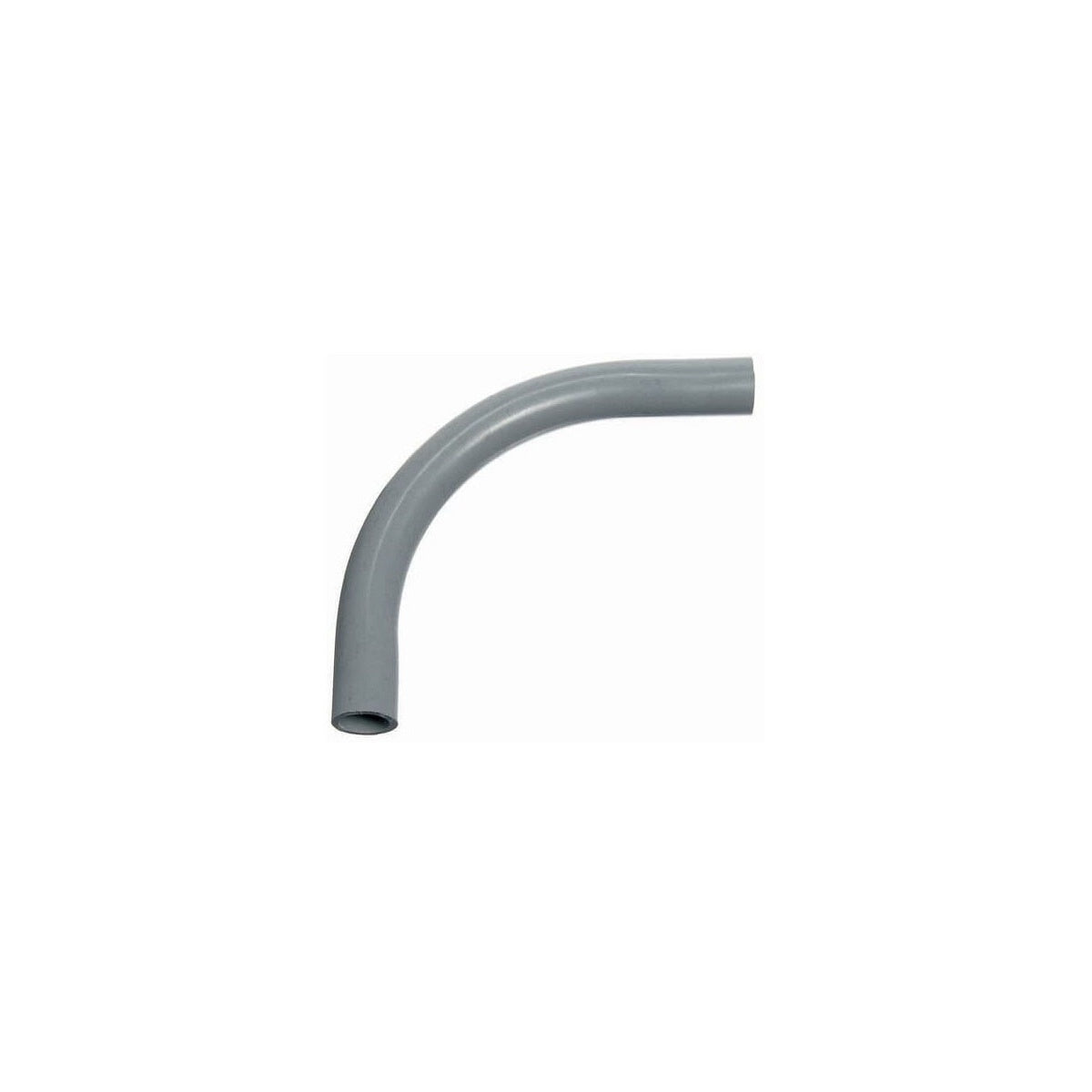

CARLON UB9AJ SCH-80 ELB 2IN 90DEG PVC - Schedule 80 PVC Elbow

The CARLON UB9AJ is a Schedule 80 2-inch 90-degree PVC elbow designed for use in electrical conduit systems. Manufactured from durable PVC, this rigid non-metallic conduit fitting is suitable for both aboveground and underground applications, compliant with the National Electrical Code®. It is ideal for electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers requiring reliable conduit fittings that ensure safe and corrosion-resistant cable routing.

Specifications

• Manufacturer: Carlon Telecom Systems
• Manufacturer Part Number: UB9AJ
• Material: PVC
• Nominal Size: 2 inches
• Bend Angle: 90 degrees
• Bend Radius: Standard
• Outside Diameter: 2.375 inches
• Length (Net Depth): 18.41 inches
• Color: Gray
• Weight: 1.55 lbs
• Standards: UL E323335 Listed
• RoHS Compliant
• Country of Origin: United States
• UPC: 034481063261

Features

• Non-metallic construction provides corrosion resistance and eliminates rust issues
• Lightweight design, approximately ¼ to ⅕ the weight of metallic fittings, enabling faster installation
• Non-conductive material enhances electrical safety in conduit systems
• Suitable for exposed outdoor use with resistance to sunlight and temperature variations
• Compatible with non-metallic solvent weld fittings for secure and reliable joints
• Meets NEMA TC-2 and Federal specification WC1094A requirements
• UL and ETL Listed for quality assurance and code compliance
