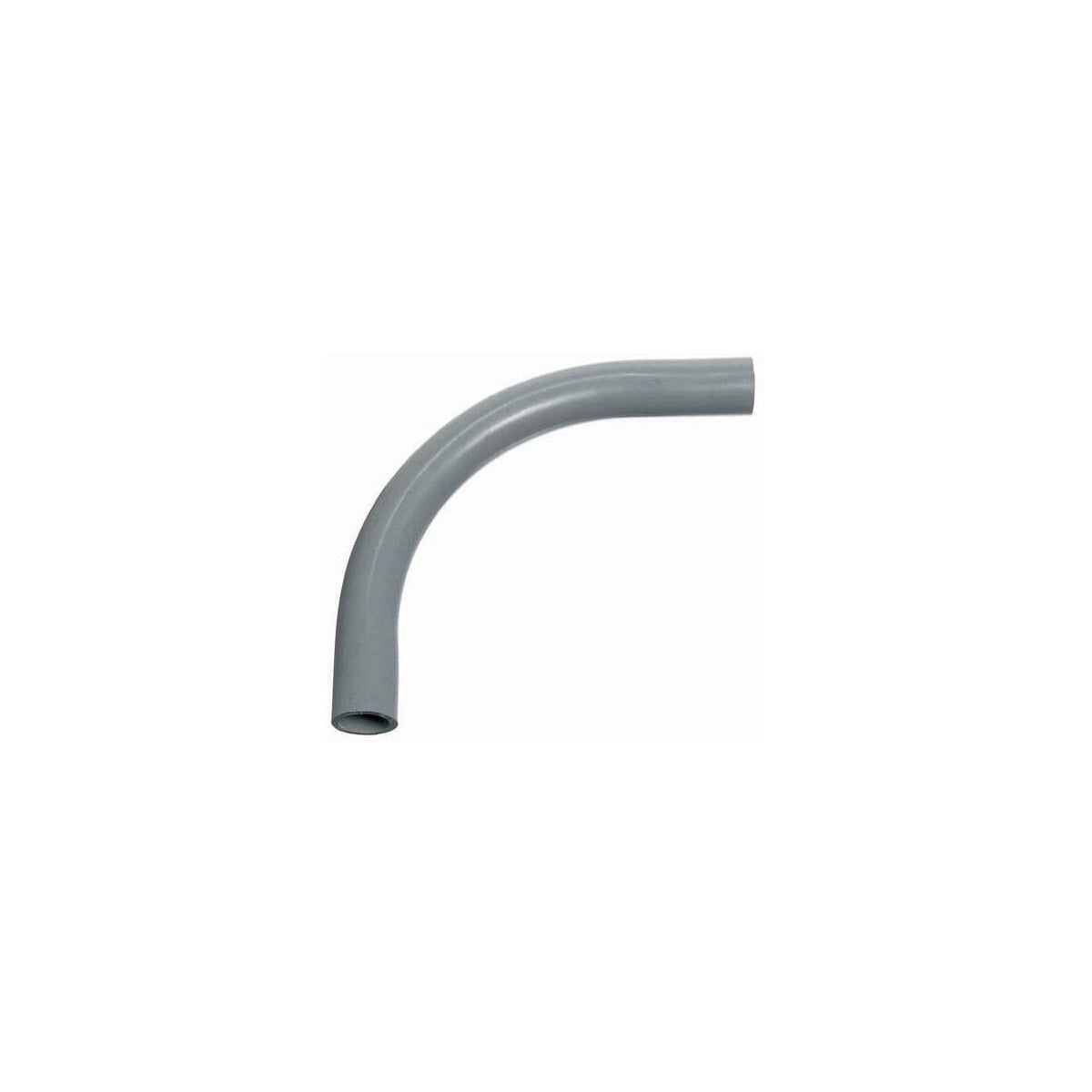

CARLON UA9AG 1-1/4 INCH SCH 40 STD 90 DEG ELBOW - PVC Schedule 40 Elbow

The Carlon UA9AG is a 1-1/4 inch Schedule 40 standard radius 90-degree elbow designed for use with rigid non-metallic conduit systems. Manufactured from durable PVC, this elbow is suitable for both aboveground and underground electrical conduit installations. It provides a reliable bend for cable protection tubes, optimizing wire and cable routing in electrical distribution and lighting solutions. As a component from a trusted switchgear supplier, it ensures corrosion resistance and compliance with UL standards.

Specifications

• Size: 1-1/4 inch
• Material: PVC
• Bend Angle: 90 degrees
• Bend Radius: Standard
• Outside Diameter: 1.66 inches
• Length: 13.88 inches
• Color: Gray
• Weight: 16.82 lbs
• Standards: UL E323335
• Country of Origin: United States
• RoHS Compliant: Yes
• UPC: 034481060444

Features

• Rigid non-metallic conduit elbow designed for wire protection and conduit system integrity
• Lightweight PVC construction reduces installation time compared to metallic systems
• Corrosion resistant and nonconductive for safe electrical installations
• Suitable for both aboveground and underground applications as per National Electrical Code®
• Compatible with solvent weld fittings for secure and durable connections
• UL listed and compliant with federal specifications WC1094A and UL 651
