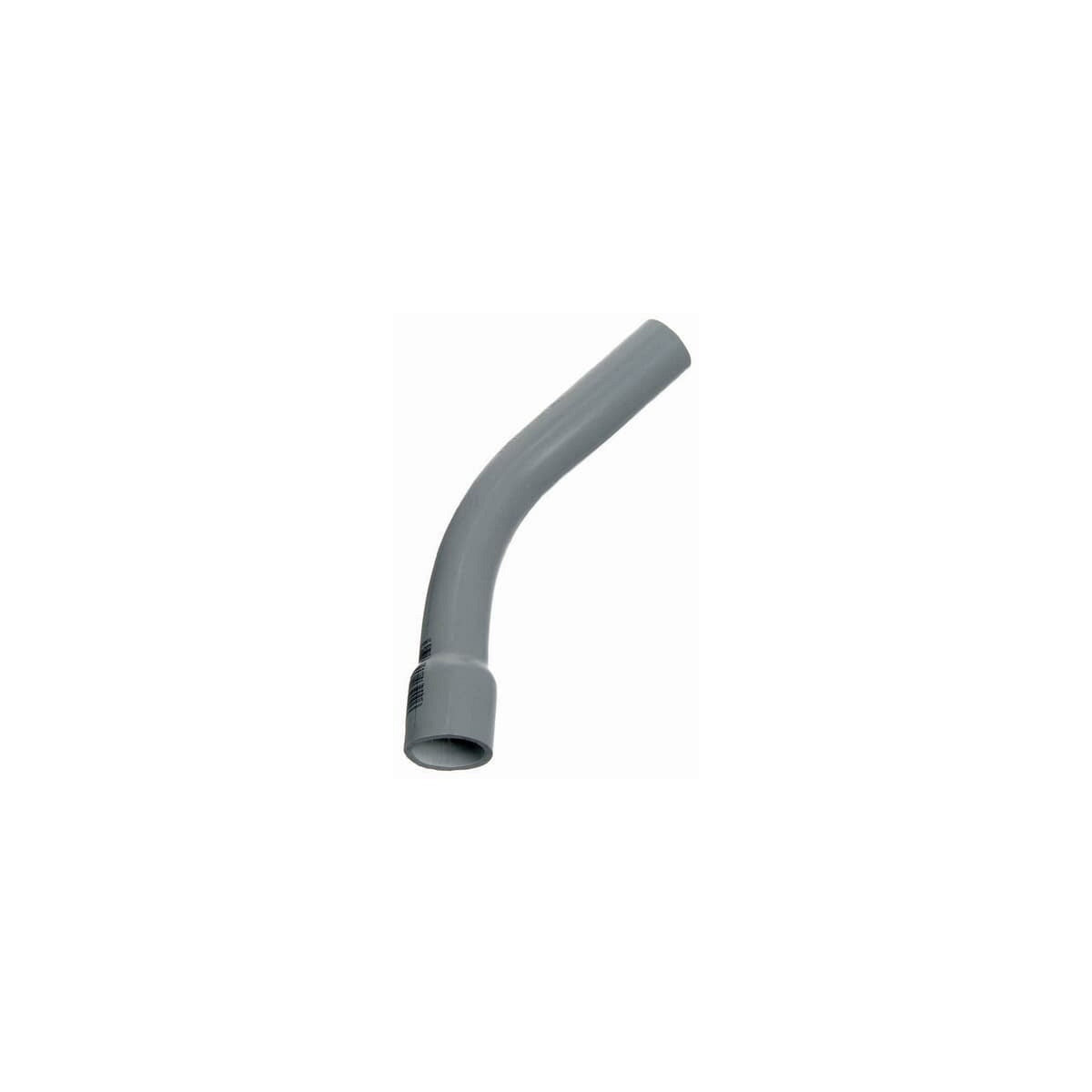

CARLON UA7AFB 1 IN SCH 40 STD 45 DEG ELBOW-BELLED PVC Conduit Fitting

The CARLON UA7AFB is a 1-inch Schedule 40 standard radius 45-degree elbow with a belled end, designed for use in rigid non-metallic conduit systems. This PVC fitting is suitable for wire and cable protection in electrical distribution and lighting solutions, offering a corrosion-resistant, lightweight, and nonconductive alternative to metallic elbows. It is manufactured to meet UL E323335 standards and is appropriate for both aboveground and underground applications as described in the National Electrical Code®.

Specifications

• Material: PVC
• Nominal Size: 1 inch
• Outside Diameter: 1.316 inches
• Bend Angle: 45 degrees
• Bend Radius: Standard
• End Type: Belled End
• Color: Gray
• Weight: 5.2 lbs
• Standards: UL E323335
• Country of Origin: United States (US)
• RoHS Status: Compliant with EU Directive 2011/65/EU and Amendment 2015/863

Features

• Lightweight non-metallic construction reduces installation time and effort
• Nonconductive material ensures electrical safety
• Corrosion resistant for long-term durability in exposed and underground environments
• Meets UL and ETL listings for quality and safety compliance
• Belled end design for easy solvent weld connections
